HA966N - Load break switch with visible breaking 4P 400A
HA966N - Load break switch with visible breaking 4P 400A
HA966N - Load break switch with visible breaking 4P 400A

Load break switch with visible breaking 4P 400A

HA966N

HA966N - Load break switch with visible breaking 4P 400A
HA966N - Load break switch with visible breaking 4P 400A
HA966N - Load break switch with visible breaking 4P 400A
  • Modular devices
  • Switching and protective devices

Load break switch with visible breaking 4P 400A HA966N

EAN
3250613119973
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • More products

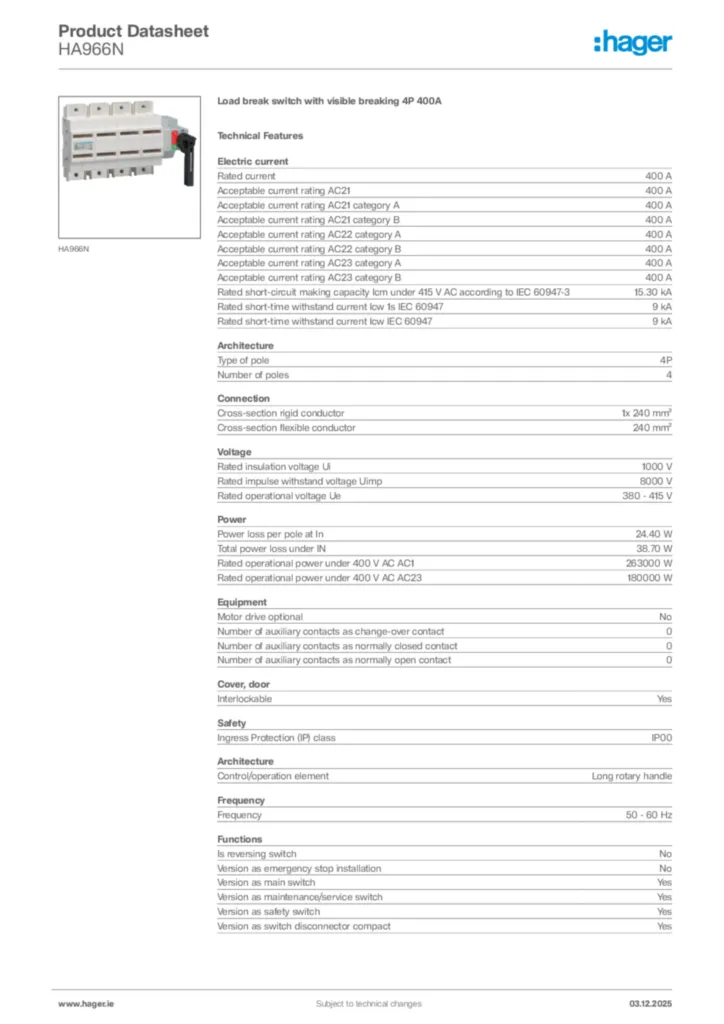

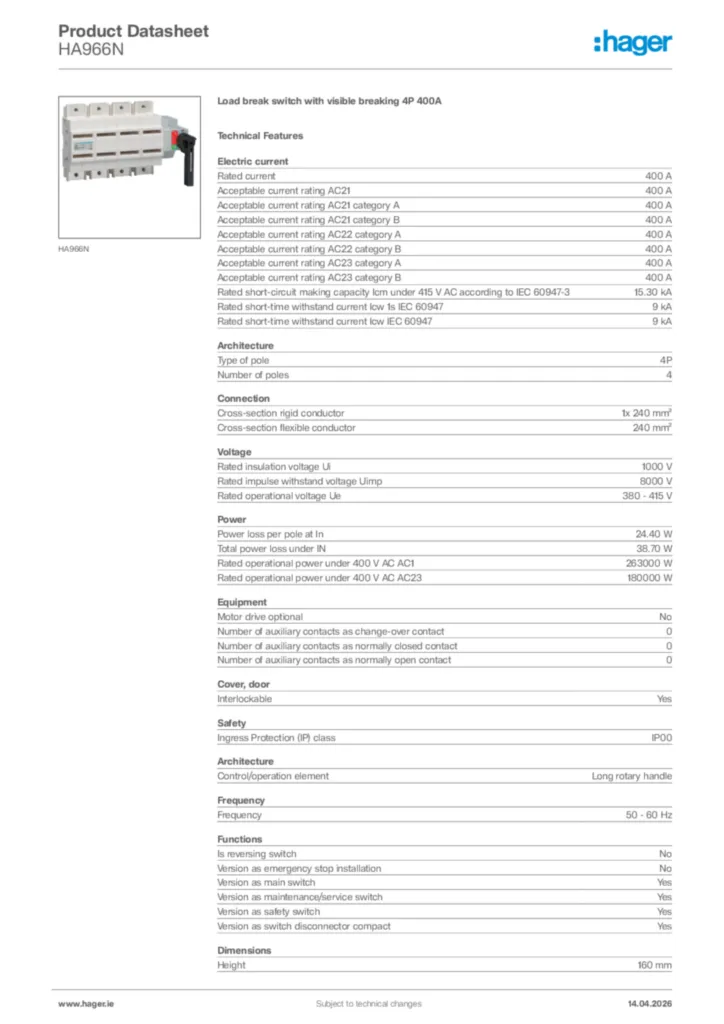

Download the data sheet

Complete your system

Optional accessories

  • Terminal cover 1 products available

Complete your system

  • Terminal cover
  • HZ096

    Terminal Shrouds for HA966N 3P

    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Elec­tric current
  • Rated current
    400 A
  • Accept­able current rating AC21
    400 A
  • Accept­able current rating AC21 category A
    400 A
  • Accept­able current rating AC21 category B
    400 A
  • Accept­able current rating AC22 category A
    400 A
  • Accept­able current rating AC22 category B
    400 A
  • Accept­able current rating AC23 category A
    400 A
  • Accept­able current rating AC23 category B
    400 A
  • Rated short-­cir­cuit making capa­city Icm under 415 V AC according to IEC 60947-3
    15.30 kA
  • Rated short-­time with­stand current Icw 1s IEC 60947
    9 kA
  • Rated short-­time with­stand current Icw IEC 60947
    9 kA
Connec­tion
  • Cross-sec­tion rigid conductor
    1x 240 mm²
  • Cross-sec­tion flex­ible conductor
    240 mm²
Voltage
  • Rated insu­la­tion voltage Ui
    1,000 V
  • Rated impulse with­stand voltage Uimp
    8,000 V
  • Rated oper­a­tional voltage Ue
    380 - 415 V
Power
  • Power loss per pole at In
    24.40 W
  • Total power loss under IN
    38.70 W
  • Rated oper­a­tional power under 400 V AC AC1
    263,000 W
  • Rated oper­a­tional power under 400 V AC AC23
    180,000 W
Equip­ment
  • Motor drive optional
    No
  • Number of auxil­iary contacts as change-over contact
    0
  • Number of auxil­iary contacts as normally closed contact
    0
  • Number of auxil­iary contacts as normally open contact
    0
Cover, door
  • Inter­lock­able
    Yes
Safety
  • Ingress Protec­tion (IP) class
    IP00
Archi­tec­ture
  • Type of pole
    4P
  • Number of poles
    4
  • Control/­op­er­a­tion element
    Long rotary handle
Frequency
  • Frequency
    50 - 60 Hz
Func­tions
  • Is reversing switch
    No
  • Version as emer­gency stop install­a­tion
    No
  • Version as main switch
    Yes
  • Version as main­ten­ance/ser­vice switch
    Yes
  • Version as safety switch
    Yes
  • Version as switch discon­nector compact
    Yes
Dimen­sions
  • Height
    160 mm
  • Width
    319 mm
  • Depth
    214 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACH conform Yes

Certifications and documents

REACH declaration HA966N (english)
PDF
103,10 kB
RoHS declaration HA966N (english)
PDF
103,59 kB
