    • HA408
    EAN
    3250613114084
    Packaging
    1 Piece

    Load break switch with visible breaking 4P 200A HA408

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    Load break switch with visible breaking 4P 200A

    HA408

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    Download the data sheet

    Complete your system

    Optional accessories

    • Switch oper­ating shaft 2 products available
    • Door coup­ling handle for switchgear 1 products available

    Complete your system

    • Switch oper­ating shaft
    • Door coup­ling handle for switchgear
    • HZC104

      Shaft extension 320 mm FCS-LBS 80-250A
      0.00 €  / *
    • HZC103

      Shaft extension 200 mm FCS-LBS 80-250A
      0.00 €  / *
    • HZC001

      Black handle FCS- LBS 20-250A
      0.00 €  / *

    Technical properties

    Elec­tric current
    • Rated current
      200 A
    • Accept­able current rating AC21
      200 A
    • Accept­able current rating AC21 category A
      200 A
    • Accept­able current rating AC21 category B
      200 A
    • Accept­able current rating AC22 category A
      200 A
    • Accept­able current rating AC22 category B
      200 A
    • Accept­able current rating AC23 category A
      200 A
    • Accept­able current rating AC23 category B
      200 A
    • Rated short-­cir­cuit making capa­city Icm under 415 V AC according to IEC 60947-3
      5.88 kA
    • Rated short-­time with­stand current Icw 1s IEC 60947
      4 kA
    • Rated short-­time with­stand current Icw IEC 60947
      4 kA
    Connec­tion
    • Cross-sec­tion rigid conductor
      95 mm²
    • Cross-sec­tion flex­ible conductor
      95 mm²
    Voltage
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated impulse with­stand voltage Uimp
      8,000 V
    • Rated oper­a­tional voltage Ue
      380 - 415 V
    Power
    • Power loss per pole at In
      5.80 W
    • Total power loss under IN
      17.40 W
    • Rated oper­a­tional power under 400 V AC AC1
      131,000 W
    • Rated oper­a­tional power under 400 V AC AC23
      90,000 W
    Equip­ment
    • Motor drive optional
      No
    • Number of auxil­iary contacts as change-over contact
      0
    • Number of auxil­iary contacts as normally closed contact
      0
    • Number of auxil­iary contacts as normally open contact
      0
    Use condi­tions
    • Oper­ating temper­ature
      -20 - 70 °C
    Cover, door
    • Inter­lock­able
      Yes
    Safety
    • Ingress Protec­tion (IP) class
      IP00
    Archi­tec­ture
    • Type of pole
      4P
    • Number of poles
      4
    • Control/­op­er­a­tion element
      Short rotary handle
    Frequency
    • Frequency
      50 - 60 Hz
    Func­tions
    • Is reversing switch
      No
    • Version as emer­gency stop install­a­tion
      No
    • Version as main switch
      Yes
    • Version as main­ten­ance/ser­vice switch
      Yes
    • Version as safety switch
      Yes
    • Version as switch discon­nector compact
      Yes
    Capa­city
    • Number of modules
      8.50
    Install­a­tion, mounting
    • Nominal tight­ening torque
      9 - 9.9 Nm
    Dimen­sions
    • Height
      82.5 mm
    • Width
      142 mm
    • Depth
      136 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Load break switch 4P 630A
    PDF
    369,67 kB
    Hager REACH declaration HA408
    PDF
    Hager RoHS report HA408
    PDF

    Downloads

    • Product image

      Image HA408 | Hager

      Product Image HA408

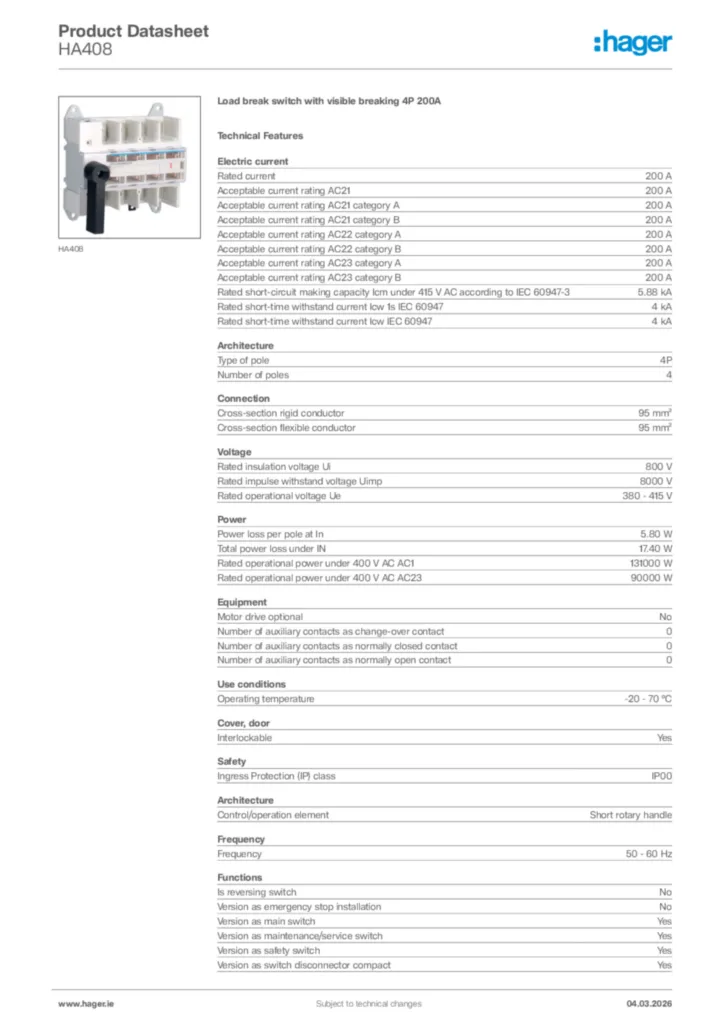

    • Product datasheet

      Image Hager Product data sheet HA408 | Hager

      Hager Product data sheet HA408

      Load break switch with visible breaking 4P 200A

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-04-13

      PDF
      777,14 kB
      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2025-11-21

      PDF
      611,04 kB
