Load break switch 3P 160A HA307

EAN
3250613113070
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.

Load break switch 3P 160A

HA307

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Complete your system

Optional accessories

  • Switch oper­ating shaft 2 products available
  • Door coup­ling handle for switchgear 1 products available

Complete your system

  • Switch oper­ating shaft
  • Door coup­ling handle for switchgear
  • HZC104

    Shaft extension 320 mm FCS-LBS 80-250A
    0.00 €  / *
  • HZC103

    Shaft extension 200 mm FCS-LBS 80-250A
    0.00 €  / *
  • HZC001

    Black handle FCS- LBS 20-250A
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    160 A
  • Accept­able current rating AC21
    160 A
  • Accept­able current rating AC21 category A
    160 A
  • Accept­able current rating AC21 category B
    160 A
  • Accept­able current rating AC22 category A
    160 A
  • Accept­able current rating AC22 category B
    160 A
  • Accept­able current rating AC23 category A
    160 A
  • Accept­able current rating AC23 category B
    160 A
  • Rated short-­cir­cuit making capa­city Icm under 415 V AC according to IEC 60947-3
    5.88 kA
  • Rated short-­time with­stand current Icw 1s IEC 60947
    4 kA
  • Rated short-­time with­stand current Icw IEC 60947
    4 kA
Connec­tion
  • Cross-sec­tion rigid conductor
    95 mm²
  • Cross-sec­tion flex­ible conductor
    95 mm²
Voltage
  • Rated insu­la­tion voltage Ui
    800 V
  • Rated impulse with­stand voltage Uimp
    8,000 V
  • Rated oper­a­tional voltage Ue
    380 - 415 V
Power
  • Power loss per pole at In
    3.30 W
  • Total power loss under IN
    9.90 W
  • Rated oper­a­tional power under 400 V AC AC1
    105,000 W
  • Rated oper­a­tional power under 400 V AC AC23
    72,000 W
Equip­ment
  • Motor drive optional
    No
  • Number of auxil­iary contacts as change-over contact
    0
  • Number of auxil­iary contacts as normally closed contact
    0
  • Number of auxil­iary contacts as normally open contact
    0
Use condi­tions
  • Oper­ating temper­ature
    -20 - 70 °C
Cover, door
  • Inter­lock­able
    Yes
Safety
  • Ingress Protec­tion (IP) class
    IP00
Archi­tec­ture
  • Type of pole
    3P
  • Number of poles
    3
  • Control/­op­er­a­tion element
    Short rotary handle
Frequency
  • Frequency
    50 - 60 Hz
Func­tions
  • Is reversing switch
    No
  • Version as emer­gency stop install­a­tion
    No
  • Version as main switch
    Yes
  • Version as main­ten­ance/ser­vice switch
    Yes
  • Version as safety switch
    Yes
  • Version as switch discon­nector compact
    Yes
Capa­city
  • Number of modules
    8.50
Install­a­tion, mounting
  • Nominal tight­ening torque
    9 - 9.9 Nm
Dimen­sions
  • Height
    82.5 mm
  • Width
    142 mm
  • Depth
    136 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Load break switch 4P 630A
PDF
369,67 kB
Hager REACH declaration HA307
PDF
Hager RoHS report HA307
PDF

Downloads

  • Product image

    Image HA307 | Hager

    Product Image HA307

  • Product datasheet

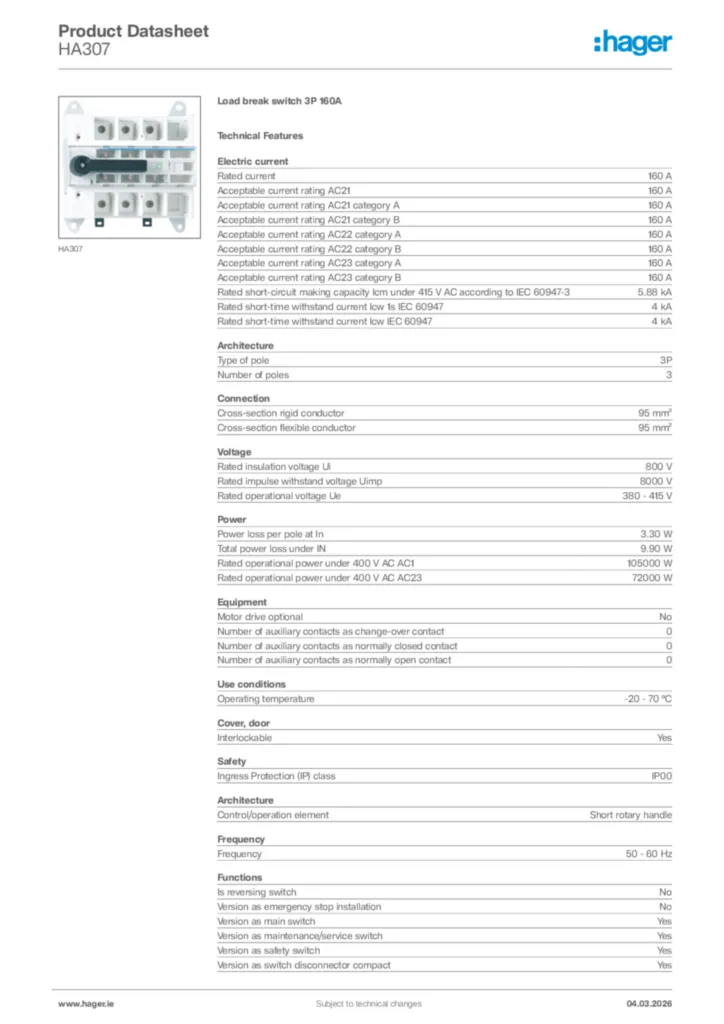

    Image Hager Product data sheet HA307 | Hager
