    • GD218A
    catalog.pageproduct.product.info.ean
    3250612845828
    catalog.pageproduct.product.info.packqty
    1 catalog.pageproduct.product_base_unit_piece.span

    Enclosure,gamma,surface mounting,36Modules, version France GD218A

    Phase out product: please contact your electrical wholesaler for availability

    catalog.product_page.follow_up.title

    VB218J

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Enclosure,gamma,surface mounting,36Modules, version France

    GD218A

    • catalog.pageproduct.productbar_accessories.link
    • catalog.pageproduct.tab_additional_title.link
    • catalog.pageproduct.title_sustainability.h2
    • catalog.pageproduct.title_documents.h2

    product.page.accessories.title

    product.page.accessories.associated-products

    • Cover strip 2 product.page.accessories.products-available
    • Lock system 1 product.page.accessories.products-available
    • Accessor­ies/s­pare parts for terminals 1 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Cover strip
    • Lock system
    • Accessor­ies/s­pare parts for terminals
    • JP015

      Cover strip, universal, 18M, RAL9010
      €0.00  / *
    • P032F

      Cover strips, universal, for 1 module
      €0.00  / *
    • GZ35A

      Key lock, gamma, for enclosure, 13-72modules
      €0.00  / *
    • GZ30A

      Terminal carrier, gamma, for Quick Connect
      €0.00  / *

    catalog.pageproduct.tab_additional_title.link

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current IN
      63 A
    Equip­ment
    • Number of rails
      2
    • Number of rows
      2
    • Number of section in width
      1
    • With lock
      catalog.pageproduct.attribute_boolean.no
    • Has mounting plate
      catalog.pageproduct.attribute_boolean.yes
    Capa­city
    • Number of modules
      36
    Dimen­sions
    • Height
      375 mm
    • Width
      355 mm
    • Depth
      103 mm
    • Number of width units
      18
    Cover, door
    • Number of cabinet doors
      0
    • Number of locks
      0
    • Door/­cover is trans­parent
      catalog.pageproduct.attribute_boolean.no
    Mater­ials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Without lock
    • Glow wire test
      850 °C
    • Protec­tion class with door
      IP40

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link

    RoHS conform Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - ENCLOSURE SURFACE GAMMA 26 M (English )
    PDF
    25,24 MB
    REACH declaration GD218A
    PDF
    RoHS report GD218A
    PDF

    catalog.pageproduct.title_asset.h2

    • Product image

      catalog.pagelevel.alt_image.img

      catalog.pageproduct.title_product_image.div GD218A

    • GeneratedProductDatasheet

      catalog.pagelevel.alt_image.img

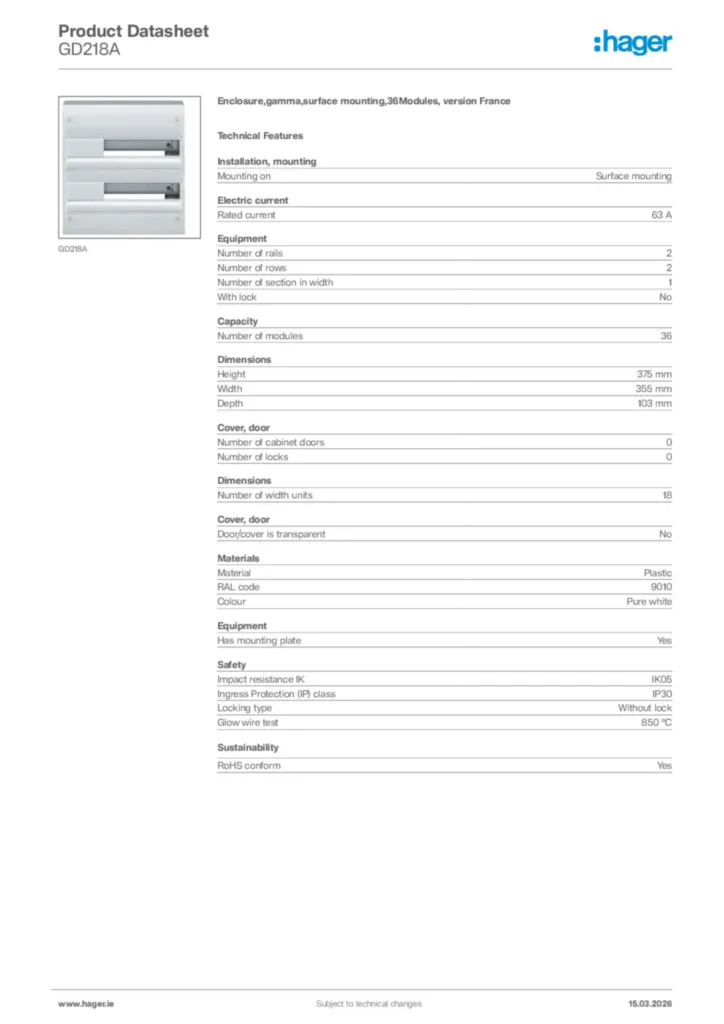

      Hager Product data sheet GD218A

      Enclosure,gamma,surface mounting,36Modules, version France

      PDF

    • ProductInstallationManual

      catalog.pagelevel.alt_image.img

      Installation manual International 2015-07-13

      Installation manual International 2022-03-21

      PDF
      3,95 MB

    • ProductBimModels

      catalog.pagelevel.alt_image.img

      Range:GAMMA-Enclosures_Surface_mounted-IP30-Without_Cover-With_DIN-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,16 MB
      catalog.pagelevel.alt_image.img

      Range:GAMMA-Enclosures_Surface_mounted-IP30-Without_Cover-With_DIN-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,16 MB

    • ProductECDeclaration

      catalog.pagelevel.alt_image.img

      Declaration of conformity en-GB 2025-10-24

      PDF
      363,16 kB
      catalog.pagelevel.alt_image.img

      Declaration of conformity en-GB 2026-07-22

      PDF
      265,00 kB
