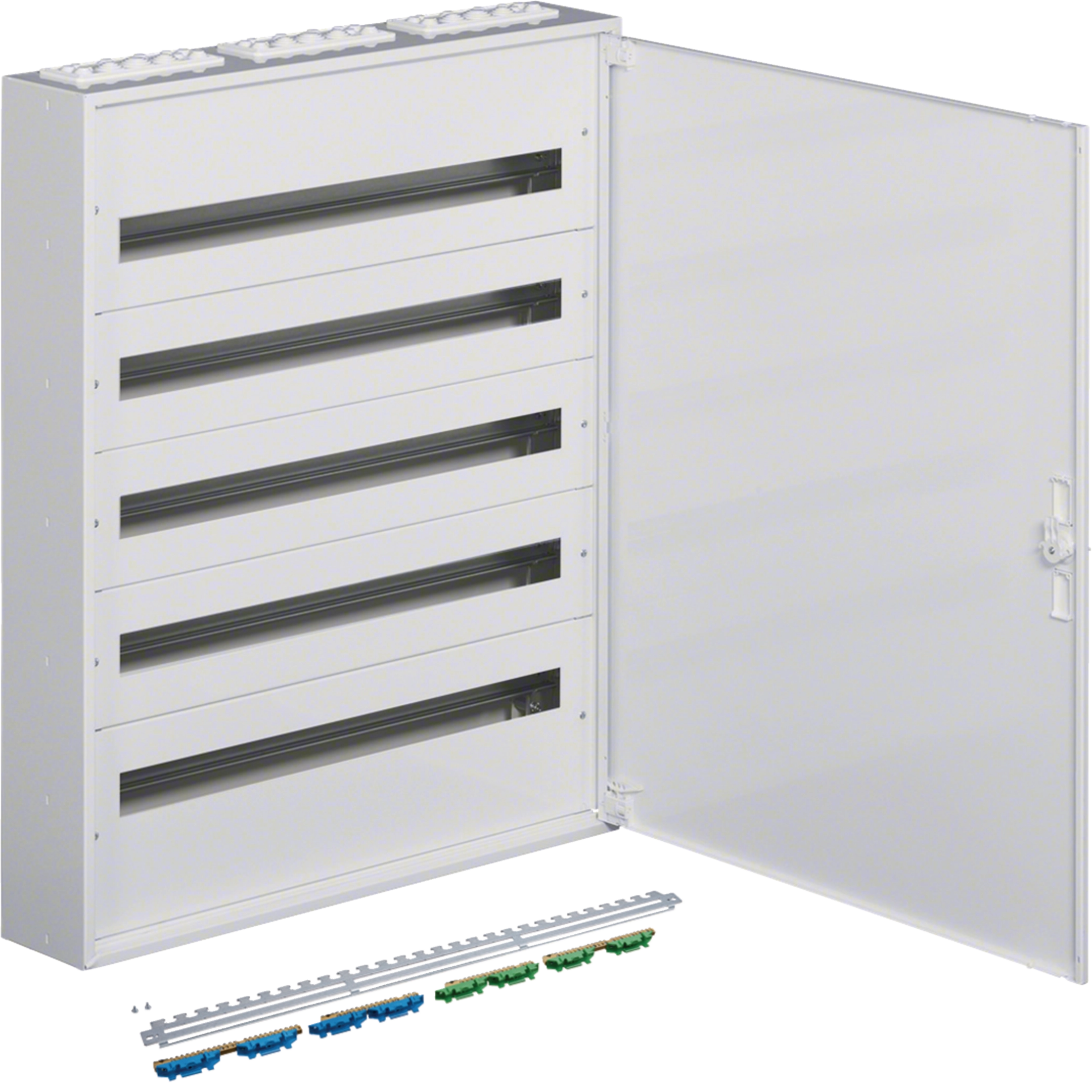

Surface encl. FW2, IP30, class I, with door and brass terminals, 5x36 modules FW536WT
EAN
3250614301018
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Lock system 1 products available -
Components for wiring, cable entry and cable fixing 1 products available
Technical properties
Connection
-
Number of conduit inlets3
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current125 A
Equipment
-
Number of rows5
-
Number of section in width3
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules180
Dimensions
-
Height941 mm
-
Width787 mm
-
Depth150 mm
-
Number of width units36
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK08
-
Ingress Protection (IP) classIP30
-
Locking typeKey lock, Without lock
