            FP25TN2 - Enclosure, univers, IP44,Protecion class 1, 1950x1300x205mm, empty
            FP25TN2 - Enclosure, univers, IP44,Protecion class 1, 1950x1300x205mm, empty

            Enclosure, univers, IP44,Protecion class 1, 1950x1300x205mm, empty

            FP25TN2

            FP25TN2 - Enclosure, univers, IP44,Protecion class 1, 1950x1300x205mm, empty
            FP25TN2 - Enclosure, univers, IP44,Protecion class 1, 1950x1300x205mm, empty
            • Distri­bu­tion systems

            Enclosure, univers, IP44,Protecion class 1, 1950x1300x205mm, empty FP25TN2

            EAN
            3250612672479
            Packaging
            1 Piece

            You have to log in with your myHager profile to see prices and to order.

            Add to a list
            Add to a list

            Login to create a product list

            You need to be logged into your myHager account to create product lists

            Create an account Sign in
            • Accessories
            • Technical properties
            • Environmental value
            • Documentations
            • More products

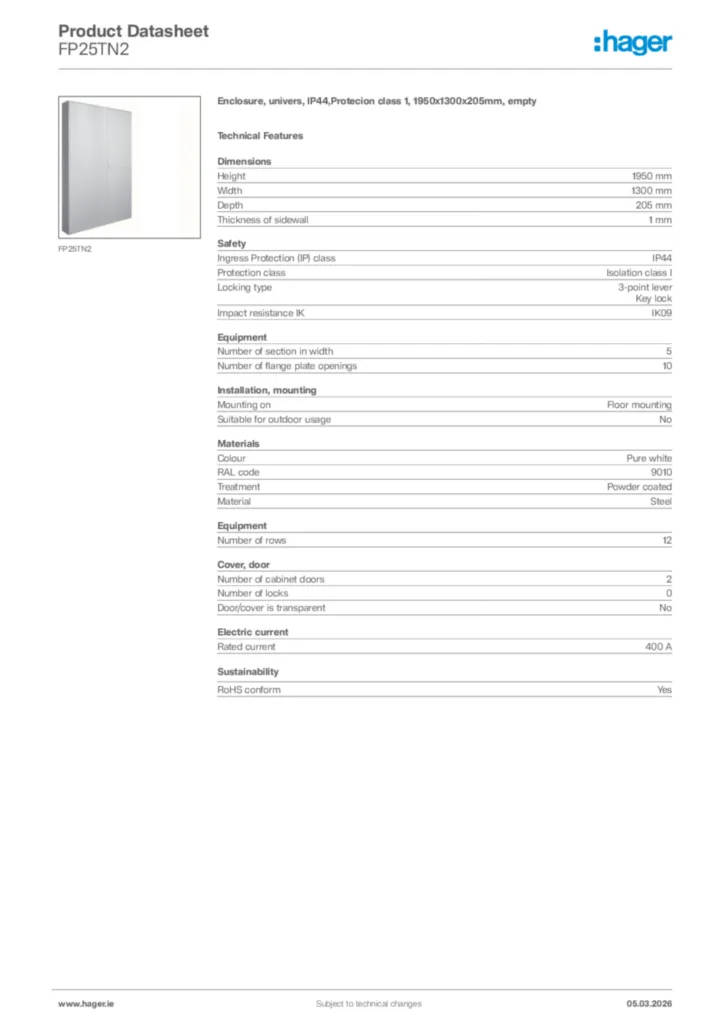

            Download the data sheet

            Complete your system

            Optional accessories

            • Gland plate for enclosure 3 products available
            • Heater for enclosure 2 products available
            • Ther­mo­stat/hy­gro­stat (switchgear cabinet) 1 products available
            • Lock system 7 products available
            • Touch-up stick 2 products available
            • See more 20 other products available

            Complete your system

            • Gland plate for enclosure
            • Heater for enclosure
            • Ther­mo­stat/hy­gro­stat (switchgear cabinet)
            • Lock system
            • Touch-up stick
            • Cable gland
            • Accessor­ies/s­pare parts for earthing and light­ning
            • Compon­ents for wiring, cable entry and cable fixing
            • Docu­ment holder
            • Compon­ents for arrange­ment/baying system
            • Mounting accessories
            • DIN rail
            • FZ425

              Cable entry plate,univers, for sealed area, with cut-outs, IP44/54

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ426

              Cable entry plate,univers, for not sealed area, for perforation, IP44/54

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ428

              Cable entry plate,univers, for enclosure IP44 / IP54, back side, D160 / 205 mm

              0.00 €  / *
              Add to a list
              Add to a list
            • FL252Z

              Heaters, quadro.system, 15 W 230 V AC/DC

              0.00 €  / *
              Add to a list
              Add to a list
            • FL253Z

              Heaters, quadro.system, 30 W 230 V AC/DC

              0.00 €  / *
              Add to a list
              Add to a list
            • FL258Z

              Thermostat, quadro.system, 10 A 230 V AC

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ449N

              Lock, univers, double-bit, 3mm, with 1 key, for enclosure IP44/54

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ450N

              Lock, univers, triangular 7mm, with 1 key, for enclosure IP44/54

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ451N

              Lock, univers, square 7mm, with 1 key, for enclosure IP44/54

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ531N

              Lock,univers, knob handle, cylinder Nr.1333, with 2 keys, for encl. IP44/IP54

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ533N

              Lock,univers, pawl rod handle, with lock-Nr.1333, with 2 keys, IP44/IP54

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ597N

              Lock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ598N

              Door shield with handle, for enclosure univers IP44

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ792N

              Color spray, 150ml RAL 9010

              0.00 €  / *
              Add to a list
              Add to a list
            • MES-LSTI7035

              Touch-up stick prepared 12ml RAL7035

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ850M

              Cable gland, M50, with counter nut, for lateral cable insert

              0.00 €  / *
              Add to a list
              Add to a list
            • UZ009

              PE cable,universN,25mm², 300mm, both cable shoe 6mm / 8mm

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ365N

              Flexible adapter,univers, for lateral connection of FP to cable spreader box

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ460NT

              Cable entry plate,univers,CL1,IP44/54,6xM16,2xM20,2xM16/25,1xM25/40/50

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ466NT

              Cable entry plate,univers, CL 1, IP44/54 15 x M16 and 4 x M20 precuts

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ468NT

              Cable entry plate, univers, CL 1, IP44/54, without precuts

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ850S

              Cable strain relief rail, univers, 1 section, C-profile 30x15x100mm, slot 16mm

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ707

              Document holder, metal, with screws for door mounting

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ757A4

              Document holder, glued, DIN A4

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ757A5

              Document holder, adhesive, DIN A5

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ757M

              Document holder, magnetic, DIN A4

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ794

              Document holder, transparent, DIN A4, adhesive

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ818

              Document holder, plastic, DIN A4, adhesive

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ737B

              Connection set, univers Z, for enclosure connection IP44/54 horizontal

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ890N

              Wall fixation rail, univers, 2m, for enclosure IP44 / IP54

              0.00 €  / *
              Add to a list
              Add to a list
            • FZ803B

              Mounting brackets, univers, for enclosure IP44/IP54, outside

              0.00 €  / *
              Add to a list
              Add to a list
            • UT90G

              Carrier rail, universN, simple

              0.00 €  / *
              Add to a list
              Add to a list
            • U82A

              DIN rail,univers, 7,5 mm, depth-adjustable until 32,5mm, 11 modules wide (200mm)

              0.00 €  / *
              Add to a list
              Add to a list
            • UN02A

              Carrier rails, univers,for enclosures ex depth = 160mm, L = 300mm, 2 pieces

              0.00 €  / *
              Add to a list
              Add to a list
            • UN06A

              Carrier rails, univers,for enclosures ex depth = 160mm, L = 900mm, 2 pieces

              0.00 €  / *
              Add to a list
              Add to a list

            Technical properties

            Dimen­sions
            • Height
              1,950 mm
            • Width
              1,300 mm
            • Depth
              205 mm
            • Thick­ness of side­wall
              1 mm
            Safety
            • Ingress Protec­tion (IP) class
              IP44
            • Protec­tion class
              Isol­a­tion class I
            • Locking type
              3-point lever, Key lock
            • Impact resist­ance IK
              IK09
            Equip­ment
            • Number of section in width
              5
            • Number of flange plate open­ings
              10
            • Number of rows
              12
            Install­a­tion, mounting
            • Mounting on
              Floor mounting
            • Suit­able for outdoor usage
              No
            Mater­ials
            • Colour
              Pure white
            • RAL code
              9010
            • Treat­ment
              Powder coated
            • Material
              Steel
            Cover, door
            • Number of cabinet doors
              2
            • Number of locks
              0
            • Door/­cover is trans­parent
              No
            Elec­tric current
            • Rated current
              400 A

            Environmental value

            We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

            RoHS conform Yes

            Certifications and documents

            PEP - Enclosures FWP, univers, IP44, SKII, 120PLE (english)
            PDF
            8,50 MB
            REACH declaration FP25TN2 (english)
            PDF
            103,10 kB
            RoHS declaration FP25TN2 (english)
            PDF
            103,84 kB

            Downloads

            • Product image

              Image FP25TN2  | Hager

              Product Image FP25TN2

            • Declaration of conformity

              Image EU Declaration of Conformity  | Hager

              EU Declaration of Conformity

              Declaration of conformity en-GB 2025-03-14

              PDF
              684,89 kB
              Image EU Declaration of Conformity  | Hager

              EU Declaration of Conformity

              Declaration of conformity en-GB 2025-03-14

              PDF
              717,48 kB
            More documentation

            Discover more of this product range

              5
            • 1
              FP21TN2 - Enclosure, univers, IP44,Protecion class1, 1950x300x205mm, empty
              FP21TN2
              Enclosure, univers, IP44, Protecion class1, 1950x300x205mm, empty
            • 2
              FP22TN2 - Enclosure, univers, IP44,Protecion class1, 1950x550x205mm, empty
              FP22TN2
              Enclosure, univers, IP44, Protecion class1, 1950x550x205mm, empty
            • 3
              FP23TN2 - Enclosure, univers, IP44,Protecion class1, 1950x800x205mm, empty
              FP23TN2
              Enclosure, univers, IP44, Protecion class1, 1950x800x205mm, empty
            • 4
              FP24TN2 - Enclosure, univers, IP44,Protecion class 1, 1950x1050x205mm, empty
              FP24TN2
              Enclosure, univers, IP44, Protecion class 1, 1950x1050x205mm, empty
            • 5
              FR11E1 - Steel enclosure, Univers, IP55, CL1, 1700x300x275 mm, plinth H100 mm
              FR11E1
              Steel enclosure, Univers, IP55, CL1, 1700x300x275 mm, plinth H100 mm

            Products

            • Commercial Distribution
            • Modular Devices and Connection
            • Lighting Connection and Control
            • Residential Distribution
            • Wiring Accessories
            • References

            Solutions

            • Single house
            • Multi-residential
            • Office
            • Hotel
            • Other

            Support

            • FAQs
            • Contact us
            • Catalogues
            • Download center
            • Training
            • How-to videos

            Who we are

            We deliver safe and simple electrical solutions, from energy distribution to lighting control and wiring accessories systems for commercial and residential buildings. We want to make life on our planet safer, cleaner and more enjoyable. While being easy to work with, we remain by your side throughout the entire project, cooperating, collaborating and co-creating with you.



            More about us

            Fol­low us

              • Privacy
              • Cookies
              • Report a vulnerability
              • Hagergroup

            Hager Ltd, Unit M2 Furry Park Industrial Estate, Santry, Dublin D09 NY19, Ireland
