Enclosure, univers, IP44,Protecion class1, 1950x300x205mm, empty FP21TN2

EAN
3250612668939
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Enclosure, univers, IP44,Protecion class1, 1950x300x205mm, empty

FP21TN2

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (32)
    • Mounting accessories 2 products available
    • Ther­mo­stat/hy­gro­stat (switchgear cabinet) 1 products available
    • Heater for enclosure 2 products available
    • Touch-up stick 1 products available
    • Compon­ents for arrange­ment/baying system 5 products available
    • Gland plate for enclosure 1 products available

    Complete your system

    • Mounting accessories
    • Ther­mo­stat/hy­gro­stat (switchgear cabinet)
    • Heater for enclosure
    • Touch-up stick
    • Compon­ents for arrange­ment/baying system
    • Gland plate for enclosure
    • Compon­ents for wiring, cable entry and cable fixing
    • Lock system
    • Docu­ment holder
    • Earthing rail for distri­bu­tion board
    • DIN rail
    • UT90G

      Carrier rail, universN, simple

      0.00 €  / *
    • FZ803B

      Mounting brackets, univers, for enclosure IP44/IP54, outside

      0.00 €  / *
    • FL258Z

      Thermostat, quadro.system, 10 A 230 V AC

      0.00 €  / *
    • FL252Z

      Heaters, quadro.system, 15 W 230 V AC/DC

      0.00 €  / *
    • FL253Z

      Heaters, quadro.system, 30 W 230 V AC/DC

      0.00 €  / *
    • MES-LSTI7035

      Touch-up stick prepared 12ml RAL7035

      0.00 €  / *
    • FZ737S

      Adapter set, univers, horizontal, for IP44/54, depth 160/205 mm, Quickset

      0.00 €  / *
    • FZ441S

      Associaton kit univers, vertical, for enclosures 1-section D:160/205mm, Quickset

      0.00 €  / *
    • FZ737B

      Connection set, univers Z, for enclosure connection IP44/54 horizontal

      0.00 €  / *
    • FZ890N

      Wall fixation rail, univers, 2m, for enclosure IP44 / IP54

      0.00 €  / *
    • FZ441B

      Associaton kit univers, vertical, for enclosures 1-section D:160/205mm

      0.00 €  / *
    • FZ428

      Cable entry plate, univers, for enclosure IP44 / IP54, back side, D160 / 205 mm

      0.00 €  / *
    • FZ460NT

      Cable entry plate, univers, CL1, IP44/54, 6xM16, 2xM20, 2xM16/25, 1xM25/40/50

      0.00 €  / *
    • FZ466NT

      Cable entry plate, univers, CL 1, IP44/54 15 x M16 and 4 x M20 precuts

      0.00 €  / *
    • FZ468NT

      Cable entry plate, univers, CL 1, IP44/54, without precuts

      0.00 €  / *
    • FZ365N

      Flexible adapter, univers, for lateral connection of FP to cable spreader box

      0.00 €  / *
    • FZ850S

      Cable strain relief rail, univers, 1 section, C-profile 30x15x100mm, slot 16mm

      0.00 €  / *
    • FZ451N

      Lock, univers, square 7mm, with 1 key, for enclosure IP44/54

      0.00 €  / *
    • FZ450N

      Lock, univers, triangular 7mm, with 1 key, for enclosure IP44/54

      0.00 €  / *
    • FZ449N

      Lock, univers, double-bit, 3mm, with 1 key, for enclosure IP44/54

      0.00 €  / *
    • FZ597N

      Lock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54

      0.00 €  / *
    • FZ598N

      Door shield with handle, for enclosure univers IP44

      0.00 €  / *
    • FZ531N

      Lock, univers, knob handle, cylinder Nr.1333, with 2 keys, for encl. IP44/IP54

      0.00 €  / *
    • FZ533N

      Lock, univers, pawl rod handle, with lock-Nr.1333, with 2 keys, IP44/IP54

      0.00 €  / *
    • FZ757M

      Document holder, magnetic, DIN A4

      0.00 €  / *
    • FZ757A5

      Document holder, adhesive, DIN A5

      0.00 €  / *
    • FZ757A4

      Document holder, glued, DIN A4

      0.00 €  / *
    • UZ010

      PE bus-bar, universN, Cu 20x5mm, 1 section

      0.00 €  / *
    • UN12A

      Carrier rails, univers, for enclosures ex depth = 160mm, L = 1800mm, 2 pieces

      0.00 €  / *
    • UN06A

      Carrier rails, univers, for enclosures ex depth = 160mm, L = 900mm, 2 pieces

      0.00 €  / *
    • UN02A

      Carrier rails, univers, for enclosures ex depth = 160mm, L = 300mm, 2 pieces

      0.00 €  / *
    • U82A

      DIN rail, univers, 7, 5 mm, depth-adjustable until 32, 5mm, 11 modules wide (200mm)

      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      1,950 mm
    • Width
      300 mm
    • Depth
      205 mm
    • Thick­ness of side­wall
      1 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP44
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK09
    Equip­ment
    • Number of section in width
      1
    • Number of flange plate open­ings
      2
    • Number of rows
      12
    Install­a­tion, mounting
    • Mounting on
      Floor mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Pure white
    • RAL code
      9010
    • Treat­ment
      Powder coated
    • Material
      Steel
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      1
    • Door/­cover is trans­parent
      No
    Elec­tric current
    • Rated current
      250 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    FWB enclosure,UNIVERS range, 5-rows 180 modules
    PDF
    49,47 MB
    Hager REACH declaration FP21TN2
    PDF
    Hager RoHS report FP21TN2
    PDF

    Downloads

    • Product image

      Image FP21TN2  | Hager

      Product Image FP21TN2

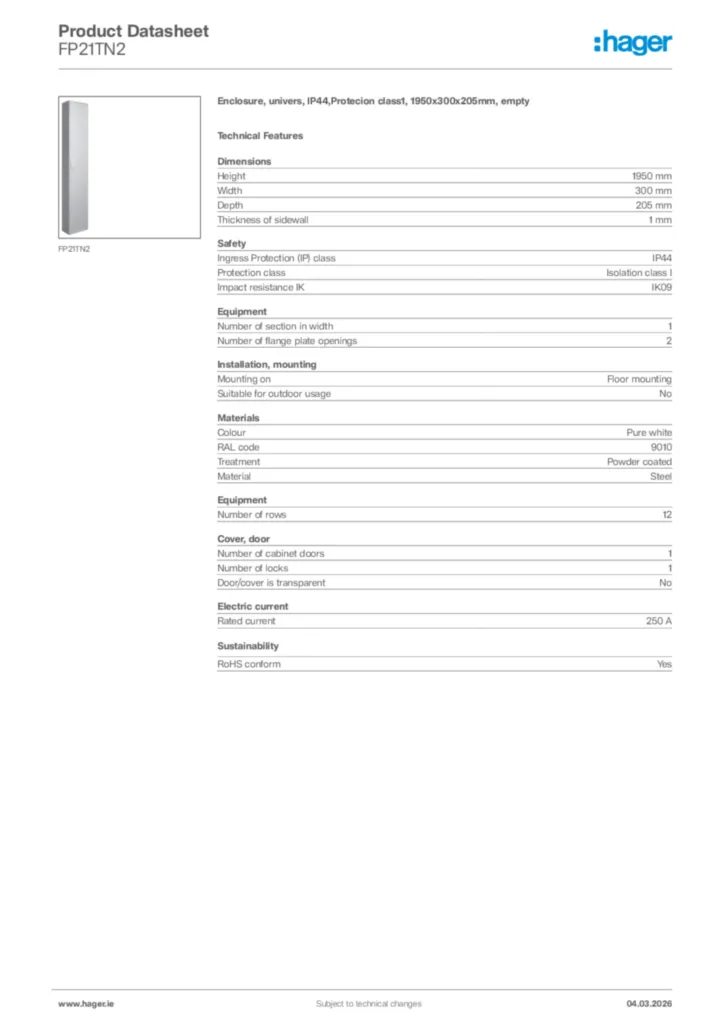

    • Product datasheet

      Image Hager Product data sheet FP21TN2  | Hager

      Hager Product data sheet FP21TN2

      Enclosure, univers, IP44,Protecion class1, 1950x300x205mm, empty

      PDF
    • Declaration of conformity

      Image EU Declaration of Conformity  | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2025-03-14

      PDF
      684,89 kB
      Image EU Declaration of Conformity  | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2025-03-14

      PDF
      717,48 kB
