enclosure, univers, IP65, CL 2, 550 x 300 x 200mm, Polyester FL31S

EAN
3250612550210
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

enclosure, univers, IP65, CL 2, 550 x 300 x 200mm, Polyester

FL31S

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (14)
    • Vent­il­a­tion plate 5 products available
    • Lock system 2 products available
    • Mounting accessories 1 products available
    • Accessor­ies/s­pare parts for earthing and light­ning 1 products available
    • Insert for lock system 1 products available
    • DIN rail 1 products available

    Complete your system

    • Vent­il­a­tion plate
    • Lock system
    • Mounting accessories
    • Accessor­ies/s­pare parts for earthing and light­ning
    • Insert for lock system
    • DIN rail
    • Docu­ment holder
    • FL236Z

      Fan filter, quadro.system, 67 W 325x325 mm
      0.00 €  / *
    • FL234Z

      Fan filter, quadro.system, 32 W 250x250 mm
      0.00 €  / *
    • FL230Z

      Fan filter, quadro.system, 20 W 150x150 mm
      0.00 €  / *
    • FL226Z

      Air grill, quadro.system, 325x325 mm IP54
      0.00 €  / *
    • FL224Z

      Air grill, quadro.system, 250x250 mm IP54
      0.00 €  / *
    • FZ502

      Lock, univers, triangular 7mm, with 1 key
      0.00 €  / *
    • FZ507

      Lock, univers, T-handle with cylinder Nr.E1242, with 2 keys, IP 5-6, sealable
      0.00 €  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      0.00 €  / *
    • FL874A

      Ground wire kit, Orion.Plus
      0.00 €  / *
    • FZ517

      Key lock insert, Quadro5, 6 mm
      0.00 €  / *
    • U82A

      DIN rail, univers, 7, 5 mm, depth-adjustable until 32, 5mm, 11 modules wide (200mm)
      0.00 €  / *
    • FZ757M

      Document holder, magnetic, DIN A4
      0.00 €  / *
    • FZ757A5

      Document holder, adhesive, DIN A5
      0.00 €  / *
    • FZ757A4

      Document holder, glued, DIN A4
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      550 mm
    • Width
      300 mm
    • Depth
      300 mm
    • Thick­ness of side­wall
      2 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      3-point lever, 4-side 8 mm
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of section in width
      1
    • Number of flange plate open­ings
      0
    • Number of rows
      3
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      Yes
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Varnished
    • Material
      Glass rein­forced poly­ester
    • Surface finish
      Matt
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      1
    • Door/­cover is trans­parent
      No
    Elec­tric current
    • Rated current
      400 A
    Voltage
    • Nominal voltage
      230 - 400 V

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    Halogen free Yes

    Certifications and documents

    Poly. enc., Pedro, pl. d. 500x430x210mm
    PDF
    4,33 MB
    Hager REACH declaration FL31S
    PDF
    Hager RoHS report FL31S
    PDF

    Downloads

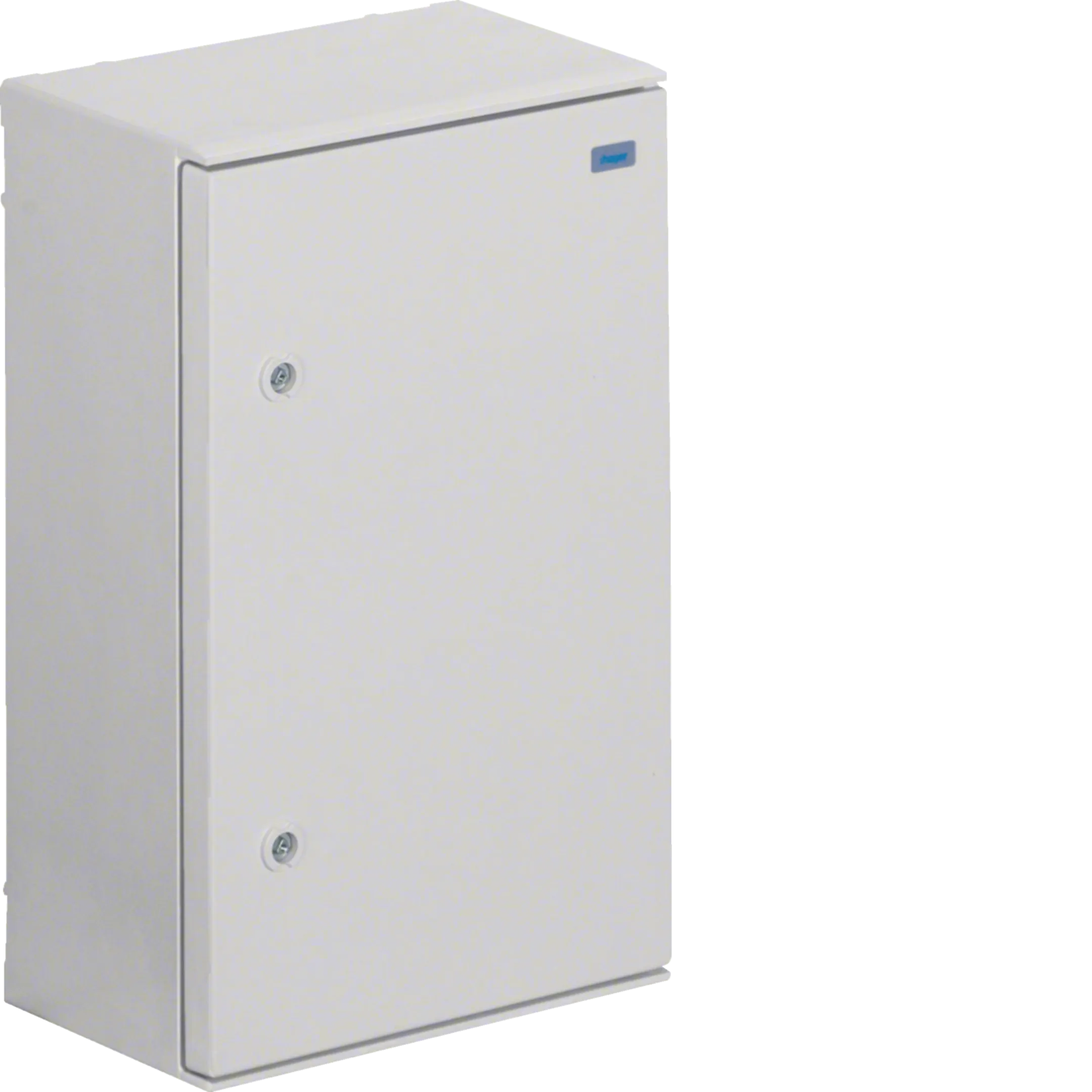

    • Product image

      Image FL31S | Hager

      Product Image FL31S

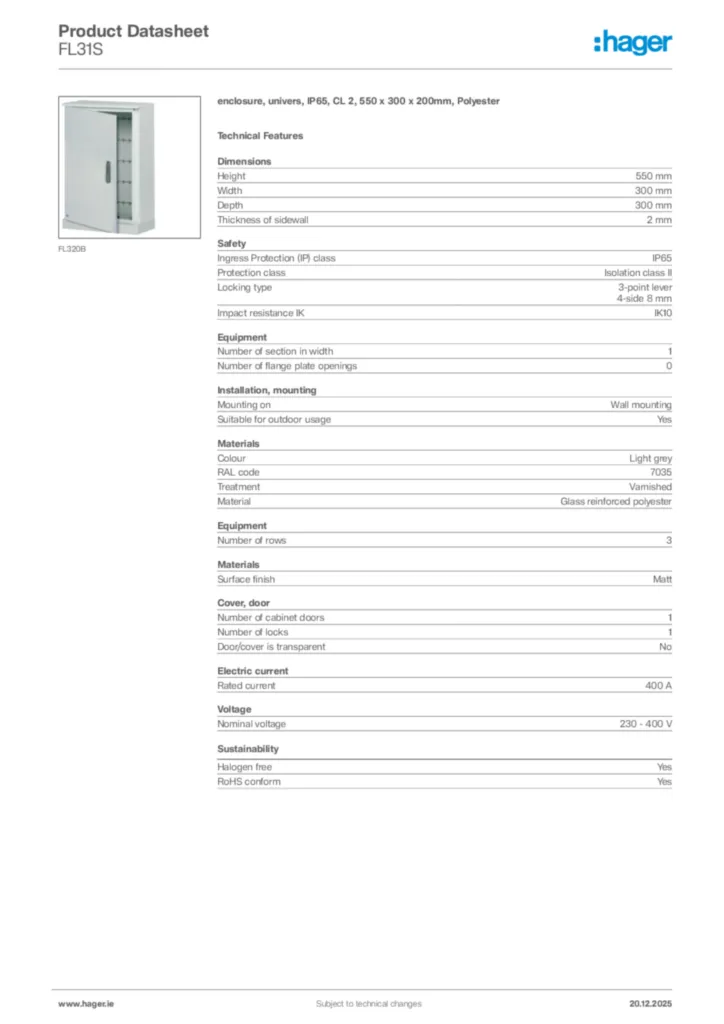

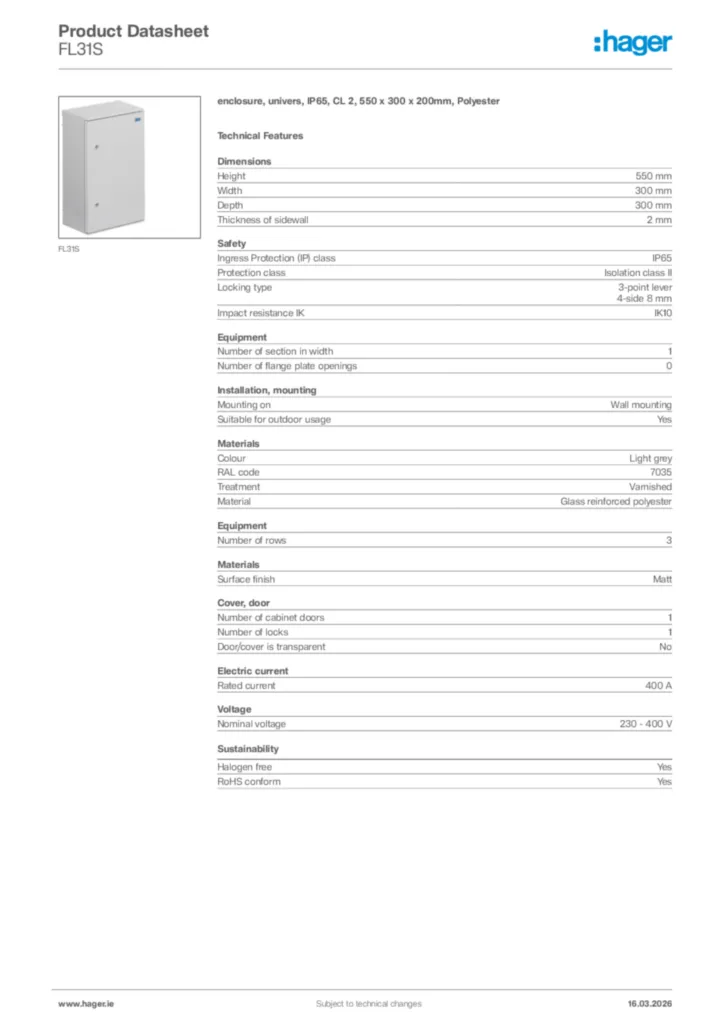

    • Product datasheet

      Image Hager Product data sheet FL31S | Hager

      Hager Product data sheet FL31S

      enclosure, univers, IP65, CL 2, 550 x 300 x 200mm, Polyester

      PDF

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2025-03-14

      PDF
      684,89 kB
      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2025-03-14

      PDF
      717,48 kB
