Emergency light tester time relay 230V AC EZL100
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
catalog.pageproduct.tab_additional_title.link
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-25 - 55 °C
-
Storage/transport temperature-25 - 70 °C
Connection
-
Cross-section flexible conductor0.5 - 2.5 mm²
-
Cross-section rigid conductor0.5 - 2.5 mm²
-
Number of contacts1
-
Type of contacts1x changeover
Capacity
-
Number of modules1
Dimensions
-
Height87 mm
-
Width17.50 mm
-
Depth65 mm
Electric current
-
Acceptable current rating AC18 A
Equipment
-
Number of NC contacts0
-
Number of NO contacts1
-
Switch off delaycatalog.pageproduct.attribute_boolean.no
-
Switch on delaycatalog.pageproduct.attribute_boolean.no
Settings
-
Time delay10 Min - 180 Min
Voltage
-
Command voltage for 50 Hz230 - 230 V
-
Command voltage for 60 Hz230 - 230 V
-
Type voltage supplyAC
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link
catalog.pageproduct.sustainability_block.downloads_h3
catalog.pageproduct.title_asset.h2
-
Product image
-
GeneratedProductDatasheet

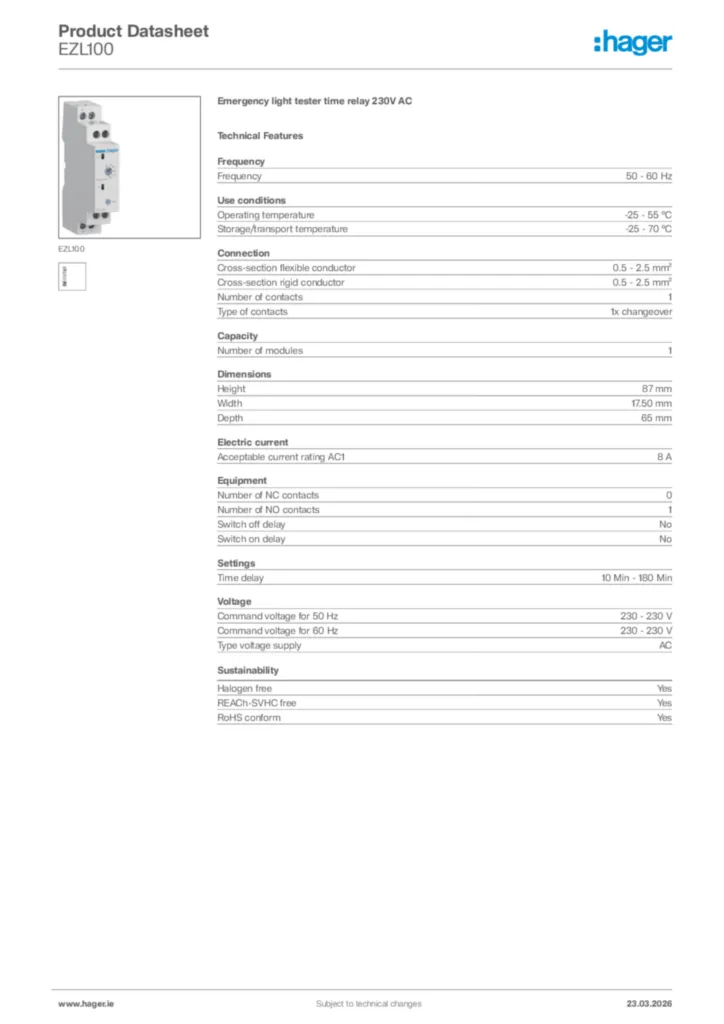

Hager Product data sheet EZL100
