Latching relay 2NC+2NO 24V EPN528
EAN
3250612369461
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.
Complete your system
Optional accessories
-
Auxiliary device for distribution board devices 2 products available
Complete your system
Technical properties
Electric current
-
Rated current16 A
-
Quiescent current6 mA
-
Acceptable current rating AC116 A
Capacity
-
Number of modules2
Connection
-
Type of contacts2NC+2NO
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1.5 - 10 mm²
-
Number of contacts2
Voltage
-
Command voltage AC24 - 24 V
-
Command voltage DC12 - 12 V
-
Command voltage 212 - 12 V
-
Command voltage 124 - 24 V
-
Rated insulation voltage Ui400 V
-
Rated operational voltage Ue250 - 400 V
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-5 - 40 °C
-
Storage/transport temperature-40 - 80 °C
Connectivity
-
Type of connectionScrew terminal
Power
-
Total power loss under IN2.40 W
-
Inrush power absorbed55 VA
Dimensions
-
Height83 mm
-
Width35 mm
-
Depth63 mm
Lighting
-
Max. load fluorescent lamp800 VA
-
Max. load fluorescent lamp parallel compensated900 VA
Equipment
-
Number of NO contacts2
-
Number of NC contacts2
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-

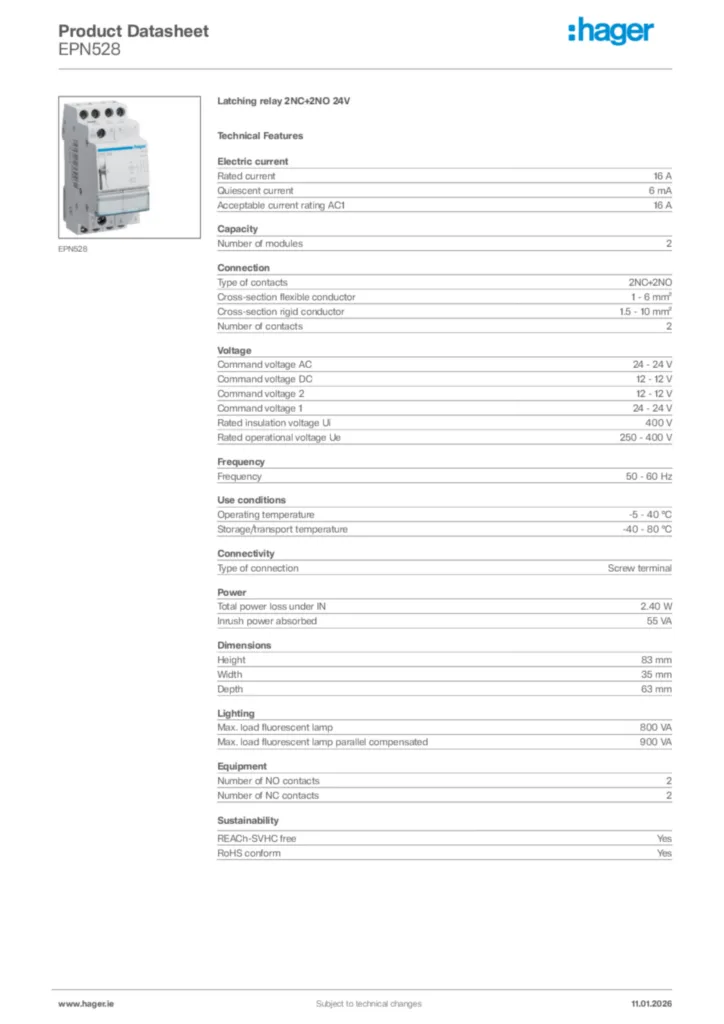

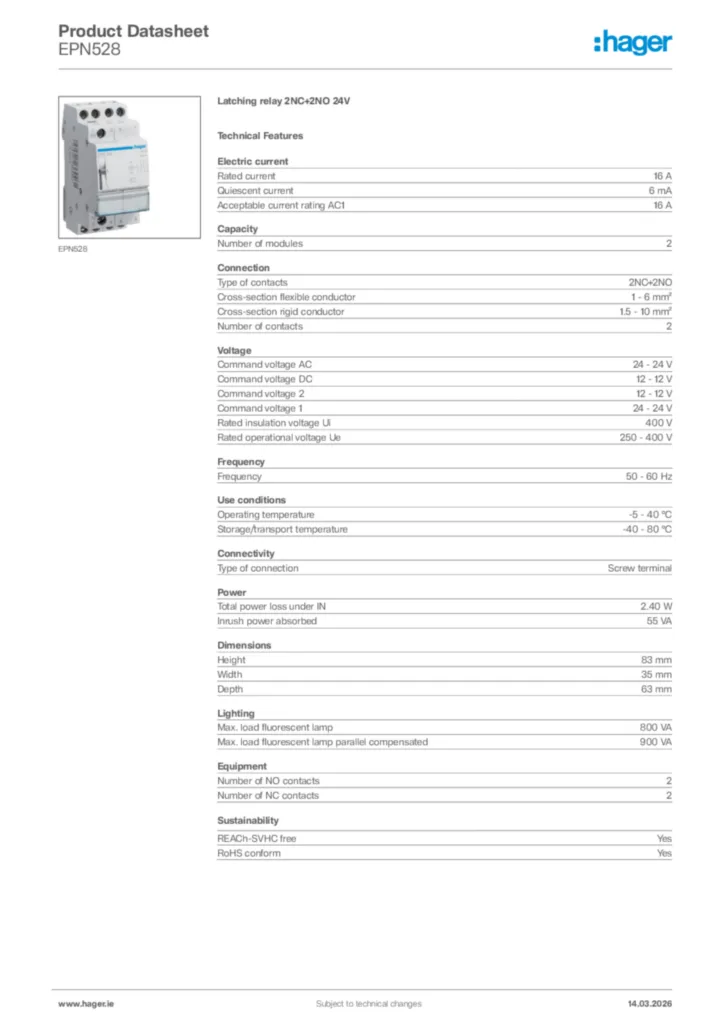

Product datasheet
Hager Product data sheet EPN528
Latching relay 2NC+2NO 24V
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2020-09-10
PDF262,84 kB
