            Latching relay 1NO 24V EPN513

            EAN
            3250612369584
            Packaging
            1 Piece

            You have to log in with your myHager profile to see prices and to order.

            Add to a list
            Add to a list

            Login to create a product list

            You need to be logged into your myHager account to create product lists

            Create an account Sign in
            • Accessories
            • Technical properties
            • Environmental value
            • Documentations
            • More products

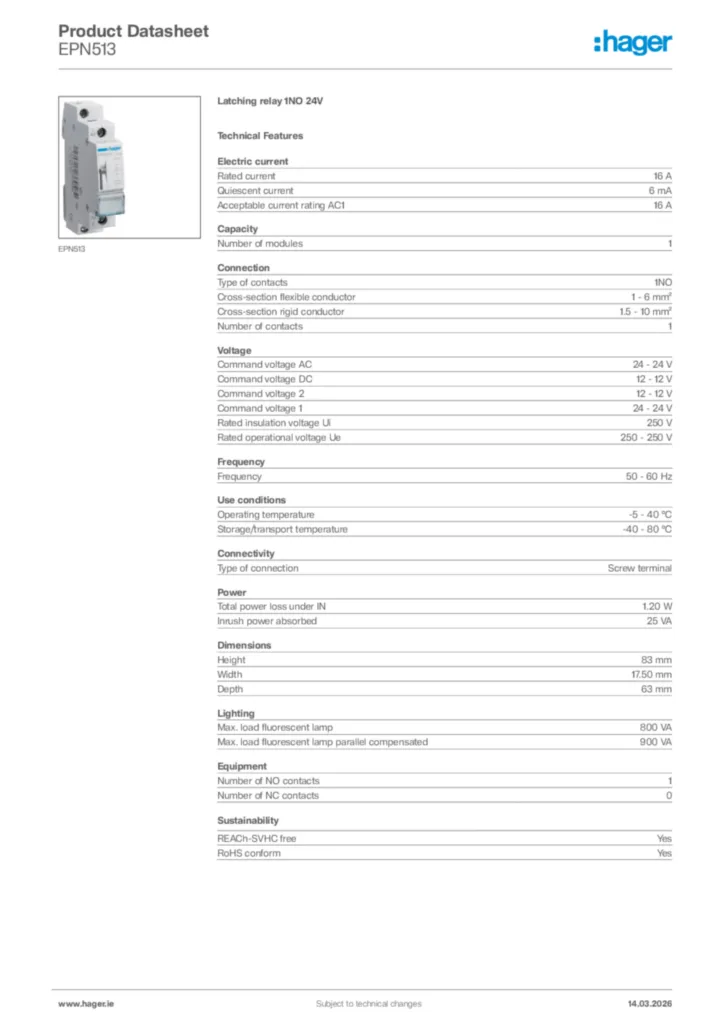

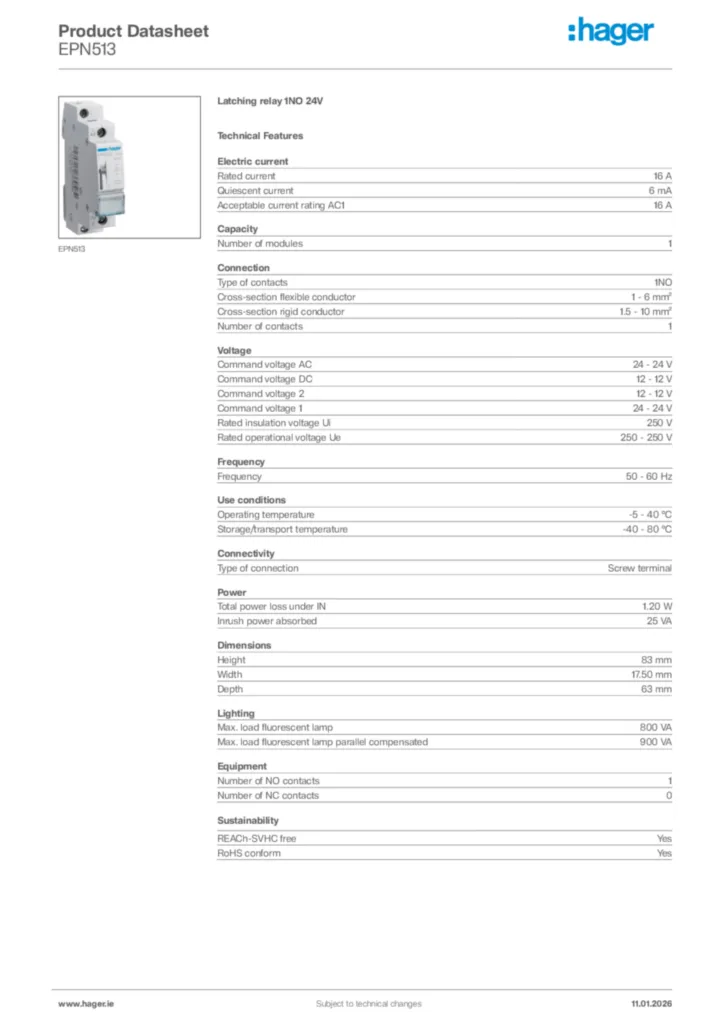

            Download the data sheet

            Complete your system

            Optional accessories

            • Auxil­iary device for distri­bu­tion board devices 2 products available

            Complete your system

            • Auxil­iary device for distri­bu­tion board devices
            • EPN050

              Auxiliary contact for centralised control

              0.00 €  / *
              Add to a list
              Add to a list
            • EPN051

              Auxiliary contact 1NC+1NO

              0.00 €  / *
              Add to a list
              Add to a list

            Technical properties

            Elec­tric current
            • Rated current
              16 A
            • Quies­cent current
              6 mA
            • Accept­able current rating AC1
              16 A
            Capa­city
            • Number of modules
              1
            Connec­tion
            • Type of contacts
              1NO
            • Cross-sec­tion flex­ible conductor
              1 - 6 mm²
            • Cross-sec­tion rigid conductor
              1.5 - 10 mm²
            • Number of contacts
              1
            Voltage
            • Command voltage AC
              24 - 24 V
            • Command voltage DC
              12 - 12 V
            • Command voltage 2
              12 - 12 V
            • Command voltage 1
              24 - 24 V
            • Rated insu­la­tion voltage Ui
              250 V
            • Rated oper­a­tional voltage Ue
              250 - 250 V
            Frequency
            • Frequency
              50 - 60 Hz
            Use condi­tions
            • Oper­ating temper­ature
              -5 - 40 °C
            • Stor­age/trans­port temper­ature
              -40 - 80 °C
            Connectivity
            • Type of connec­tion
              Screw terminal
            Power
            • Total power loss under IN
              1.20 W
            • Inrush power absorbed
              25 VA
            Dimen­sions
            • Height
              83 mm
            • Width
              17.50 mm
            • Depth
              63 mm
            Lighting
            • Max. load fluor­es­cent lamp
              800 VA
            • Max. load fluor­es­cent lamp parallel compensated
              900 VA
            Equip­ment
            • Number of NO contacts
              1
            • Number of NC contacts
              0
