IP55 Motion Detector Comfort 220° Anthracite

EE861

  • Lighting connec­tion and control

IP55 Motion Detector Comfort 220° Anthracite EE861

EAN
3250612258642
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

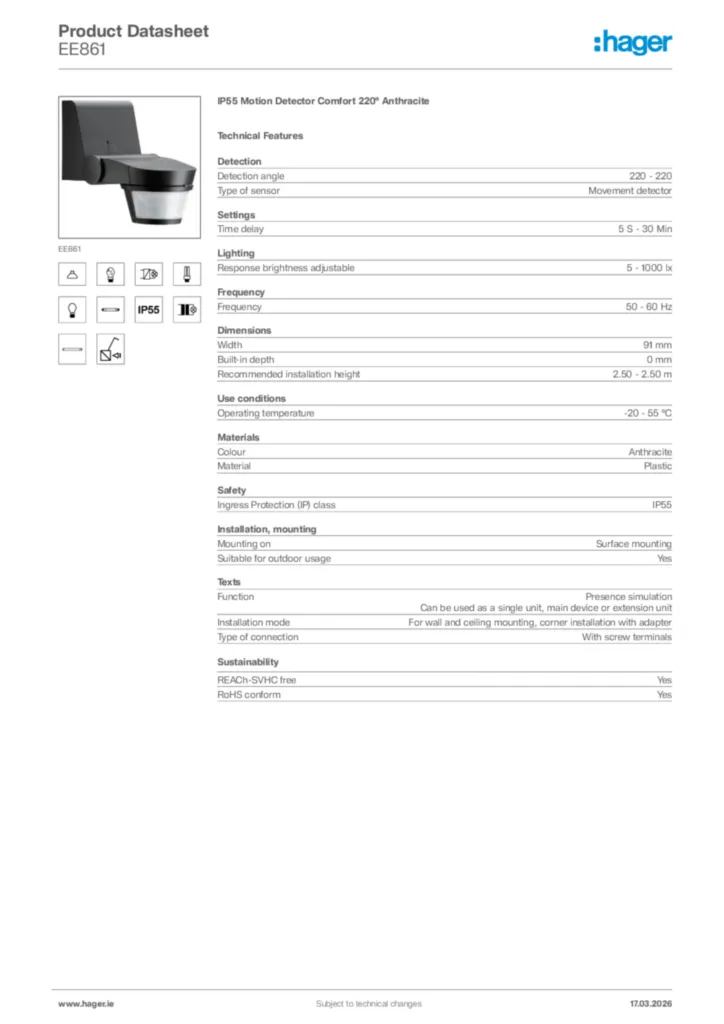

Download the data sheet

Complete your system

Optional accessories

  • Accessor­ies/s­pare parts for move­ment sensor 2 products available

Complete your system

  • Accessor­ies/s­pare parts for move­ment sensor
  • EE806

    Remote control for IP55 motion detector comfort EE86/87
    0.00 €  / *
    Add to a list
    Add to a list
  • EE856

    Corner Bracket for Motion Detector EE841/861/871 - Anthracite
    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Detec­tion
  • Detec­tion angle
    220 - 220
  • Type of sensor
    Move­ment detector
Settings
  • Time delay
    5 S - 30 Min
Lighting
  • Response bright­ness adjustable
    5 - 1,000 lx
Frequency
  • Frequency
    50 - 60 Hz
Dimen­sions
  • Width
    91 mm
  • Built-in depth
    0
  • Recommended install­a­tion height
    2.50 - 2.50 m
Use condi­tions
  • Oper­ating temper­ature
    -20 - 55 °C
Mater­ials
  • Colour
    Anthra­cite
  • Material
    Plastic
Safety
  • Ingress Protec­tion (IP) class
    IP55
Install­a­tion, mounting
  • Mounting on
    Surface mounting
  • Suit­able for outdoor usage
    Yes
Texts
  • Func­tion
    Pres­ence simu­la­tion, Can be used as a single unit, main device or exten­sion unit
  • Install­a­tion mode
    For wall and ceiling mount­ing, corner install­a­tion with adapter
  • Type of connec­tion
    With screw terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACH conform Yes

Certifications and documents

REACH declaration EE861 (english)
PDF
103,10 kB
RoHS declaration EE861 (english)
PDF
103,59 kB

Downloads

  • Product image

    Image EE861 | Hager

    Product Image EE861

  • Installation manual

    Image Bedienungsanleitung Bewegungsmelder 140, 200° EE82.., EE83.. | Hager

    Bedienungsanleitung Bewegungsmelder 140, 200° EE82.., EE83..

    Installation manual fr-FR, de-DE 2020-01-01

    PDF
    1,60 MB
    Image Installation manual en-GB, nl-NL 2015-01-08 | Hager

    Installation manual en-GB, nl-NL 2015-01-08

    PDF
    2,96 MB

  • Declaration of conformity

    Image Delcaration of conformity | Hager

    Delcaration of conformity

    Declaration of conformity en-GB, fr-FR 2024-11-22

    PDF
    135,12 kB
