Motion detector 360° white EE840

Accessories
Technical properties
Environmental value
Documentations
More products

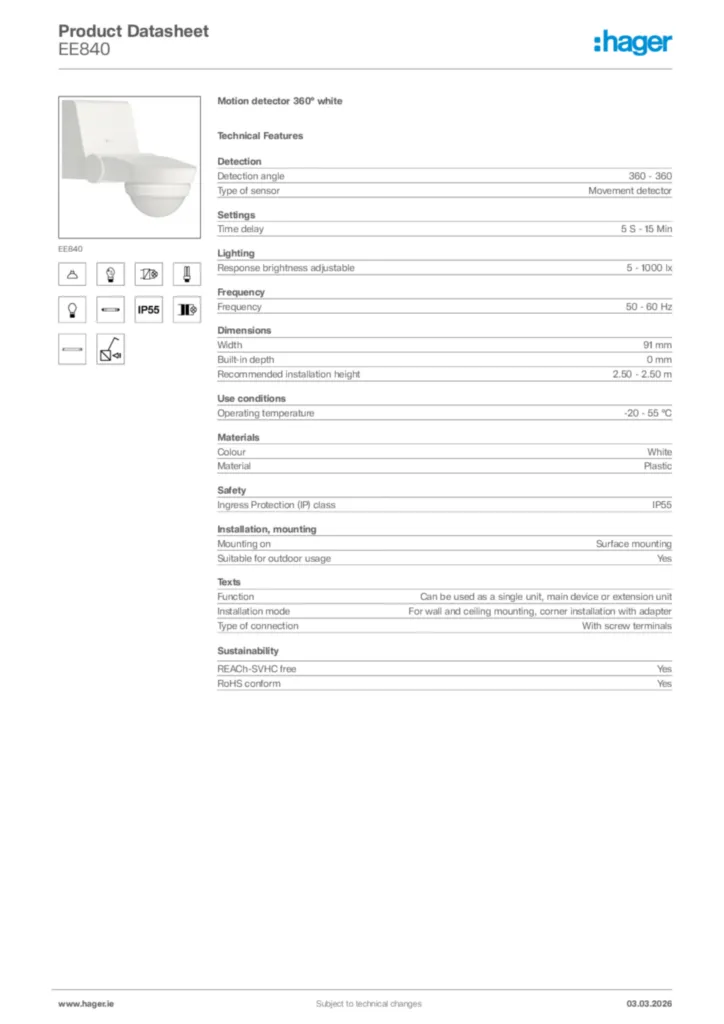

Download the data sheet

Complete your system

Accessories/spare parts for movement sensor 1 products available

Referenced by 1 products available

Technical properties

Detection angle

360 - 360
Type of sensor

Movement detector
Detection angle horizontal

360 - 360

Time delay

5 S - 15 Min
Response sensitivity adjustable

Yes
Switch off delay time

0
Switch on delay time

0

Response brightness adjustable

5 - 1,000 lx
LED lamp power

400 W
Photocell sensitivity

5 - 1,000 lx

Connector/plug type

Prism clamp

Frequency

50 - 60 Hz

Width

91 mm
Built-in depth

0
Recommended installation height

2.50 - 2.50 m
Installation height

2.50 - 2.50 m

Operating temperature

-20 - 55 °C

Colour

White
Material

Plastic
Surface finish

Matt

Ingress Protection (IP) class

IP55

Mounting on

Surface mounting
Suitable for outdoor usage

Yes
Ceiling mounting possible

Yes

Function

Can be used as a single unit, main device or extension unit
Installation mode

For wall and ceiling mounting, corner installation with adapter
Type of connection

With screw terminals

Supply voltage

230 V +10%/-15%

Max. transmission range frontally

12 m
Max. transmission range sideways

6 m

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

REACh-SVHC free Yes
