Motion detector infrared 360°, IP55, wall mounted, anthracite EE841
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for movement sensor 1 products available
Compatible products
-
Referenced by 1 products available
Technical properties
Detection
-
Detection angle360 - 360
-
Type of sensorMovement detector
Settings
-
Time delay5 S - 15 Min
Lighting
-
Response brightness adjustable5 - 1,000 lx
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Width91 mm
-
Recommended installation height2.50 - 2.50 m
Use conditions
-
Operating temperature-20 - 55 °C
Materials
-
ColourAnthracite
-
MaterialPlastic
Safety
-
Ingress Protection (IP) classIP55
Installation, mounting
-
Mounting onSurface mounting
-
Suitable for outdoor usageYes
Texts
-
FunctionCan be used as a single unit, main device or extension unit
-
Installation modeFor wall and ceiling mounting, corner installation with adapter
-
Type of connectionWith screw terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

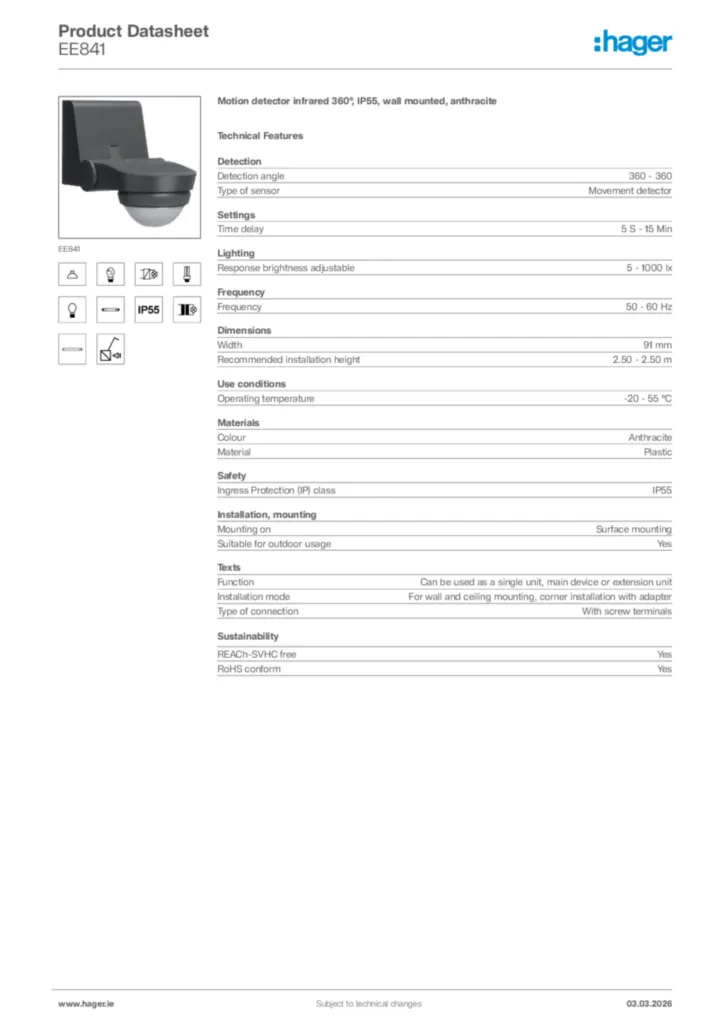

Hager Product data sheet EE841
Motion detector infrared 360°, IP55, wall mounted, anthracite
PDF -
Declaration of conformity
*
Declaration of conformity International 2022-06-30
PDF122,87 kB
