    EAN
    3250612258758
    Packaging
    1 Piece
    • Ceiling detectors

    Movement detector 360° flush mounted with normally open contact EE805A

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Movement detector 360° flush mounted with normally open contact

    EE805A

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Detec­tion
    • Detec­tion angle
      360 - 360
    • Type of sensor
      Move­ment detector, Pres­ence detector
    • Detec­tion angle hori­zontal
      360 - 360
    Settings
    • Time delay
      5 S - 30 Min
    • Response sens­it­ivity adjustable
      No
    • Switch off delay time
      0
    • Switch on delay time
      0
    Lighting
    • Response bright­ness adjustable
      5 - 1,000 lx
    • LED lamp power
      400 W
    • Photo­cell sens­it­ivity
      5 - 1,000 lx
    Connec­tion
    • Connect­or/plug type
      Prism clamp
    Frequency
    • Frequency
      50 - 60 Hz
    Dimen­sions
    • Width
      19 mm
    • Built-in depth
      55 mm
    • Recommended install­a­tion height
      2.5 - 3.5 m
    • Install­a­tion height
      2 - 4 m
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 45 °C
    Mater­ials
    • Colour
      White
    • Material
      Plastic
    • Surface finish
      Matt
    Safety
    • Ingress Protec­tion (IP) class
      IP21
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    • Suit­able for outdoor usage
      No
    • Ceiling mounting possible
      No
    Texts
    • Func­tion
      Can only be used as indi­vidual unit
    • Install­a­tion mode
      With spring clips for ceiling install­a­tion, For ceiling mounting
    • Type of connec­tion
      With plug-in terminals
    Power supply
    • Supply voltage
      230 V +10%/-15%
    Reach distance
    • Max. trans­mis­sion range front­ally
      6 m
    • Max. trans­mis­sion range side­ways
      6 m

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    Certifications and documents

    PEP - Motion detector infrared 360°, IP55, wall mounted, white (English)
    PDF
    390,39 kB

    Downloads

    • Product image

      Image EE805A | Hager

      Product Image EE805A

    • Product datasheet

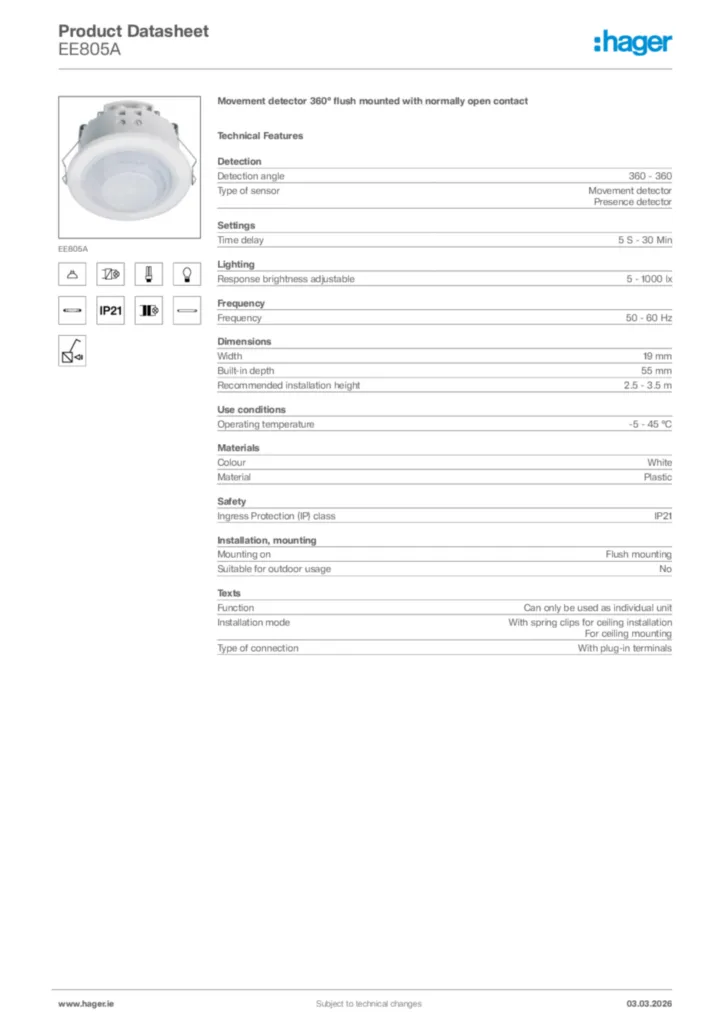

      Image Hager Product data sheet EE805A | Hager

      Hager Product data sheet EE805A

      Movement detector 360° flush mounted with normally open contact

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-11-04

      PDF
      126,18 kB
