    • EE883
    EAN
    3250617579469
    Packaging
    1 Piece
    • Ceiling detectors

    Circulation sensor HF 360°, IP54, wall mounted, white EE883

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Circulation sensor HF 360°, IP54, wall mounted, white

    EE883

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Accessor­ies/s­pare parts for move­ment sensor 1 products available

    Complete your system

    • Accessor­ies/s­pare parts for move­ment sensor
    • EEK006

      Sensor Protection Basket
      0.00 €  / *

    Technical properties

    Detec­tion
    • Detec­tion angle
      360 - 360
    • Type of sensor
      Move­ment detector
    • Detec­tion angle hori­zontal
      360 - 360
    Settings
    • Time delay
      5 S - 15 Min
    • Response sens­it­ivity adjustable
      Yes
    Lighting
    • Response bright­ness adjustable
      2 - 1,000 lx
    • LED lamp power
      400 W
    Frequency
    • Frequency
      50 - 50 Hz
    Dimen­sions
    • Width
      123 mm
    • Recommended install­a­tion height
      2.50 - 2.50 m
    • Install­a­tion height
      4 - 4 m
    Use condi­tions
    • Oper­ating temper­ature
      -20 - 50 °C
    Mater­ials
    • Colour
      White
    • Material
      Acryloni­trile-Butadiene-Styrene (ABS), Polycar­bonate (PC)
    • Surface finish
      Glossy
    Safety
    • Ingress Protec­tion (IP) class
      IP54
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    • Suit­able for outdoor usage
      Yes
    Texts
    • Func­tion
      Parallel connec­tion of several detectors in order to expand the detec­tion area
    • Install­a­tion mode
      For ceiling mounting
    Power supply
    • Supply voltage
      230 V
    Reach distance
    • Max. trans­mis­sion range front­ally
      4 m
    • Max. trans­mis­sion range side­ways
      4 m

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    RoHS report EE883
    PDF

    Downloads

    • Product image

      Image EE883 | Hager

      Product Image EE883

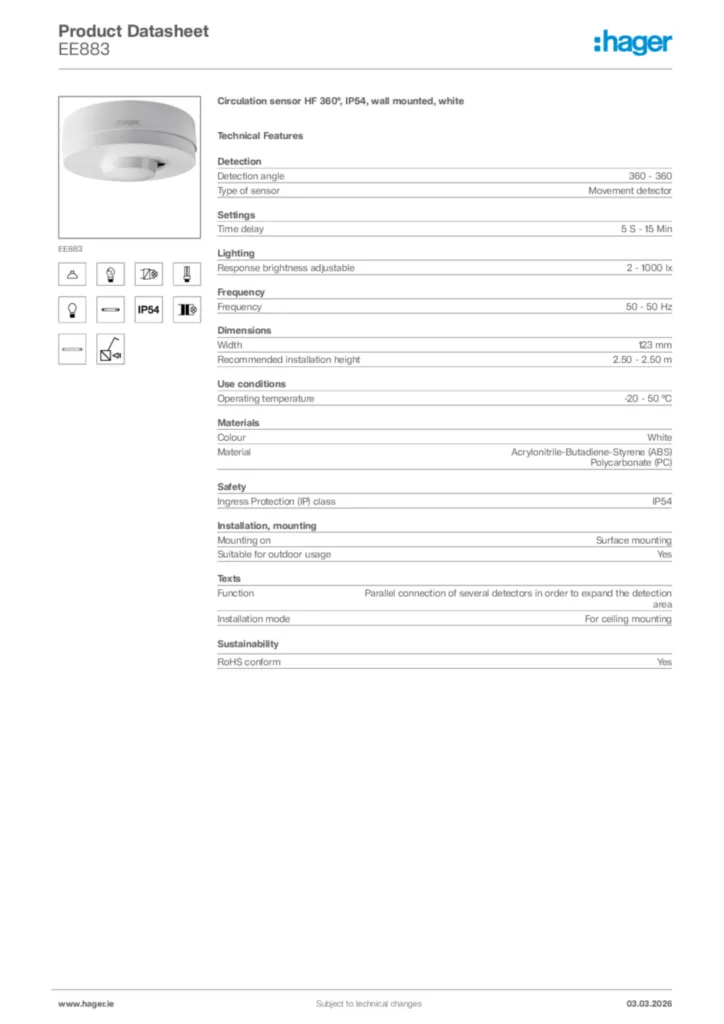

    • Product datasheet

      Image Hager Product data sheet EE883 | Hager

      Hager Product data sheet EE883

      Circulation sensor HF 360°, IP54, wall mounted, white

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2019-11-14

      PDF
      110,41 kB
