Movement detector 360° surface mounted with normally open contact EE804A
EAN
3250612258765
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Detection
-
Detection angle360 - 360
-
Type of sensorMovement detector, Presence detector
Settings
-
Time delay5 S - 30 Min
Lighting
-
Response brightness adjustable5 - 1,000 lx
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Width105.50 mm
-
Built-in depth0
-
Recommended installation height2.5 - 3.5 m
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
ColourWhite
-
MaterialPlastic
Safety
-
Ingress Protection (IP) classIP21
Installation, mounting
-
Mounting onSurface mounting
-
Suitable for outdoor usageNo
Texts
-
FunctionCan only be used as individual unit
-
Installation modeInstallation possible on flush-mounted box, For ceiling mounting
-
Type of connectionWith screw terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-

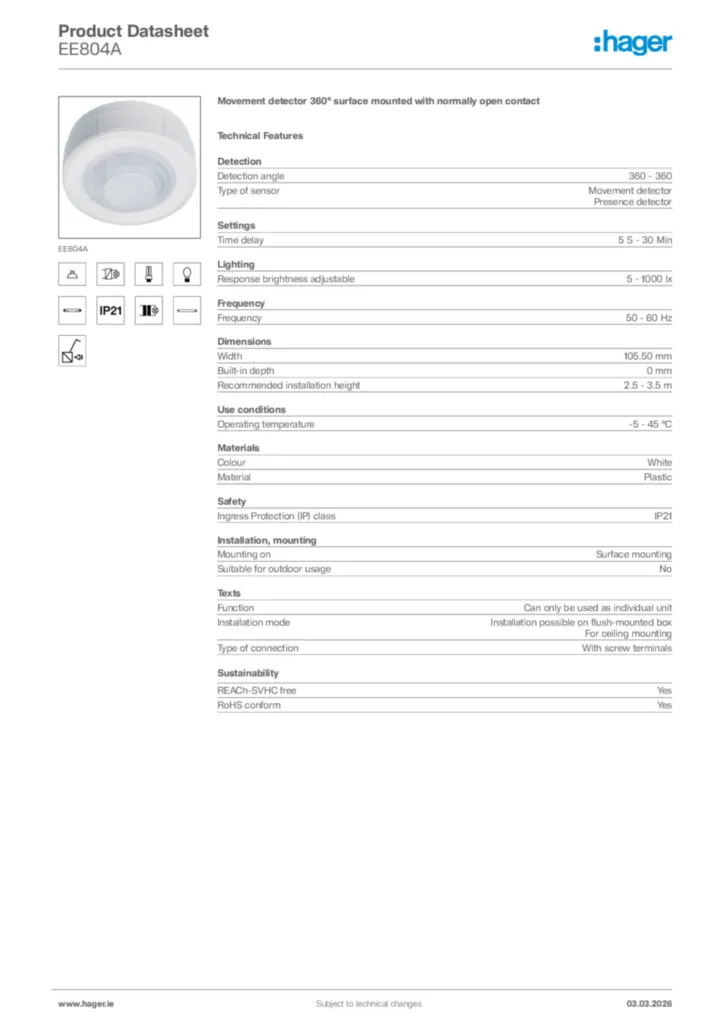

Product image
-
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-04
PDF126,18 kB
