            CFA680U - RCCB 3P+N 80A 300mA A
            CFA680U - RCCB 3P+N 80A 300mA A

            RCCB 3P+N 80A 300mA A

            CFA680U

            CFA680U - RCCB 3P+N 80A 300mA A
            CFA680U - RCCB 3P+N 80A 300mA A
            • Modular devices

            RCCB 3P+N 80A 300mA A CFA680U

            EAN
            3250611624134
            Packaging
            1 Piece

            You have to log in with your myHager profile to see prices and to order.

            Add to a list
            Add to a list

            Login to create a product list

            You need to be logged into your myHager account to create product lists

            Create an account Sign in
            • Accessories
            • Technical properties
            • Environmental value
            • Documentations
            • More products
            Download the data sheet

            Complete your system

            Optional accessories

            • Mech­anic accessories for low-voltage compon­ents 1 products available

            Complete your system

            • Mech­anic accessories for low-voltage compon­ents
            • LZ060

              Heat dissipation insert

              0.00 €  / *
              Add to a list
              Add to a list

            Technical properties

            Archi­tec­ture
            • Type of pole
              3P+N
            Elec­tric current
            • Rated current
              80 A
            • Rated residual oper­ating current Idn
              300 mA
            • Breaking and opening capa­city Idm
              1.25 kA
            • Rated condi­tional short-­cir­cuit current Inc according to EN61008-1
              10 kA
            • Rated current -25°C
              80 A
            • Rated current at -20°C
              80 A
            • Rated current -15°C
              80 A
            • Rated current -10°C
              80 A
            • Rated current -5°C
              80 A
            • Rated current at 0°C
              80 A
            • Rated current 5°C
              80 A
            • Rated current 10°C
              80 A
            • Rated current 15°C
              80 A
            • Rated current at 20°C
              80 A
            • Rated current 25°C
              80 A
            • Rated current 30°C
              80 A
            • Rated current 35°C
              80 A
            • Rated current at 40°C
              80 A
            • Rated current at 45°C
              80 A
            • Rated current at 50°C
              80 A
            • Rated current 55°C
              80 A
            • Rated current 60°C
              80 A
            • Rated current 65°C
              80 A
            • Rated current 70°C
              80 A
            Install­a­tion, mounting
            • Nominal tight­ening torque top terminal
              3.60 - 3.60 Nm
            • Nominal tight­ening torque down terminal
              3.60 - 3.60 Nm
            • Type of top connec­tion for modular devices
              Screw terminal
            • Type of bottom connec­tion for modular devices
              bicon­nect
            Voltage
            • Rated oper­a­tional voltage Ue
              230 - 400 V
            • Type voltage supply
              AC
            • Rated insu­la­tion voltage Ui
              500 V
            • Dielec­tric strength value of power frequency
              2 kV
            • Rated impulse with­stand voltage Uimp
              4,000 V
            • Rated impulse with­stand voltage Uimp IEC 60947-3
              6,000 V
            • Max. oper­ating voltage
              440 V
            Frequency
            • Frequency
              50 - 60 Hz
            Capa­city
            • Number of modules
              4
            Compat­ib­ility
            • Suit­able for DIN Rail
              Yes
            Safety
            • Residual current type
              A
            • Ingress Protec­tion (IP) class
              IP20
            Connec­tion
            • Cross-sec­tion of output with screws, for massive conductors
              1 - 50 mm²
            • Cross-sec­tion of output with screws, for flex­ible conductors
              1 - 35 mm²
            Power
            • Total power loss under IN
              15.80 W
            Use condi­tions
            • Max. Alti­tude
              2,000 m
            • Oper­ating temper­ature
              -25 - 70 °C
            Endur­ance
            • Elec­tric endur­ance in number of cycles
              10,000
            • Number of mech­an­ical oper­a­tions
              20,000
            Connectivity
            • Type of connec­tion
              Screw terminal
            • Top connec­tion align­ment for modular devices
              Aligned terminal
            • Down connec­tion align­ment for modular devices
              Aligned terminal
            Dimen­sions
            • Height
              85 mm
            • Width
              72 mm
            • Depth
              70 mm

            Environmental value

            We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

            RoHS conform Yes

            Certifications and documents

            PEP document en-GB 2022-09-02
            PDF
            336,47 kB
            REACH declaration CFA680U (english)
            PDF
            103,10 kB
            RoHS declaration CFA680U (english)
            PDF
            103,84 kB

            Downloads

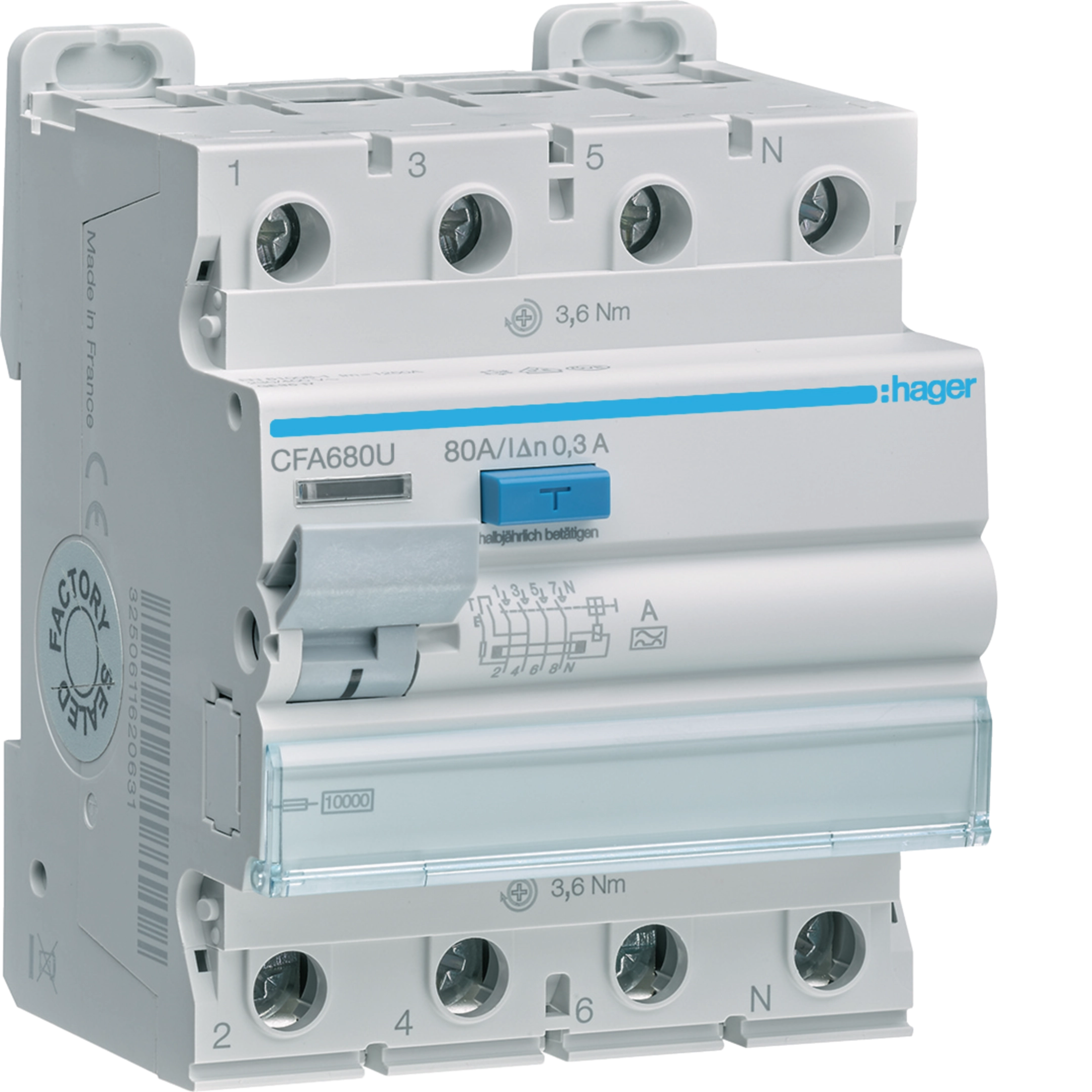

            • Product image

              Image CFA680U  | Hager

              Product Image CFA680U

            • Installation manual

              Image Installation manual cs-CZ, en-GB, fr-FR, pl-PL, ru-RU 2023-06-01  | Hager

              Installation manual cs-CZ, en-GB, fr-FR, pl-PL, ru-RU 2023-06-01

              PDF
              1,20 MB
            • Declaration of conformity

              Image EU Declaration of Conformity  | Hager

              EU Declaration of Conformity

              Declaration of conformity en-GB 2025-01-15

              PDF
              1,04 MB
              Image UKCA Declaration of Conformity  | Hager

              UKCA Declaration of Conformity

              Declaration of conformity en-GB 2025-02-06

              PDF
              1,03 MB
