    • ADD432U
    EAN
    3250611037262
    Packaging
    1 Piece

    RCBO 1M 1P 10kA D-32A 30mA A ADD432U

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    RCBO 1M 1P 10kA D-32A 30mA A

    ADD432U

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    Download the data sheet

    Complete your system

    Optional accessories

    • Locking inter­locking func­tions 1 products available

    Complete your system

    • Locking inter­locking func­tions
    • MZN175

      Padlockable locking kit for MCB, RCCB and RCBO
      0.00 €  / *

    Technical properties

    Archi­tec­ture
    • Type of pole
      1P
    Elec­tric current
    • Rated current
      32 A
    • Rated residual oper­ating current Idn
      30 mA
    • Rated current -25°C
      42.45 A
    • Rated current at -20°C
      41.50 A
    • Rated current -15°C
      40.55 A
    • Rated current -10°C
      39.60 A
    • Rated current -5°C
      38.65 A
    • Rated current at 0°C
      37.70 A
    • Rated current 5°C
      36.75 A
    • Rated current 10°C
      35.80 A
    • Rated current 15°C
      34.85 A
    • Rated current at 20°C
      33.90 A
    • Rated current 25°C
      32.95 A
    • Rated current 30°C
      32 A
    • Rated current 35°C
      31.15 A
    • Rated current at 40°C
      30.30 A
    • Rated current at 50°C
      28.60 A
    • Rated current 55°C
      27.75 A
    • Rated current 60°C
      26.90 A
    • Min./max. threshold value of the AC thermal oper­a­tion
      1.13 - 1.45 A
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Main elec­trical attrib­utes
    • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
      10 kA
    Voltage
    • Rated insu­la­tion voltage Ui
      250 V
    • Rated impulse with­stand voltage Uimp
      4,000 V
    • Rated oper­a­tional voltage Ue
      230 - 240 V
    • Overvoltage category according to IEC 60947-1
      3
    Power
    • Total power loss under IN
      9.90 W
    Frequency
    • Frequency
      50 - 60 Hz
    Use condi­tions
    • Max. Alti­tude
      2,000 m
    • Oper­ating temper­ature
      -25 - 40 °C
    • Stor­age/trans­port temper­ature
      -40 - 70 °C
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      2,000
    • Number of mech­an­ical oper­a­tions
      10,000
    Connec­tion
    • Cross-sec­tion of input with screws, for flex­ible conductors
      1 - 10 mm²
    • Cross-sec­tion of input with screws, for massive conductors
      1 - 16 mm²
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      1 - 16 mm²
    • Cross-sec­tion of input and output with screws, for massive conductors
      1 - 25 mm²
    Install­a­tion, mounting
    • Type of top connec­tion for modular devices
      Screw terminal
    • Type of bottom connec­tion for modular devices
      bicon­nect
    Capa­city
    • Number of modules
      1
    Dimen­sions
    • Height
      115 mm
    • Width
      17.80 mm
    • Depth
      70 mm
    Compat­ib­ility
    • Suit­able for DIN Rail
      Yes

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    RCBO 1P+N 6kA B-16A 30mA A
    PDF
    16,18 MB
    Hager REACH declaration ADD432U
    PDF
    Hager RoHS report ADD432U
    PDF

    Downloads

    • Product image

      Image ADD432U | Hager

      Product Image ADD432U

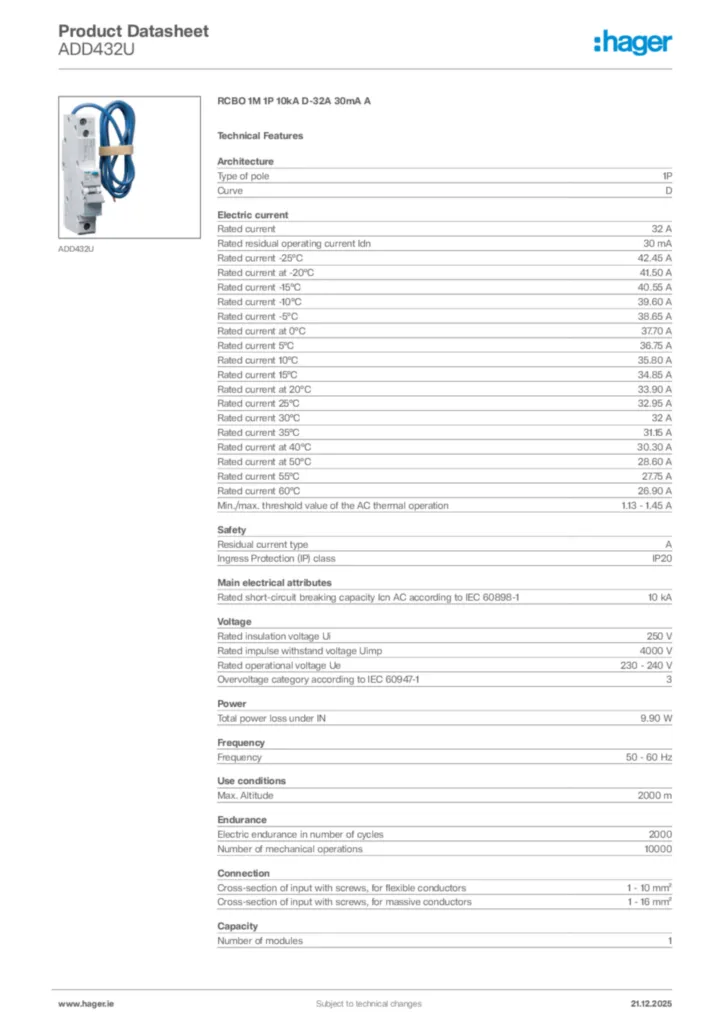

    • Product datasheet

      Image Hager Product data sheet ADD432U | Hager

      Hager Product data sheet ADD432U

      RCBO 1M 1P 10kA D-32A 30mA A

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-10-25

      PDF
      413,52 kB
