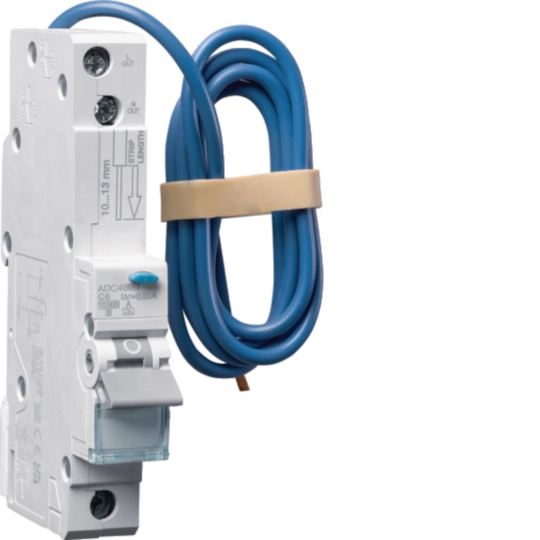

ADC406U - RCBO 1M 1P 10kA C-6A 30mA Type A
ADC406U
RCBO 1M 1P 10kA C-6A 30mA Type A
3
ADA333G - RCBO Electronic 1P 6kA B Curve - 32A, 30mA Type A 1M
ADA333G
RCBO Electronic 1P 6kA B Curve - 32A, 30mA Type A 1M
4
ADM490C - RCBO 4P 6kA C-40A 30mA A Class
ADM490C
RCBO 4P 6kA C-40A 30mA A Class
5
AD906J - RCBO 1P+N 6kA B-6A 30mA A Class
AD906J
RCBO 1P+N 6kA B-6A 30mA A Class

RCBO 1M 1P 10kA D-16A 30mA A

ADD416U

  • Modular devices

RCBO 1M 1P 10kA D-16A 30mA A ADD416U

EAN
3250611037231
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

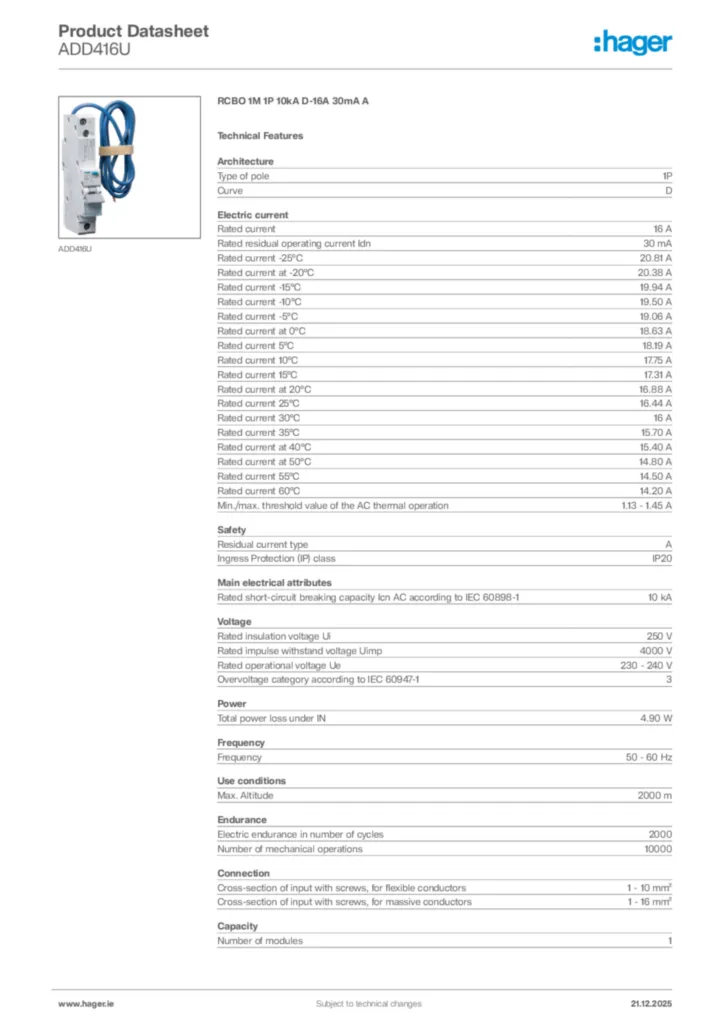

Download the data sheet

Complete your system

Optional accessories

  • Locking inter­locking func­tions 1 products available

Complete your system

  • Locking inter­locking func­tions
  • MZN175

    Padlockable locking kit for MCB, RCCB and RCBO
    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Archi­tec­ture
  • Type of pole
    1P
  • Curve
    D
Elec­tric current
  • Rated current
    16 A
  • Rated residual oper­ating current Idn
    30 mA
  • Rated current -25°C
    20.81 A
  • Rated current at -20°C
    20.38 A
  • Rated current -15°C
    19.94 A
  • Rated current -10°C
    19.50 A
  • Rated current -5°C
    19.06 A
  • Rated current at 0°C
    18.63 A
  • Rated current 5°C
    18.19 A
  • Rated current 10°C
    17.75 A
  • Rated current 15°C
    17.31 A
  • Rated current at 20°C
    16.88 A
  • Rated current 25°C
    16.44 A
  • Rated current 30°C
    16 A
  • Rated current 35°C
    15.70 A
  • Rated current at 40°C
    15.40 A
  • Rated current at 50°C
    14.80 A
  • Rated current 55°C
    14.50 A
  • Rated current 60°C
    14.20 A
  • Min./max. threshold value of the AC thermal oper­a­tion
    1.13 - 1.45 A
Safety
  • Residual current type
    A
  • Ingress Protec­tion (IP) class
    IP20
Main elec­trical attrib­utes
  • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
    10 kA
Voltage
  • Rated insu­la­tion voltage Ui
    250 V
  • Rated impulse with­stand voltage Uimp
    4,000 V
  • Rated oper­a­tional voltage Ue
    230 - 240 V
  • Overvoltage category according to IEC 60947-1
    3
Power
  • Total power loss under IN
    4.90 W
Frequency
  • Frequency
    50 - 60 Hz
Use condi­tions
  • Max. Alti­tude
    2,000 m
  • Oper­ating temper­ature
    -25 - 40 °C
  • Stor­age/trans­port temper­ature
    -40 - 70 °C
Endur­ance
  • Elec­tric endur­ance in number of cycles
    2,000
  • Number of mech­an­ical oper­a­tions
    10,000
Connec­tion
  • Cross-sec­tion of input with screws, for flex­ible conductors
    1 - 10 mm²
  • Cross-sec­tion of input with screws, for massive conductors
    1 - 16 mm²
  • Cross-sec­tion of input and output with screws, for flex­ible conductors
    1 - 16 mm²
  • Cross-sec­tion of input and output with screws, for massive conductors
    1 - 25 mm²
Install­a­tion, mounting
  • Type of top connec­tion for modular devices
    Screw terminal
  • Type of bottom connec­tion for modular devices
    bicon­nect
Capa­city
  • Number of modules
    1
Dimen­sions
  • Height
    115 mm
  • Width
    17.80 mm
  • Depth
    70 mm
Compat­ib­ility
  • Suit­able for DIN Rail
    Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

PEP_Hager_HAGE-00739-V01.01-EN_08122022.pdf
PDF
351,86 kB
REACH declaration ADD416U (english)
PDF
103,10 kB
RoHS declaration ADD416U (english)
PDF
103,84 kB

Downloads

  • Product image

    Image ADD416U | Hager

    Product Image ADD416U

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2021-10-25

    PDF
    413,52 kB
