Presence/motion detector KNX 360° flush-mounted detection Ø10m TXD503
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Detection
-
Detection angle360 - 360
-
Type of sensorMovement detector, Presence detector
Materials
-
MaterialPlastic, Thermoplastic
Installation, mounting
-
Mounting onFlush mounting
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

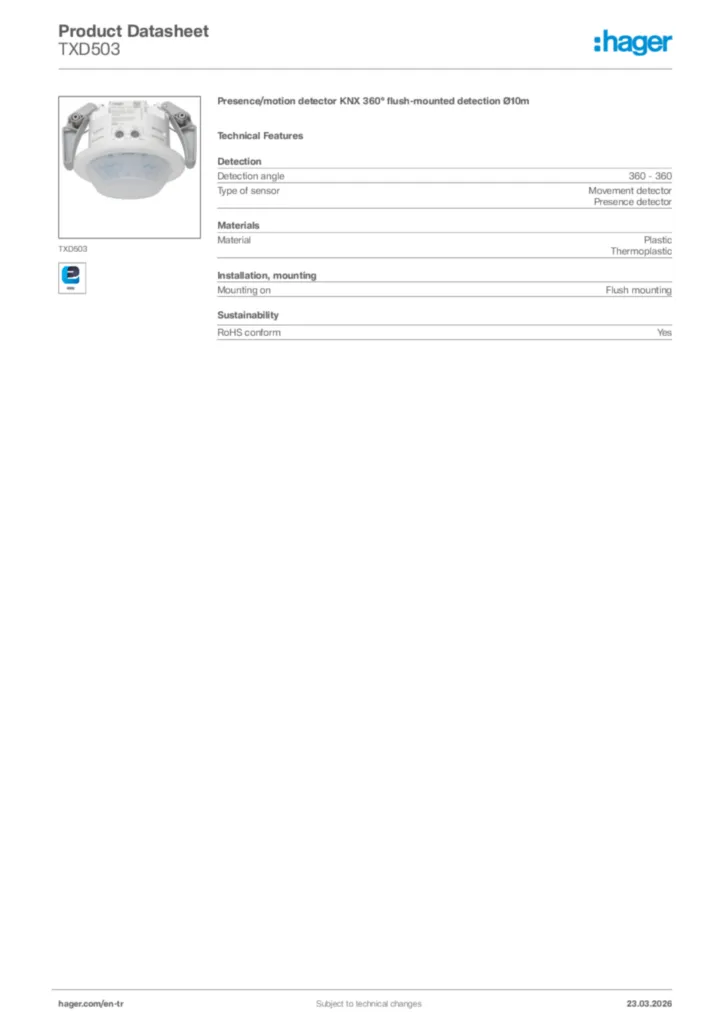

Hager Product data sheet TXD503
Presence/motion detector KNX 360° flush-mounted detection Ø10m
PDF -
Installation manual
Installation manual en-GB, it-IT 2022-06-13
PDF1,15 MB -
KNX product database
ETS database for TXC513, TXC515, TXC518, TXD501, TXD503 and TXD505
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2020-01-01
KNXPROD271,81 kB -
Application Guide
Application description EASY for KNX Presence/motion detector TXD50x-TXC51x_6LE009101A (EN, 2022-09)
Application Guide en-GB 2022-11-21
PDF2,82 MB
Application description ETS for KNX Presence/motion detector TXD50x-TXC51x_6LE009097A (EN, 2022-09)
Application Guide en-GB 2022-09-28
PDF2,86 MB -
Declaration of conformity
Declaration of conformity International 2024-01-18
PDF115,25 kB
Declaration of conformity International 2024-01-18
PDF110,95 kB
