Building management system KNX

Module 1 output 16A flush mounted KNX TRB201

Name: TRB201
Brand: Hager
SKU: TRB201P1

EAN

3250615989314

Packaging

1 Piece

Technical properties
Environmental value
Documentations
More products

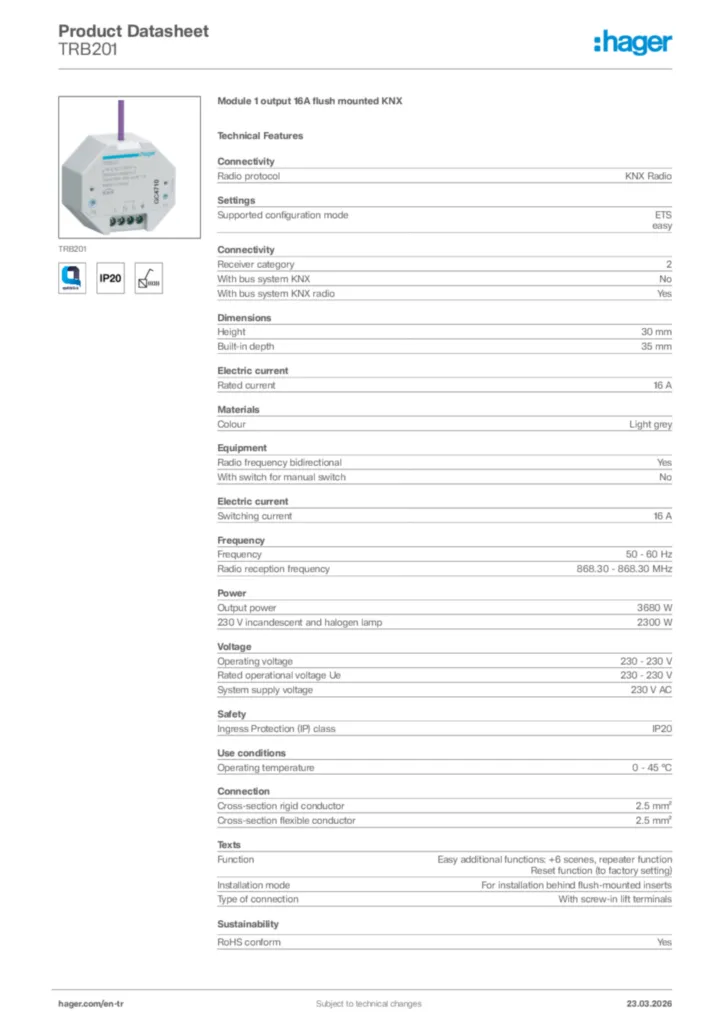

Download the data sheet

Technical properties

Radio protocol

KNX Radio
Receiver category

2
With bus system KNX

No
With bus system KNX radio

Yes

Supported configuration mode

ETS, easy

Height

30 mm
Built-in depth

35 mm

Colour

Light grey

Radio frequency bidirectional

Yes
With switch for manual switch

No

Rated current

16 A
Switching current

16 A

Frequency

50 - 60 Hz
Radio reception frequency

868.30 - 868.30 MHz

Output power

3,680 W
230 V incandescent and halogen lamp

2,300 W

Operating voltage

230 - 230 V
Rated operational voltage Ue

230 - 230 V
System supply voltage

230 V AC

Ingress Protection (IP) class

IP20

Operating temperature

0 - 45 °C

Cross-section rigid conductor

2.5 mm²
Cross-section flexible conductor

2.5 mm²

Function

Easy additional functions: +6 scenes, repeater function, Reset function (to factory setting)
Installation mode

For installation behind flush-mounted inserts
Type of connection

With screw-in lift terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
