NH Disconnector vertical design LV size 3 1000A 185mm 3pole M12 LVTG1000CP
EAN
4049857122769
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current1,000 A
-
Rated conditional short-circuit current Icc15 kA
-
Acceptable current rating AC22 category B / 400V1,000 A
-
Acceptable current rating AC21 category B / 690V1,000 A
-
Acceptable current rating AC21 category B / 500V1,000 A
-
Rated short-time withstand current Icw 1s IEC 6094715 kA
Fuse
-
Fuse sizeNH3
Connectivity
-
Type of connectionScrew terminal
Connection
-
Cross-section flexible conductor2x 30 mm x 5 mm/2x 60 mm x 5 mm
-
Cross-section rigid conductor2x 30 mm x 5 mm/2x 60 mm x 5 mm
-
Connector/plug typeScrew terminal
Architecture
-
Number of poles3
Use conditions
-
Operating temperature-25 - 55 °C
Installation, mounting
-
Nominal tightening torque32 - 32 Nm
Endurance
-
Electric endurance in number of cycles100
-
Number of mechanical operations500
Safety
-
Ingress Protection (IP) classIP2X
Voltage
-
Rated insulation voltage Ui1,000 V
-
Rated impulse withstand voltage Uimp12 kV
Dimensions
-
Distance busbars185 mm
-
Height743 mm
-
Depth188 mm
Power
-
Total power loss under IN318 W
Frequency
-
Frequency50 - 60 Hz
Electrical protection
-
With fault indicatorNo
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

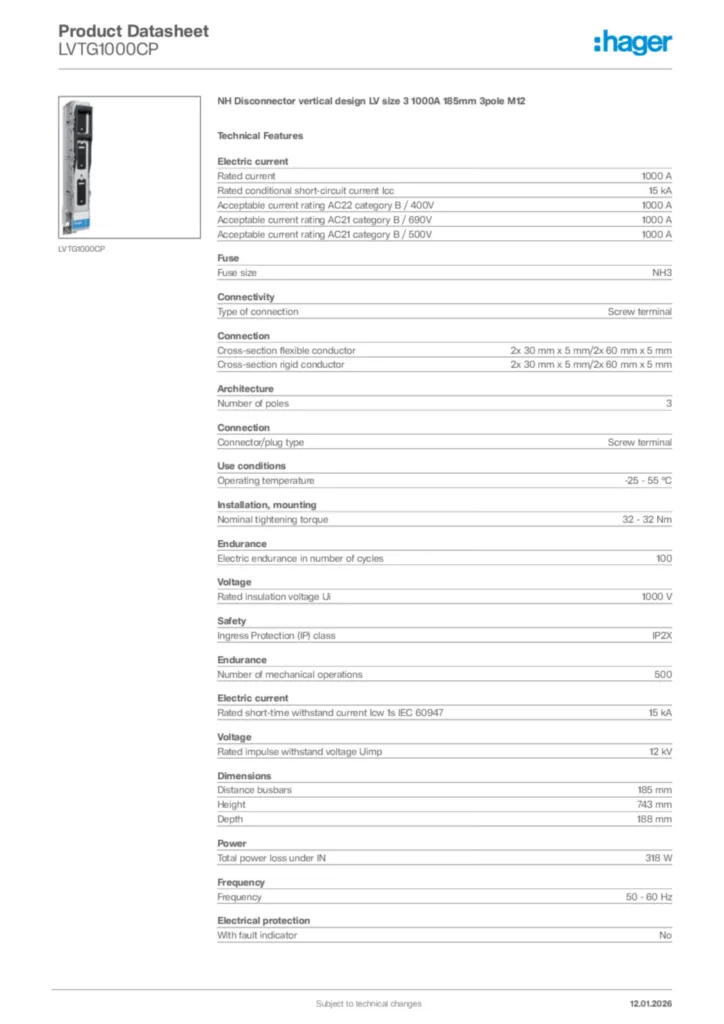

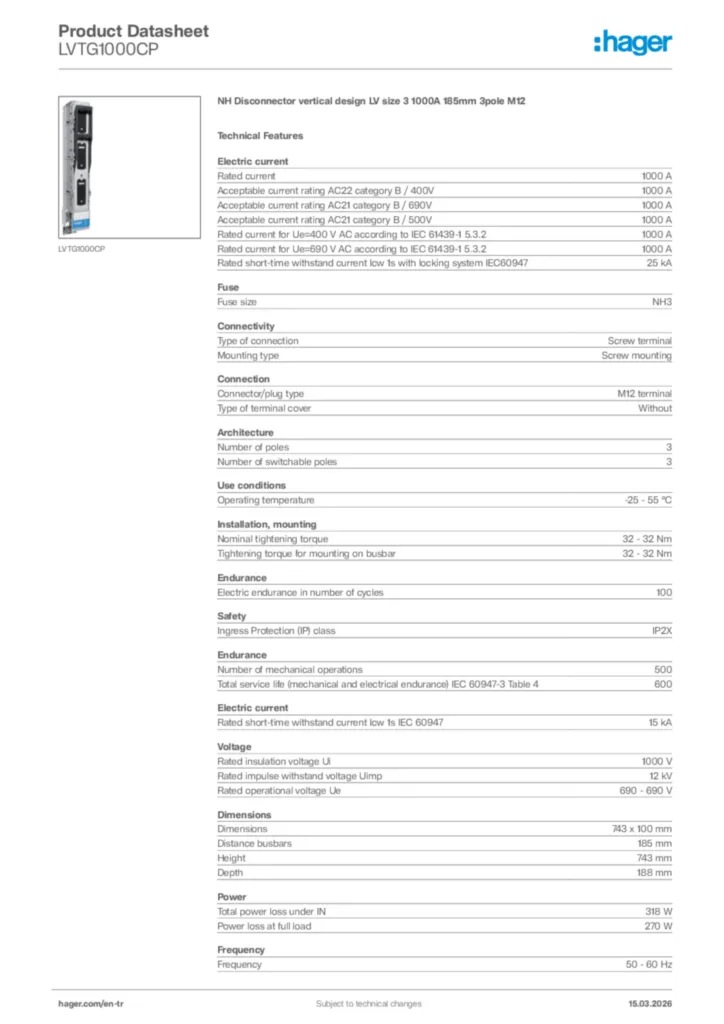

Product datasheet
