NH Fuse-switch vertical design LV size 3 185mm 3pole M12 LVSG3CPZ

Name: LVSG3CPZ
Brand: Hager
SKU: 38036-3020

EAN

4049857133369

Packaging

1 Piece

Technical properties
Environmental value
Documentations

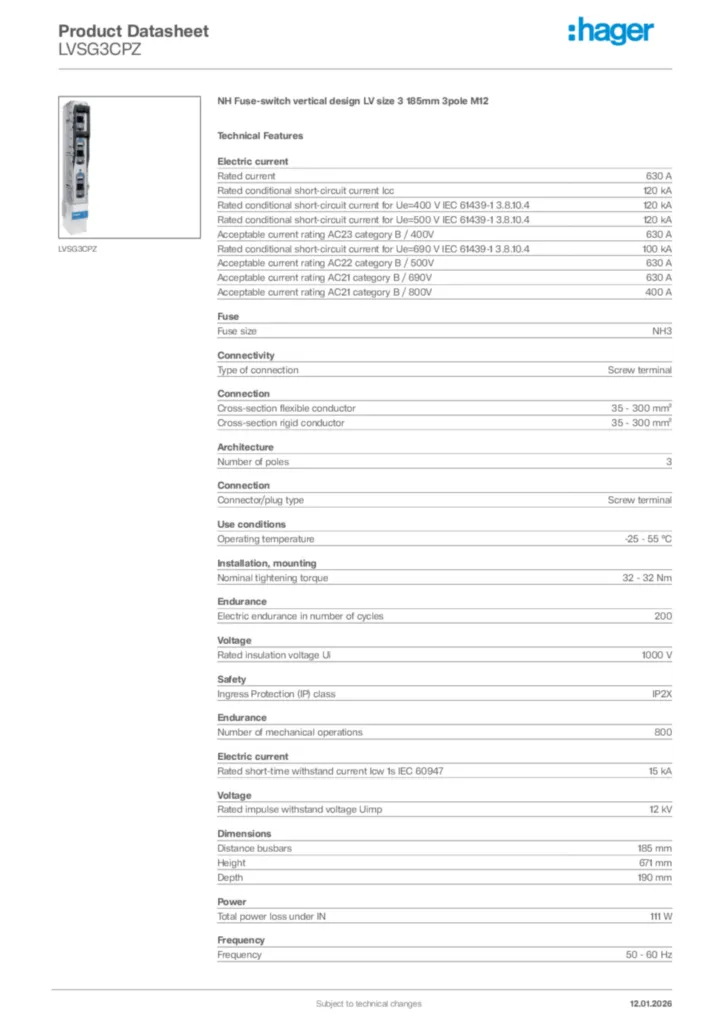

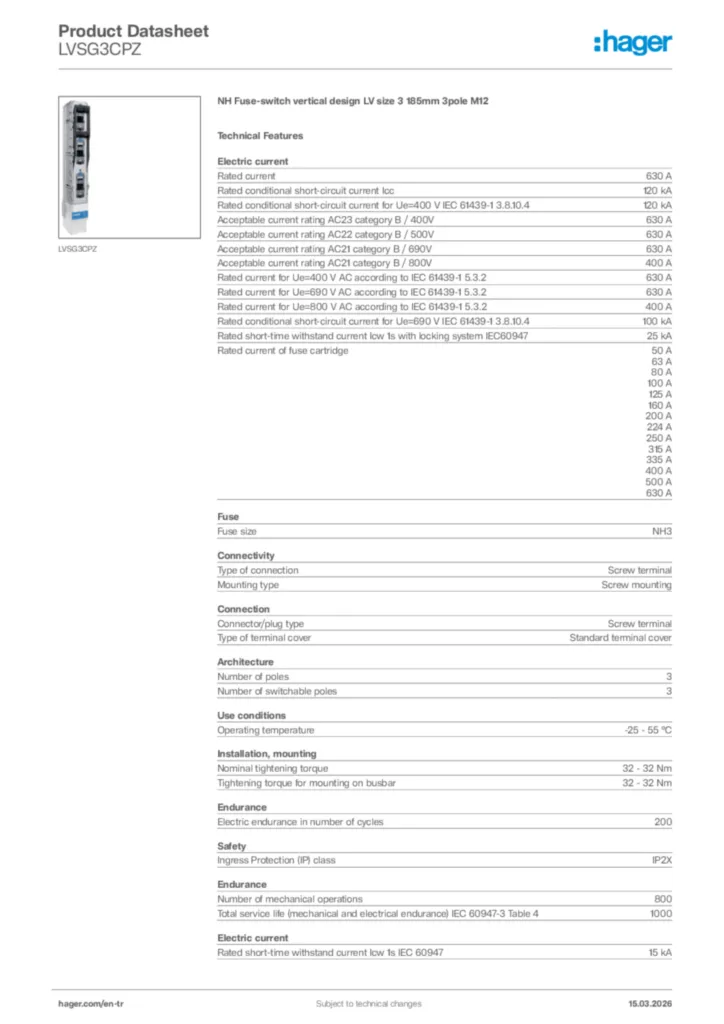

Download the data sheet

Technical properties

Rated current

630 A
Rated conditional short-circuit current Icc

120 kA
Rated conditional short-circuit current for Ue=400 V IEC 61439-1 3.8.10.4

120 kA
Acceptable current rating AC23 category B / 400V

630 A
Acceptable current rating AC22 category B / 500V

630 A
Acceptable current rating AC21 category B / 690V

630 A
Acceptable current rating AC21 category B / 800V

400 A
Rated short-time withstand current Icw 1s IEC 60947

15 kA

Fuse size

NH3

Type of connection

Screw terminal

Cross-section flexible conductor

35 - 300 mm²
Cross-section rigid conductor

35 - 300 mm²
Connector/plug type

Screw terminal

Number of poles

3

Operating temperature

-25 - 55 °C

Nominal tightening torque

32 - 32 Nm

Electric endurance in number of cycles

200
Number of mechanical operations

800

Ingress Protection (IP) class

IP2X

Rated insulation voltage Ui

1,000 V
Rated impulse withstand voltage Uimp

12 kV

Distance busbars

185 mm
Height

671 mm
Depth

190 mm

Total power loss under IN

111 W

Frequency

50 - 60 Hz

With fault indicator

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
