NH Fuse-Switch vertical design LV size 00 185mm 1pole M8 LVSG00SE
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current160 A
-
Rated conditional short-circuit current Icc120 kA
-
Rated conditional short-circuit current for Ue=400 V IEC 61439-1 3.8.10.4120 kA
-
Acceptable current rating AC23 category B / 400V160 A
-
Acceptable current rating AC22 category B / 500V160 A
-
Acceptable current rating AC21 category B / 800V63 A
-
Acceptable current rating AC22 category B / 690V160 A
-
Rated current for Ue=400 V AC according to IEC 61439-1 5.3.2160 A
-
Rated current for Ue=690 V AC according to IEC 61439-1 5.3.2160 A
-
Rated current for Ue=800 V AC according to IEC 61439-1 5.3.263 A
-
Rated conditional short-circuit current for Ue=690 V IEC 61439-1 3.8.10.4100 kA
-
Rated current of fuse cartridge2 A, 4 A, 6 A, 10 A, 16 A, 20 A, 25 A, 32 A, 35 A, 40 A, 50 A, 63 A, 80 A, 100 A, 125 A, 160 A
-
Rated short-time withstand current Icw 1s IEC 609475 kA
Fuse
-
Fuse sizeNH00
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeScrew mounting
Connection
-
Connector/plug typeM8 terminal
-
Type of terminal coverStandard terminal cover
Architecture
-
Number of poles3
-
Number of switchable poles1
Use conditions
-
Operating temperature-25 - 55 °C
Installation, mounting
-
Nominal tightening torque14 - 14 Nm
-
Tightening torque for mounting on busbar14 - 14 Nm
Safety
-
Ingress Protection (IP) classIP2X
Voltage
-
Rated insulation voltage Ui1,000 V
-
Rated impulse withstand voltage Uimp8 kV
-
Rated operational voltage Ue690 - 690 V
Dimensions
-
Height671 mm
-
Depth123 mm
Power
-
Total power loss under IN22 W
-
Power loss of the Fuse-Link installed in device12 W
-
Power loss at full load58 W
Frequency
-
Frequency50 - 60 Hz
Electrical protection
-
With fault indicatorNo
Functions
-
Double interruptingNo
Endurance
-
Electric endurance in number of cycles200
-
Number of mechanical operations1,400
-
Total service life (mechanical and electrical endurance) IEC 60947-3 Table 41,600
Materials
-
Contains recycled material (% of total plastic weight)0
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

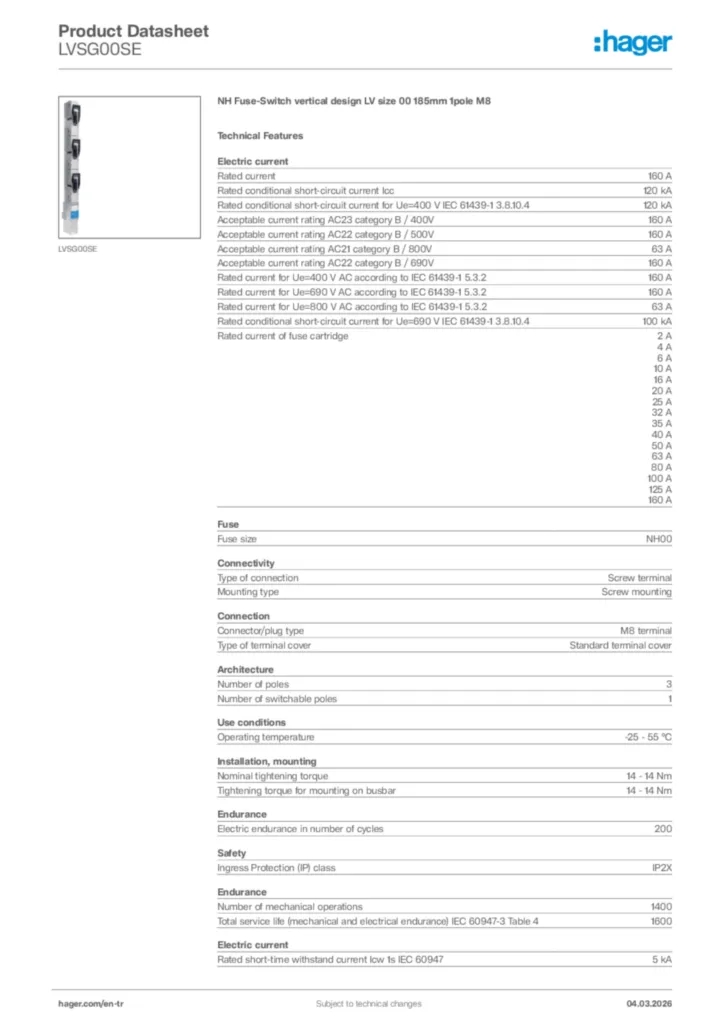

Hager Product data sheet LVSG00SE
