NH-Fuse switch vertical desgin LV NH00 100mm 3pole M8 LVS00100SP

Name: LVS00100SP
Brand: Hager
SKU: 38054-3020

EAN

4049857199938

Packaging

1 Piece

Technical properties
Environmental value
Documentations

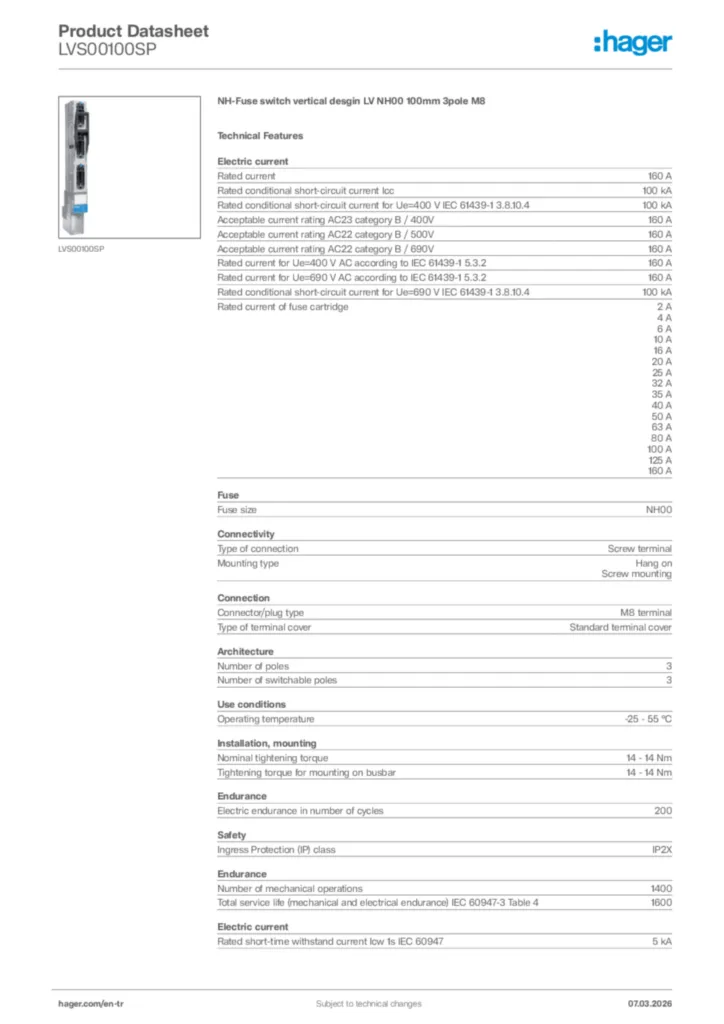

Download the data sheet

Technical properties

Rated current

160 A
Rated conditional short-circuit current Icc

100 kA
Rated conditional short-circuit current for Ue=400 V IEC 61439-1 3.8.10.4

100 kA
Rated short-time withstand current Icw 1s IEC 60947

5 kA

Fuse size

NH00

Type of connection

Screw terminal

Cross-section flexible conductor

4 - 95 mm²
Cross-section rigid conductor

4 - 95 mm²
Connector/plug type

M8 terminal

Number of poles

3

Operating temperature

-25 - 55 °C

Nominal tightening torque

14 - 14 Nm

Electric endurance in number of cycles

200
Number of mechanical operations

1,400

Ingress Protection (IP) class

IP2X

Rated insulation voltage Ui

1,000 V
Rated impulse withstand voltage Uimp

8 kV

Distance busbars

100 mm
Height

401 mm
Depth

123 mm

Total power loss under IN

20 W

Frequency

50 - 60 Hz

With fault indicator

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
