Fuse carrier 1P 50A 690V L51 accessoriability 1.5M LS601

Name: LS601
Brand: Hager
SKU: LS601

EAN

3250614196010

Packaging

1 Piece

Technical properties
Environmental value
Documentations
More products

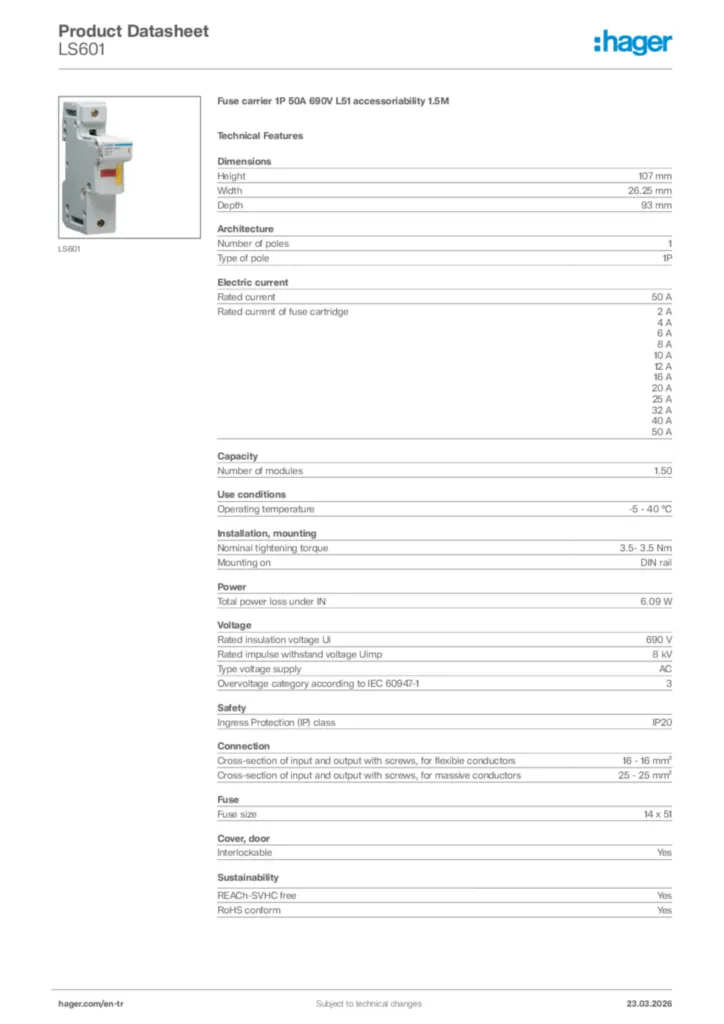

Download the data sheet

Technical properties

Height

107 mm
Width

26.25 mm
Depth

93 mm

Number of poles

1

Rated current

50 A
Rated current of fuse cartridge

2 A, 4 A, 6 A, 8 A, 10 A, 12 A, 16 A, 20 A, 25 A, 32 A, 40 A, 50 A

Number of modules

1.50

Number of half modules of 17,5 mm

3

Operating temperature

-5 - 40 °C

Nominal tightening torque

3.5- 3.5 Nm
Mounting on

DIN rail

Total power loss under IN

6.09 W

Rated insulation voltage Ui

690 V
Rated impulse withstand voltage Uimp

8 kV
Type voltage supply

AC
Overvoltage category according to IEC 60947-1

3

Ingress Protection (IP) class

IP20

Cross-section of input and output with screws, for flexible conductors

16 - 16 mm²
Cross-section of input and output with screws, for massive conductors

25 - 25 mm²

Fuse size

14 x 51

Interlockable

Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
