Load break switch 4P 40A HAB404

Technical properties
Environmental value
Documentations

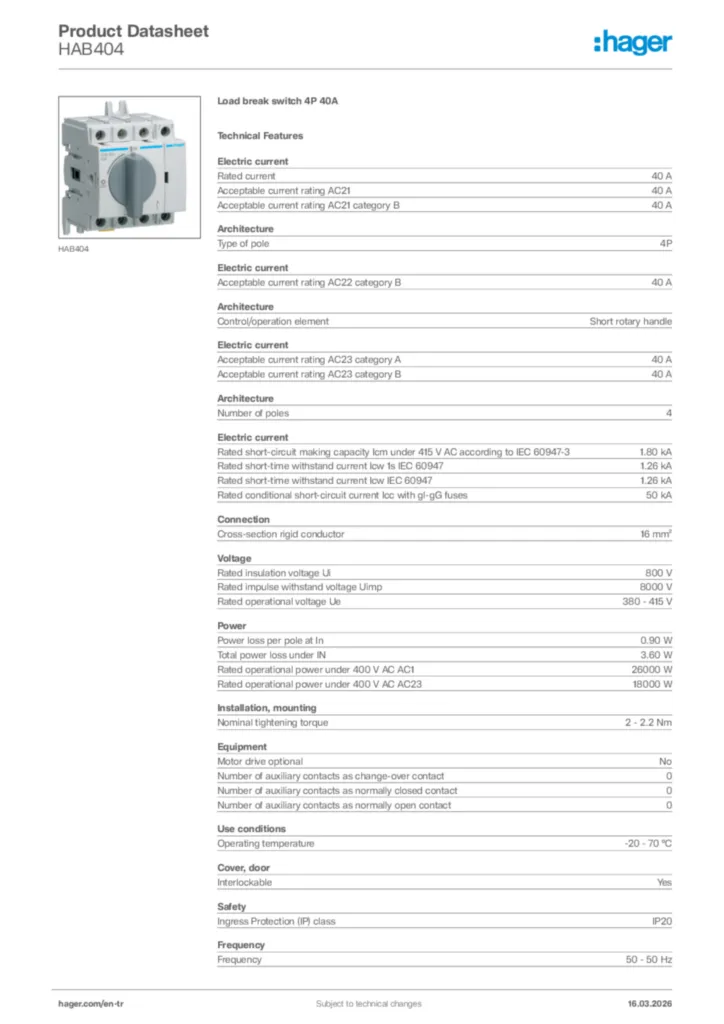

Download the data sheet

Technical properties

Rated current

40 A
Acceptable current rating AC21

40 A
Acceptable current rating AC21 category B

40 A
Acceptable current rating AC22 category B

40 A
Acceptable current rating AC23 category A

40 A
Acceptable current rating AC23 category B

40 A
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-3

1.80 kA
Rated short-time withstand current Icw 1s IEC 60947

1.26 kA
Rated short-time withstand current Icw IEC 60947

1.26 kA
Rated conditional short-circuit current Icc with gl-gG fuses

50 kA

Type of pole

4P
Control/operation element

Short rotary handle
Number of poles

4

Cross-section rigid conductor

16 mm²

Rated insulation voltage Ui

800 V
Rated impulse withstand voltage Uimp

8,000 V
Rated operational voltage Ue

380 - 415 V

Power loss per pole at In

0.90 W
Total power loss under IN

3.60 W
Rated operational power under 400 V AC AC1

26,000 W
Rated operational power under 400 V AC AC23

18,000 W

Nominal tightening torque

2 - 2.2 Nm

Motor drive optional

No
Number of auxiliary contacts as change-over contact

0
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as normally open contact

0

Operating temperature

-20 - 70 °C

Interlockable

Yes

Ingress Protection (IP) class

IP20

Frequency

50 - 50 Hz

Type of connection

Screw terminal

Is reversing switch

No
Version as emergency stop installation

No
Version as main switch

Yes
Version as maintenance/service switch

Yes
Version as safety switch

Yes
Version as switch disconnector compact

Yes

Number of modules

3.42

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
