Enclosure, NewVegaD, 837x550x182mm, 96 modules, flush-mounted, empty FU42GN

EAN
3250612710973
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Enclosure, NewVegaD, 837x550x182mm, 96 modules, flush-mounted, empty

FU42GN

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Door/­op­er­ating panel 2 products available
  • Cover for distri­bu­tion board 2 products available
  • Mounting plate for distri­bu­tion board 3 products available

Complete your system

  • Door/­op­er­ating panel
  • Cover for distri­bu­tion board
  • Mounting plate for distri­bu­tion board
  • FD42TN

    Glazed door, NewVegaD, 700x500mm, for 4-rows enclosure
    0.00 €  / *
  • FD42PN

    Plain door, NewVegaD, 700x500mm, for 4-rows enclosure
    0.00 €  / *
  • FD00C3

    Cover, NewVegaD, 300x500mm, plain+slotted
    0.00 €  / *
  • FD00C2

    Cover, NewVegaD, 300x500mm, plain
    0.00 €  / *
  • FD00M2

    Mounting plate, NewVegaD, 300x440x2mm, for mounting rail upright
    0.00 €  / *
  • FD00M3

    Perforated plate, NewVegaD, 150x440x1, 2mm, for mounting rail upright
    0.00 €  / *
  • FD00M1

    Perforated plate, NewVegaD, 225x440x1, 2mm, for mounting rail upright
    0.00 €  / *

Technical properties

Dimen­sions
  • Height
    837 mm
  • Width
    600 mm
  • Depth
    182 mm
  • Thick­ness of side­wall
    1 mm
Safety
  • Ingress Protec­tion (IP) class
    IP30
  • Protec­tion class
    Isol­a­tion class II
  • Locking type
    Without lock
  • Impact resist­ance IK
    IK07
Equip­ment
  • Number of section in width
    2
  • Number of flange plate open­ings
    2
  • Number of rows
    4
Install­a­tion, mounting
  • Mounting on
    Flush mounting
  • Suit­able for outdoor usage
    No
Mater­ials
  • Colour
    Pure white
  • RAL code
    9010
  • Treat­ment
    Powder coated
  • Material
    Metal, Plastic
Cover, door
  • Number of cabinet doors
    0
  • Door/­cover is trans­parent
    No
Elec­tric current
  • Rated current
    160 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration FU42GN
PDF
Hager RoHS report FU42GN
PDF

Downloads

  • Image FU42GN | Hager

    Product Image FU42GN

  • Product datasheet

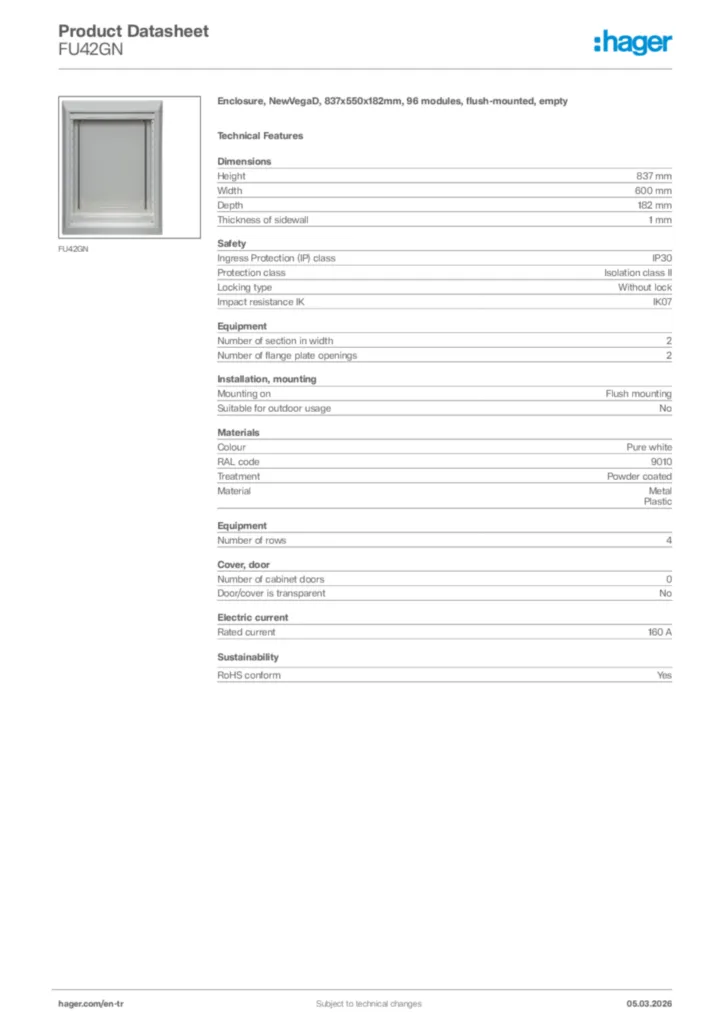

    Image Hager Product data sheet FU42GN | Hager

    Hager Product data sheet FU42GN

    Enclosure, NewVegaD, 837x550x182mm, 96 modules, flush-mounted, empty

    PDF

  • Installation manual

    Image Installation manual International 2020-01-01 | Hager

    Installation manual International 2020-01-01

    PDF
    11,99 MB

  • Handbook

    Image Handbook en-GB 2023-07-07 | Hager

    Handbook en-GB 2023-07-07

    PDF
    11,76 MB
    Image Handbook fr-FR 2023-09-11 | Hager

    Handbook fr-FR 2023-09-11

    PDF
    11,49 MB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-10-11

    PDF
    190,72 kB
