    • Home
    • Catalog
    • FD32GN
    EAN
    3250612548514
    Packaging
    1 Piece

    Enclosure, NewVegaD, 600x550x193mm, 72 modules, surface-mounted, empty FD32GN

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Enclosure, NewVegaD, 600x550x193mm, 72 modules, surface-mounted, empty

    FD32GN

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    Download the data sheet

    Complete your system

    Optional accessories

    • Door/­op­er­ating panel 2 products available
    • Cover for distri­bu­tion board 2 products available
    • Mounting plate for distri­bu­tion board 3 products available

    Complete your system

    • Door/­op­er­ating panel
    • Cover for distri­bu­tion board
    • Mounting plate for distri­bu­tion board
    • FD32TN

      Glazed door, NewVegaD, 550x500mm, for 3-rows enclosure
      0.00 €  / *
    • FD32PN

      Plain door, NewVegaD, 550x500mm, for 3-rows enclosure
      0.00 €  / *
    • FD00C3

      Cover, NewVegaD, 300x500mm, plain+slotted
      0.00 €  / *
    • FD00C2

      Cover, NewVegaD, 300x500mm, plain
      0.00 €  / *
    • FD00M2

      Mounting plate, NewVegaD, 300x440x2mm, for mounting rail upright
      0.00 €  / *
    • FD00M3

      Perforated plate, NewVegaD, 150x440x1, 2mm, for mounting rail upright
      0.00 €  / *
    • FD00M1

      Perforated plate, NewVegaD, 225x440x1, 2mm, for mounting rail upright
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      600 mm
    • Width
      550 mm
    • Depth
      193 mm
    • Thick­ness of side­wall
      1 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP30
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      Without lock
    • Impact resist­ance IK
      IK07
    Equip­ment
    • Number of flange plate open­ings
      2
    • Number of rows
      3
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Pure white
    • RAL code
      9010
    • Treat­ment
      Powder coated
    • Material
      Metal, Plastic
    Cover, door
    • Number of cabinet doors
      0
    • Door/­cover is trans­parent
      No
    Elec­tric current
    • Rated current
      160 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration FD32GN
    PDF
    Hager RoHS report FD32GN
    PDF

    Downloads

    • Image FD32GN | Hager

      Product Image FD32GN

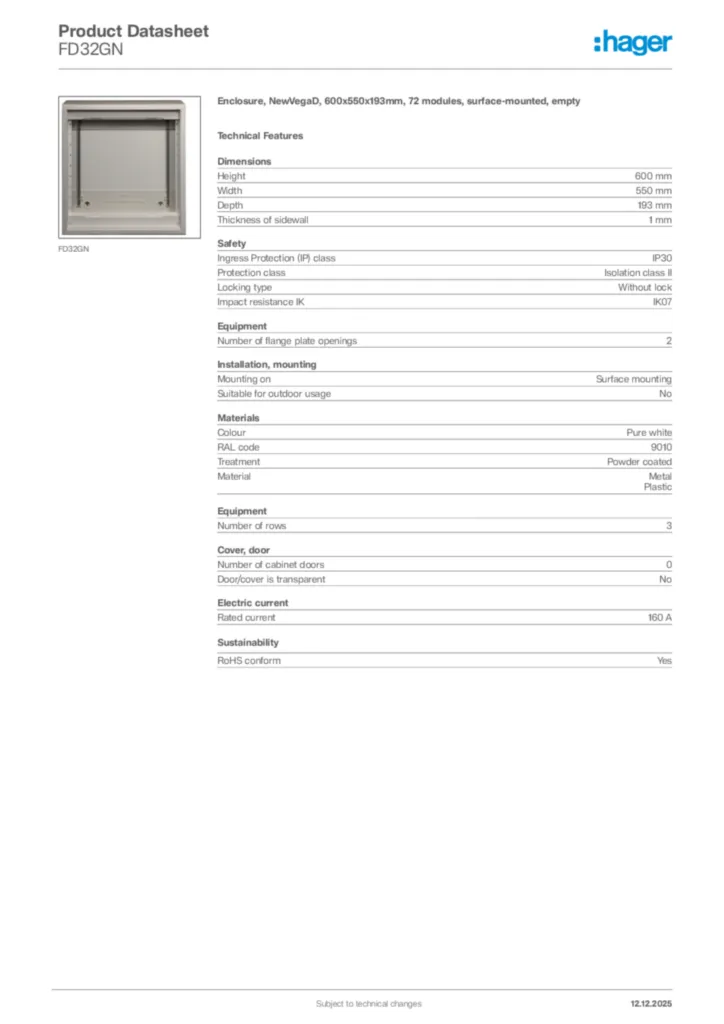

    • Product datasheet

      Image Hager Product data sheet FD32GN | Hager

      Hager Product data sheet FD32GN

      Enclosure, NewVegaD, 600x550x193mm, 72 modules, surface-mounted, empty

      PDF

    • Installation manual

      Image Installation manual International 2014-03-24 | Hager

      Installation manual International 2014-03-24

      PDF
      7,44 MB

    • Handbook

      Image Handbook en-GB 2022-10-10 | Hager

      Handbook en-GB 2022-10-10

      PDF
      24,05 MB
      Image Handbook en-GB 2023-07-07 | Hager

      Handbook en-GB 2023-07-07

      PDF
      11,76 MB
      Image Handbook fr-FR 2023-09-11 | Hager

      Handbook fr-FR 2023-09-11

      PDF
      11,49 MB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-10-11

      PDF
      190,72 kB
