Contactor 25A, 2NC, 230V~50Hz ESC226
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Connection
-
Type of contacts2NC
-
Number of contacts2
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1 - 10 mm²
Electric current
-
Rated current25 A
Capacity
-
Number of modules1
Frequency
-
Frequency50 - 50 Hz
Voltage
-
Rated impulse withstand voltage Uimp4,000 V
-
Rated insulation voltage Ui250 V
-
Rated operational voltage Ue230 - 230 V
-
Command voltage AC230 - 230 V
-
Command voltage DC0 - 0 V
Use conditions
-
Operating temperature-10 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Use
-
Category of useAC-7a/AC-7b
Endurance
-
Number of mechanical operations100,000
-
Electric endurance in number of cycles30,000
Power
-
Total power loss under IN3 W
-
Inrush power absorbed10.70 VA
Dimensions
-
Height83 mm
-
Width17.85 mm
-
Depth60 mm
Equipment
-
Number of NO contacts0
-
Number of NC contacts2
-
With switch for manual switchNo
Installation, mounting
-
Nominal tightening torque1.20 - 1.20 Nm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

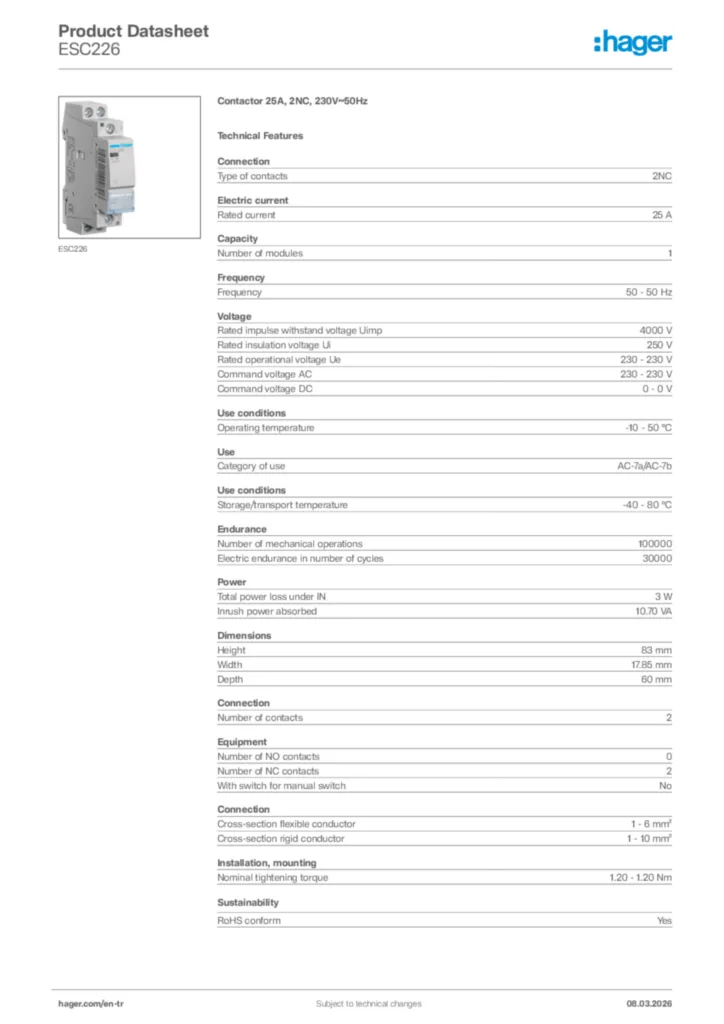

Hager Product data sheet ESC226
Contactor 25A, 2NC, 230V~50Hz
PDF -
Product data sheet
UK_MD_TDS_Contactors.pdf
Technical data sheet including characteristics for Contactors and Override Contactors.
PDF197,47 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-09-23
PDF383,45 kB
Declaration
Declaration of conformity International 2021-05-04
PDF221,42 kB
