Motion detector infrared 200°, IP55, wall mounted, white EE830
EAN
3250612258321
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Detection
-
Detection angle200 - 200
-
Type of sensorMovement detector
Settings
-
Time delay5 S - 15 Min
Lighting
-
Response brightness adjustable5 - 1,000 lx
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Width83 mm
-
Recommended installation height2.50 - 2.50 m
Use conditions
-
Operating temperature-20 - 55 °C
Materials
-
ColourWhite
-
MaterialPlastic
Safety
-
Ingress Protection (IP) classIP55
Installation, mounting
-
Mounting onSurface mounting
-
Suitable for outdoor usageYes
Texts
-
FunctionCan be used as a single unit, main device or extension unit
-
Installation modeFor wall and ceiling mounting, corner installation with adapter
-
Type of connectionWith plug-in terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

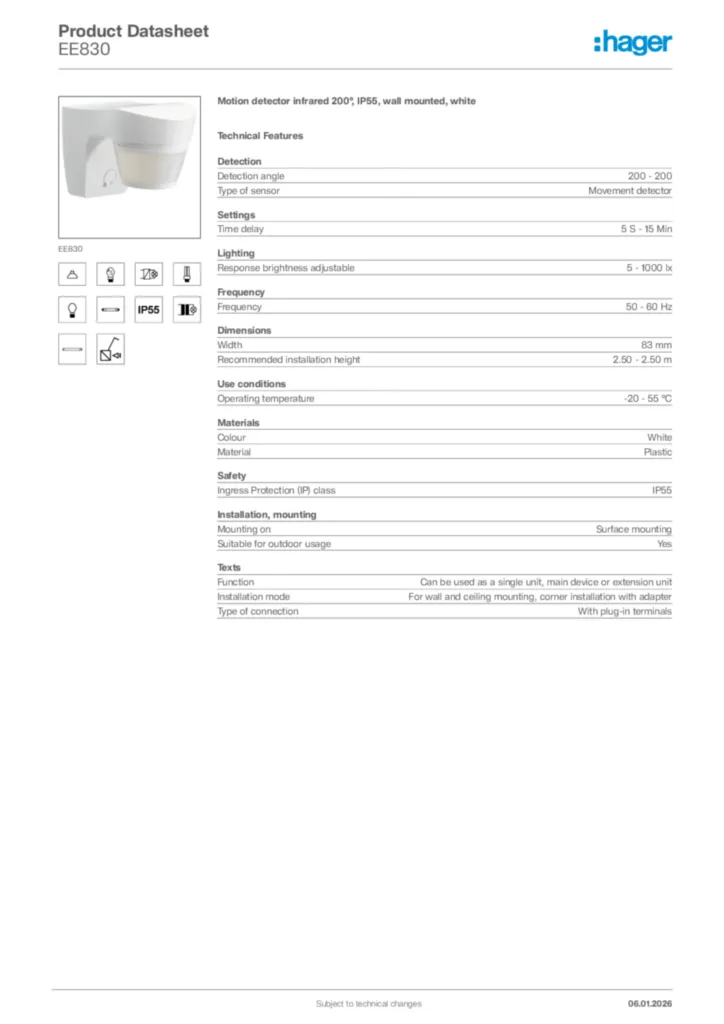

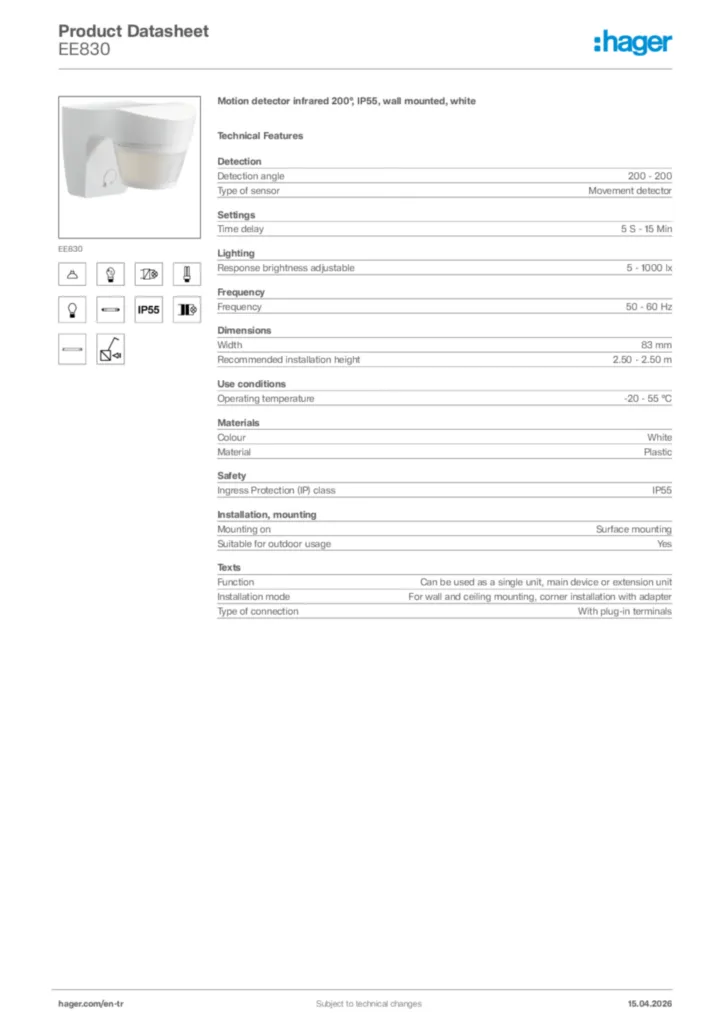

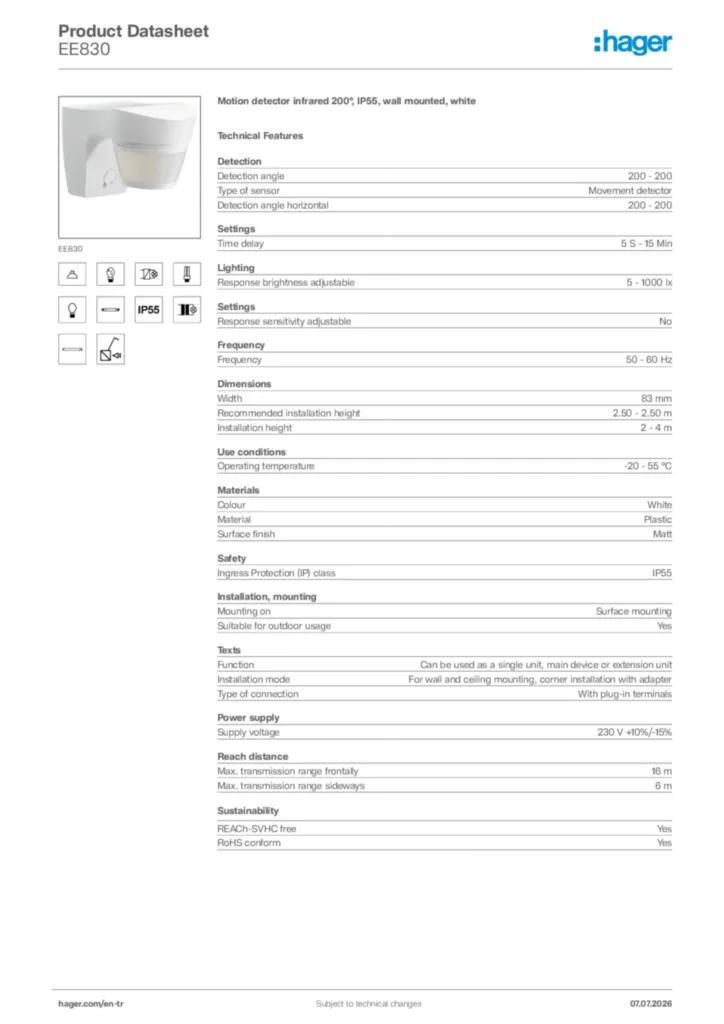

Hager Product data sheet EE830
Motion detector infrared 200°, IP55, wall mounted, white
PDF -
Installation manual
Annexe pour detecteurs de mouvement confort 140, 200° EE820, EE830
Installation manual en-GB, es-ES, fr-FR, de-DE, nl-NL, nn-NO, pt-PT, sv-SE 2020-01-01
PDF557,10 kB
Bedienungsanleitung Bewegungsmelder 140, 200° EE82.., EE83..
Installation manual fr-FR, de-DE 2020-01-01
PDF1,60 MB
Installation manual en-GB, nl-NL 2015-01-08
PDF2,96 MB -
Product attachment
Setting instruction for EE82xx-EE83xx - Motion detector (FR-DE-EN-NL-ES-PT-SV-NO, 2016-09)
Product attachment en-GB, es-ES, fr-FR, de-DE, nl-NL, nn-NO, pt-PT, sv-SE 2016-11-29
PDF1,28 MB -
Declaration of conformity
*
Declaration of conformity International 2023-07-17
PDF105,41 kB
