Auxiliary contact for RCCB 2(1C+1O) 6A 240V AC CZ001
EAN
3250611860013
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 12 products available
Referenced by
-
CF264JRCCB 2P 63A 300mA AC Class
-
CD241JRCCB 2P 40A 30mA AC Class
-
CF241JRCCB 2P 40A 300mA AC Class
-
CD441JRCCB 4P 40A 30mA AC Class
-
CF226JRCCB 2P 25A 300mA AC Class
-
CF464JRCCB 4P 63A 300mA AC Class
-
CD264JRCCB 2P 63A 30mA AC Class
-
CD426JRCCB 4P 25A 30mA AC Class
-
CF426JRCCB 4P 25A 300mA AC Class
-
CD464JRCCB 4P 63A 30mA AC Class
-
CF441JRCCB 4P 40A 300mA AC Class
-
CD226JRCCB 2P 25A 30mA AC Class
Technical properties
Electric current
-
Rated current6 A
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeClick mounting
Capacity
-
Number of modules1
Connection
-
Cross-section flexible conductor4 mm²
-
Cross-section rigid conductor6 mm²
Voltage
-
Rated insulation voltage Ui500 V
-
Type voltage supplyAC
Frequency
-
Frequency50 - 50 Hz
Endurance
-
Number of mechanical operations12,000
-
Electric endurance in number of cycles6,000
Use conditions
-
Operating temperature-25 - 60 °C
-
Storage/transport temperature-40 - 80 °C
Power
-
Total power loss under IN0.10 W
Dimensions
-
Width18 mm
Equipment
-
Number of INV contacts0
-
Number of NC contacts1
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

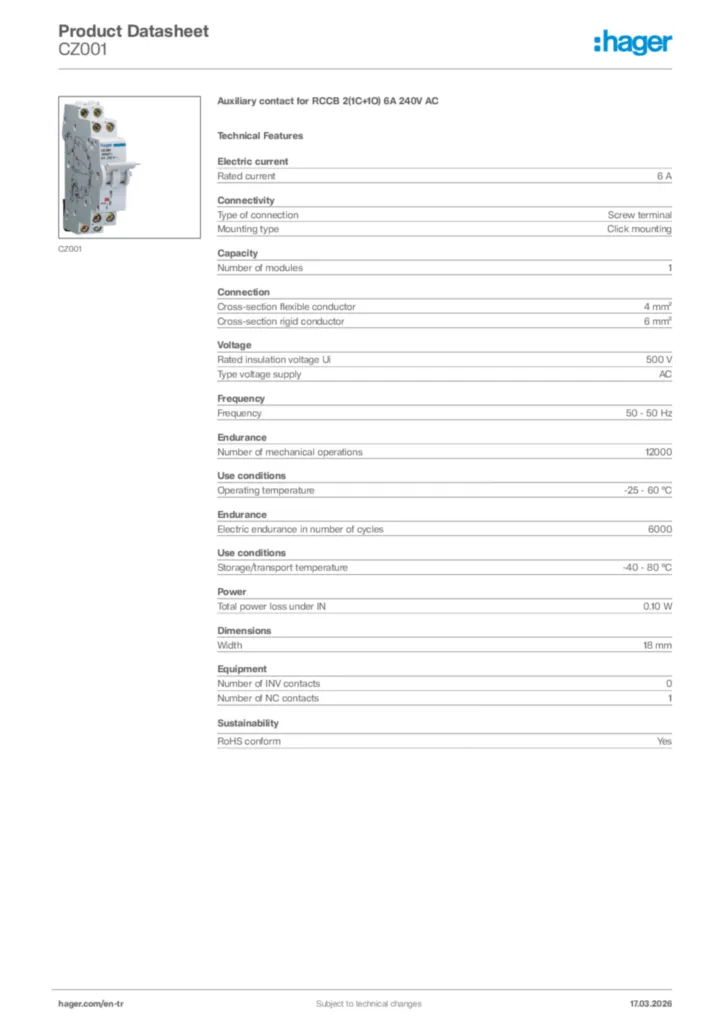

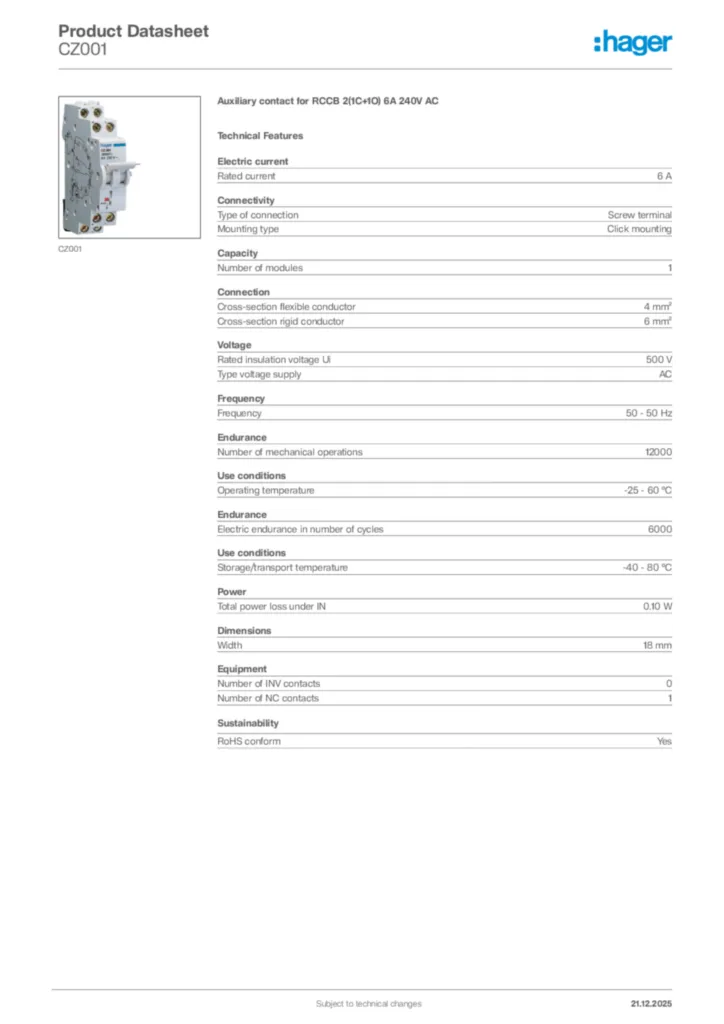

Product datasheet
Hager Product data sheet CZ001
Auxiliary contact for RCCB 2(1C+1O) 6A 240V AC
PDF -
Installation manual
Notice Auxiliaire de signalisation MZ202
Installation manual cs-CZ, en-GB, es-ES, fr-FR, de-DE, it-IT, pt-PT 2015-04-07
PDF698,03 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-04-26
PDF182,48 kB
Declaration
Declaration of conformity International 2022-04-26
PDF223,50 kB
More documentation
