  • Home
  • Catalog
  • Building manage­ment system KNX
  • Sensors
  • Motion and pres­ence detectors
  • 80262180
  • Building manage­ment system KNX

S.x KNX (TP+EASY) Movement detector module 1,10m 80262180

EAN
3250617154116
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

S.x KNX (TP+EASY) Movement detector module 1,10m

80262180

  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Technical properties

Dimen­sions
  • Recom­mended install­a­tion height
    1.10 - 1.10 m
Settings
  • Supported config­ur­a­tion mode
    ETS, easy
  • Minimal duty cycle
    10 s
Func­tions
  • Maximal duty cycle
    30 min
Connectivity
  • With bus system KNX radio
    No
Voltage
  • Oper­ating voltage over bus
    21 - 32 V
Scope of delivery
  • Bus connec­tion included
    Yes
Elec­tric current
  • Bus current consump­tion data transfer
    10 mA
Lighting
  • Response bright­ness adjustable
    5 - 1,000 lx
Detec­tion
  • Detec­tion angle adjustable
    45 - 90 °
  • Detec­tion angle hori­zontal
    90 - 180
Use condi­tions
  • Oper­ating temper­ature
    -5 - 45 °C
Mater­ials
  • Material
    Metal, Plastic
Texts
  • Push button
    With button for auto­mat­ic/per­manent ON/per­manent OFF
  • Oper­ating mode
    With test mode, Master­/slave oper­a­tion for covering large detec­tion areas, With 3 oper­ating modes: auto­mat­ic/per­manent ON/per­manent OFF
  • Func­tion
    Pres­ence simu­la­tion, With party func­tion
  • Install­a­tion mode
    With spreader claws, With dismant­ling protec­tion

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration 80262180
PDF
Hager RoHS report 80262180
PDF

Downloads

  • Image 80262180 | Hager

    Product Image 80262180

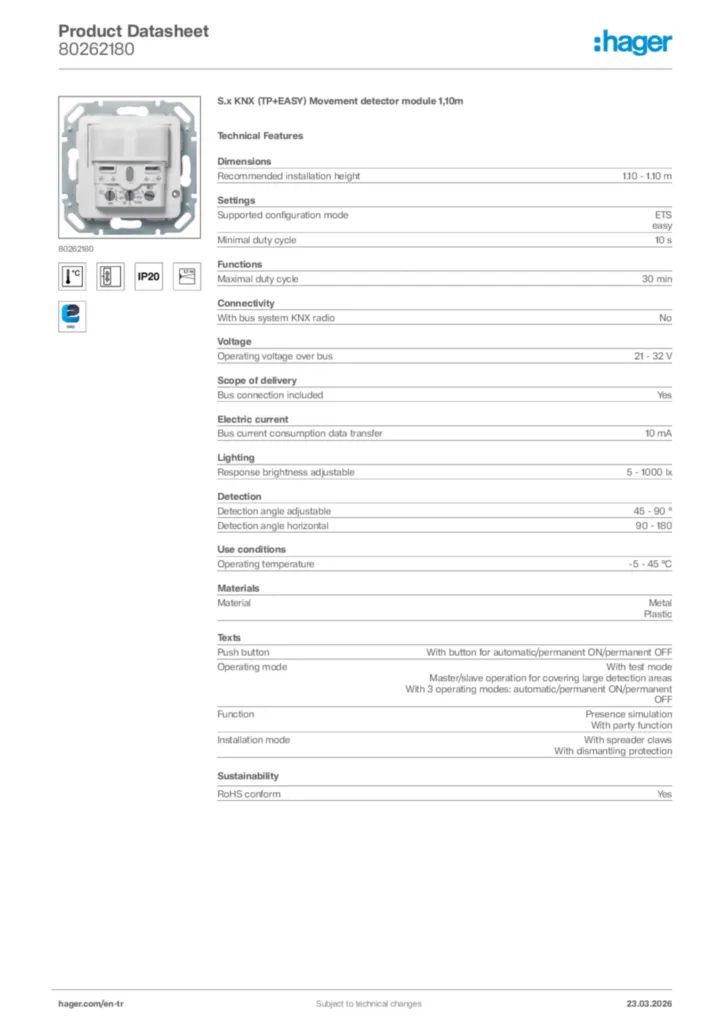

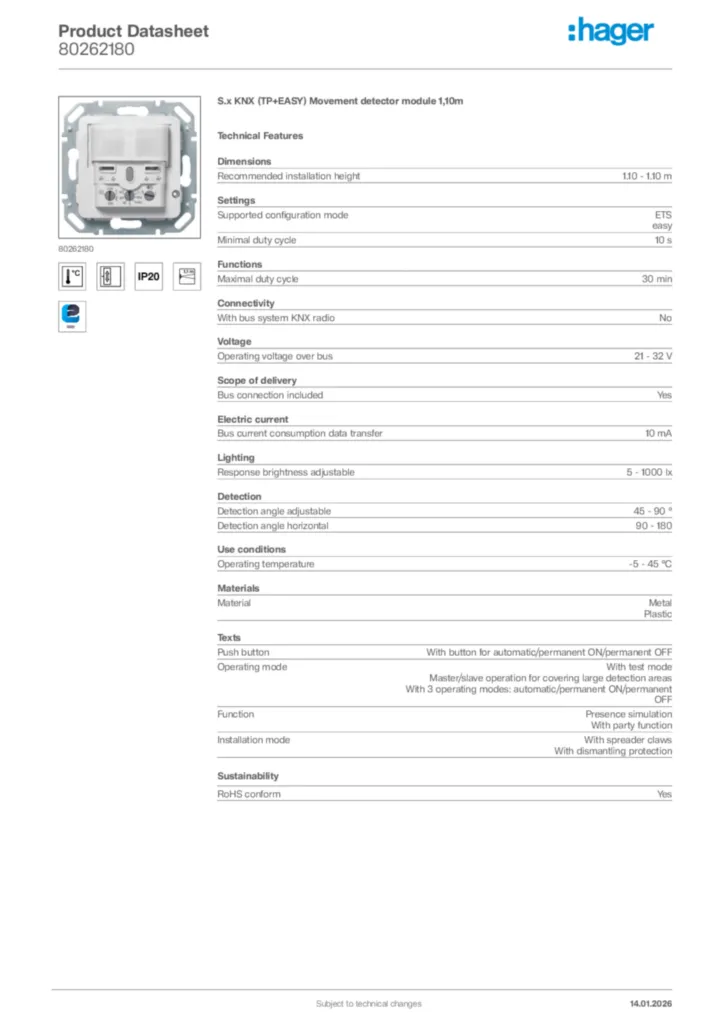

  • Product datasheet

    Image Hager Product data sheet 80262180 | Hager

    Hager Product data sheet 80262180

    S.x KNX (TP+EASY) Movement detector module 1,10m

    PDF

  • Installation manual

    Image Installation manual en-GB, tr-TR 2021-10-04 | Hager

    Installation manual en-GB, tr-TR 2021-10-04

    PDF
    1,28 MB

  • KNX product database

    Image ETS4-ETS5 (vers. 1.1) - KNX Database for KNX Motion detector with BCU | Hager

    ETS4-ETS5 (vers. 1.1) - KNX Database for KNX Motion detector with BCU

    KNX product database International 2020-01-01

    KNXPROD
    254,40 kB
    Image ETS Database for 80262xxx | Hager

    ETS Database for 80262xxx

    KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2023-08-25

    KNXPROD
    254,40 kB

  • Application Guide

    Image Application description ETS for 802621xx-802622xx - Motion detector with bus coupling unit (EN, 2016-08), easy link | Hager

    Application description ETS for 802621xx-802622xx - Motion detector with bus coupling unit (EN, 2016-08), easy link

    Application Guide en-GB, pl-PL 2016-08-04

    PDF
    2,34 MB
    Image Application description ETS for KNX Motion detector (EN, 2016-02) | Hager

    Application description ETS for KNX Motion detector (EN, 2016-02)

    Application Guide International 2016-02-09

    PDF
    2,90 MB
    Image Application description ETS for KNX Motion detector (TR, 2016-02) | Hager

    Application description ETS for KNX Motion detector (TR, 2016-02)

    Application Guide tr-TR 2016-02-19

    PDF
    4,39 MB

  • Declaration of conformity

    Image Declaration of Conformity | Hager

    Declaration of Conformity

    Declaration of conformity International 2021-07-30

    PDF
    257,09 kB
