KNX Touch Control TFT display, intg bus coupling unit, KNX, black glossy 75740101

EAN
3250617032582
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

KNX Touch Control TFT display, intg bus coupling unit, KNX, black glossy

75740101

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Technical properties

Install­a­tion, mounting
  • Mounting on
    Flush mounting
Use condi­tions
  • Oper­ating temper­ature
    0 - 50 °C
Elec­tric current
  • Bus current consump­tion data transfer
    10 mA
Dimen­sions
  • Built-in depth
    25.50 mm
  • Built-in depth flush-­mounted boxes
    29 mm
  • Height
    75 mm
  • Width
    95 mm
  • Depth
    44 mm
Equip­ment
  • Number of actu­ation points
    6
Mater­ials
  • Colour
    Black
  • RAL code
    9005
  • Material
    Metal, Plastic
  • Surface finish
    Glossy
Screen
  • With display
    Yes
Texts
  • Func­tion
    16 time switching func­tions and alarm clock, Logic modules: 4x AND, 4x OR with 4 inputs each, Func­tions such as switch­ing, dimming, blind control, up to 16 scenes, climate control, activ­a­tion of alarm systems, date, time of day, Auto­matic func­tion for control of light­ing, blinds and roller shut­ter­s,air condi­tioning and vent­il­a­tion systems, Disabling func­tion for cleaning the user inter­face

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration 75740101
PDF
Hager RoHS report 75740101
PDF

Downloads

  • Image 75740101 | Hager

    Product Image 75740101

  • Product datasheet

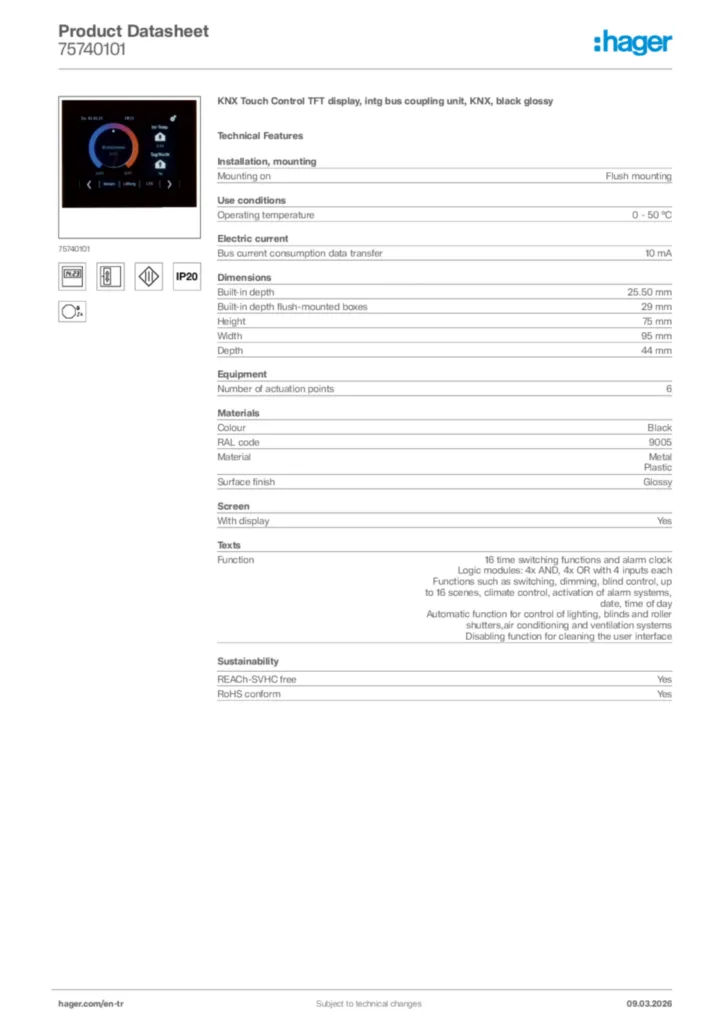

    Image Hager Product data sheet 75740101 | Hager

    Hager Product data sheet 75740101

    KNX Touch Control TFT display, intg bus coupling unit, KNX, black glossy

    PDF

  • Installation manual

    Image Manual for 75740101 - KNX Touch Control (DE-EN-FR-IT-NL, 2021-03) | Hager

    Manual for 75740101 - KNX Touch Control (DE-EN-FR-IT-NL, 2021-03)

    Installation manual International 2022-02-16

    PDF
    9,38 MB

  • KNX product database

    Image KNX Database (ETS4) for KNX TOUCH CONTROLL DE-EN | Hager

    KNX Database (ETS4) for KNX TOUCH CONTROLL DE-EN

    KNX product database International 2020-01-01

    KNXPROD
    6,38 MB
    Image KNX Database (ETS4) for KNX TOUCH CONTROLL EN-FR | Hager

    KNX Database (ETS4) for KNX TOUCH CONTROLL EN-FR

    KNX product database International 2020-01-01

    KNXPROD
    6,97 MB

  • Application Guide

    Image Application description ETS for 75740101 - KNX Touch Control (EN, 2016-07), ETS link | Hager

    Application description ETS for 75740101 - KNX Touch Control (EN, 2016-07), ETS link

    Application Guide en-GB, pl-PL 2016-07-04

    PDF
    7,93 MB
    Image Application description ETS for 75740101 - KNX Touch Control Icon (EN, 2015-07) | Hager

    Application description ETS for 75740101 - KNX Touch Control Icon (EN, 2015-07)

    Application Guide en-GB, pl-PL 2015-07-22

    PDF
    1,70 MB

  • Declaration of conformity

    Image Declaration of Conformity | Hager

    Declaration of Conformity

    Declaration of conformity International 2021-03-24

    PDF
    904,06 kB
    Image Declaration of Conformity | Hager

    Declaration of Conformity

    Declaration of conformity International 2021-03-24

    PDF
    904,06 kB
