B.IQ push-button 5gang thermostat, display, KNX - B.IQ, glass black 75665592

EAN
4011334372233
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

B.IQ push-button 5gang thermostat, display, KNX - B.IQ, glass black

75665592

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Must-have accessories

Previous
Previous
75040001
75040001
Bus coupling unit flush-mtd, KNX
Add to a list
Add to a list

Compatible products

  • Referenced by 1 products available

Referenced by

  • 75040001

    Bus coupling unit flush-mtd, KNX
    0.00 €  / *

Technical properties

Install­a­tion, mounting
  • Mounting on
    Flush mounting
Use condi­tions
  • Oper­ating temper­ature
    -5 - 45 °C
Func­tions
  • With room temper­ature controller
    Yes
Dimen­sions
  • Height
    178.80 mm
  • Width
    88.50 mm
  • Depth
    16.65 mm
Equip­ment
  • Number of actu­ation points
    12
Controls and indic­ators
  • With LED indic­a­tion
    Yes
Mater­ials
  • Colour
    Black
  • RAL code
    9005
  • Material
    Glass
  • Surface finish
    Glossy
Accessories
  • Has labelling field
    No
Screen
  • With display
    Yes
Texts
  • Func­tion
    For switch, push-but­ton, dimmer, blind and ther­mo­stat func­tions, With valve protec­tion func­tion, Button help func­tion can be activ­ated
  • Oper­ating mode
    Controller oper­ating modes: comfort, standby, night and frost/heat protec­tion mode
  • Protec­tion
    With dismant­ling protec­tion
  • Temper­ature
    Temper­ature meas­ure­ment via internal Temper­ature sensor and/or external commu­nic­a­tion object (weighting ratio para­met­eris­able), Provi­sion of the internal temper­ature value via commu­nic­a­tion object

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration 75665592
PDF
Hager RoHS report 75665592
PDF

Downloads

  • Image 75665592 | Hager

    Product Image 75665592

  • Product datasheet

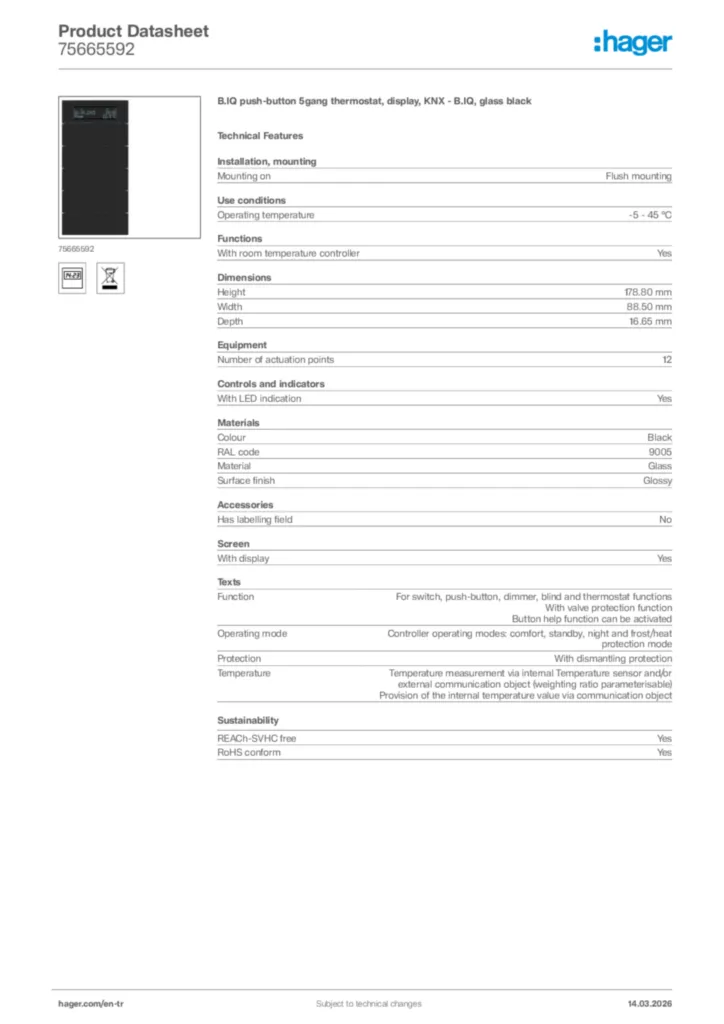

    Image Hager Product data sheet 75665592 | Hager

    Hager Product data sheet 75665592

    B.IQ push-button 5gang thermostat, display, KNX - B.IQ, glass black

    PDF

  • Installation manual

    Image Manual for 7566xx - B.IQ push-button with thermostat (EN, 2021-01) | Hager

    Manual for 7566xx - B.IQ push-button with thermostat (EN, 2021-01)

    Installation manual en-GB 2007-01-23

    PDF
    2,09 MB
    Image Manual for 7566xx - B.IQ push-button with thermostat (EN, 2021-01) | Hager

    Manual for 7566xx - B.IQ push-button with thermostat (EN, 2021-01)

    Installation manual en-GB 2007-01-23

    PDF
    164,52 kB

  • Tool

    Image Label templates (DesignPro 2000) for B.IQ touch sensors - 7516xx-7566xx, as from: 2014-01 | Hager

    Label templates (DesignPro 2000) for B.IQ touch sensors - 7516xx-7566xx, as from: 2014-01

    Tool de-DE 2023-10-30

    ZIP
    72,77 kB

  • KNX product database

    Image KNX plugin for 7566xx-BIQ - B.IQ push-button with thermostat (V205) | Hager

    KNX plugin for 7566xx-BIQ - B.IQ push-button with thermostat (V205)

    KNX product database en-GB, de-DE 2023-08-25

    EXE
    9,16 MB
    Image KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V107B) | Hager

    KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V107B)

    KNX product database de-DE 2023-08-25

    ZIP
    7,59 MB
    Image KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V107B) | Hager

    KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V107B)

    KNX product database de-DE 2023-08-25

    EXE
    6,34 MB
    Image KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B) | Hager

    KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B)

    KNX product database en-GB 2023-08-25

    EXE
    7,72 MB
    Image KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B) | Hager

    KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B)

    KNX product database de-DE 2023-08-25

    EXE
    6,35 MB
    Image KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B) | Hager

    KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B)

    KNX product database en-GB 2023-08-25

    EXE
    6,35 MB
    Image KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B) | Hager

    KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B)

    KNX product database de-DE 2023-08-25

    EXE
    7,72 MB

  • Application Guide

    Image Application description ETS for 75663xx-75664xx-75665xx - B.IQ push-button with thermostat (EN, 2007-01) | Hager

    Application description ETS for 75663xx-75664xx-75665xx - B.IQ push-button with thermostat (EN, 2007-01)

    Application Guide en-GB 2020-01-01

    PDF
    200,30 kB
    Image Application description ETS for 756635xx-756636xx-756645xx-756646xx-756655xx-756656xx - B.IQ push-button with thermostat (EN, 2004-09) | Hager

    Application description ETS for 756635xx-756636xx-756645xx-756646xx-756655xx-756656xx - B.IQ push-button with thermostat (EN, 2004-09)

    Application Guide en-GB 2020-01-01

    PDF
    2,39 MB
    Image Application description ETS for 756635xx-756636xx-756645xx-756646xx-756655xx-756656xx - B.IQ push-button with thermostat (EN, 2007-07) | Hager

    Application description ETS for 756635xx-756636xx-756645xx-756646xx-756655xx-756656xx - B.IQ push-button with thermostat (EN, 2007-07)

    Application Guide en-GB 2020-01-01

    PDF
    2,63 MB

  • Declaration of conformity

    Image Declaration of Conformity | Hager

    Declaration of Conformity

    Declaration of conformity International 2021-05-04

    PDF
    269,33 kB
    Image Declaration of Conformity | Hager

    Declaration of Conformity

    Declaration of conformity International 2021-05-04

    PDF
    269,68 kB
