Push-button 2gang with room thermostat, display, K.1 75662770
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
75040001
Bus coupling unit flush-mtd, KNX
Compatible products
-
Referenced by 18 products available
Referenced by
-
13437009Frame 4gang vert., K.1, p. white glossy
-
13537006Frame 5gang vert., K.1, ant. matt, lacq.
-
13437006Frame 4gang vert., K.1, ant. matt, lacq.
-
13337006Frame 3gang vert., K.1, ant. matt, lacq.
-
13937006Frame 5gang hor., K.1, ant. matt, lacq.
-
13837006Frame 4gang hor., K.1, ant. matt, lacq.
-
13737006Frame 3gang hor., K.1, ant. matt, lacq.
-
13637006Frame 2gang hor., K.1, ant. matt, lacq.
-
13537009Frame 5gang vert., K.1, p. white glossy
-
13137009Frame 1gang, K.1, p. white glossy
-
13337009Frame 3gang vert., K.1, p. white glossy
-
13937009Frame 5gang hor., K.1, p. white glossy
-
13837009Frame 4gang hor., K.1, p. white glossy
-
13737009Frame 3gang hor., K.1, p. white glossy
-
13637009Frame 2gang hor., K.1, p. white glossy
-
13237006Frame 2gang vert., K.1, ant. matt, lacq.
-
13137006Frame 1gang, K.1, ant. matt, lacq.
-
13237009Frame 2gang vert., K.1, p. white glossy
Technical properties
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Functions
-
With room temperature controllerYes
Dimensions
-
Height55.10 mm
-
Width70.90 mm
-
Depth14.35 mm
Equipment
-
Number of actuation points6
Controls and indicators
-
With LED indicationYes
Materials
-
ColourPolar white
-
RAL code9010
-
MaterialThermoplastic
-
Surface finishGlossy
Accessories
-
Has labelling fieldYes
Screen
-
With displayYes
Texts
-
FunctionFor switch, push-button, dimmer, blind and thermostat functions
-
Operating modeController operating modes: comfort, standby, night and frost/heat protection mode
-
ProtectionWith dismantling protection
-
TemperatureTemperature measurement via internal and/or external sensor with mean value formation
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

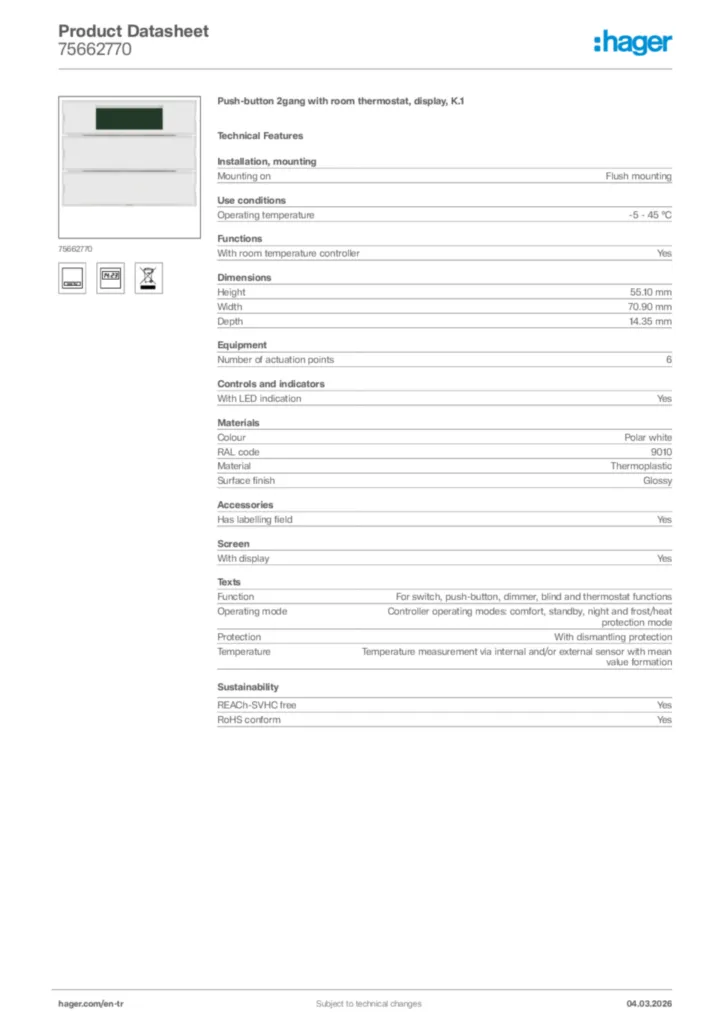

Product datasheet
