    Soc.out. earth.pin+hinged cover,enhncd contact prot.,screw-in lift term.,R1.3,wh 6765832089

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Also available in

    Product colour - Polar white
    Black
    Black
    Polar white
    Polar white

    Soc.out. earth.pin+hinged cover,enhncd contact prot.,screw-in lift term.,R1.3,wh

    6765832089

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Accessor­ies/s­pare parts for domestic switching devices 1 products available

    Compatible products

    • Referenced by 142 products available

    Complete your system

    • Accessor­ies/s­pare parts for domestic switching devices
    • 10107600

      Sealing set for soc. out.s/centre plates, R.1/R.3, trans.
      0.00 €  / *

    Referenced by

    • 10142114

      Frame 4gang, R.1, stainless steel/p. white
      0.00 €  / *
    • 10112216

      Frame 1gang, R.3, glass black
      0.00 €  / *
    • 10142209

      Frame 4gang, R.3, glass p. white
      0.00 €  / *
    • 10132209

      Frame 3gang, R.3, glass p. white
      0.00 €  / *
    • 10122209

      Frame 2gang, R.3, glass p. white
      0.00 €  / *
    • 10112209

      Frame 1gang, R.3, glass p. white
      0.00 €  / *
    • 10142245

      Frame 4gang, R.3, black glossy
      0.00 €  / *
    • 10132245

      Frame 3gang, R.3, black glossy
      0.00 €  / *
    • 10122245

      Frame 2gang, R.3, black glossy
      0.00 €  / *
    • 10112245

      Frame 1gang, R.3, black glossy
      0.00 €  / *
    • 10142289

      Frame 4gang, R.3, p. white glossy
      0.00 €  / *
    • 10132289

      Frame 3gang, R.3, p. white glossy
      0.00 €  / *
    • 10122289

      Frame 2gang, R.3, p. white glossy
      0.00 €  / *
    • 10112289

      Frame 1gang, R.3, p. white glossy
      0.00 €  / *
    • 10142104

      Frame 4gang, R.1, stainless steel/black
      0.00 €  / *
    • 10132104

      Frame 3gang, R.1, stainless steel/black
      0.00 €  / *
    • 10122104

      Frame 2gang, R.1, stainless steel/black
      0.00 €  / *
    • 10112104

      Frame 1gang, R.1, stainless steel/black
      0.00 €  / *
    • 10112174

      Frame 1gang, R.1, al./p. white
      0.00 €  / *
    • 10132116

      Frame 3gang, R.1, glass black
      0.00 €  / *

    Technical properties

    Voltage
    • Rated voltage
      250 V
    Elec­tric current
    • Rated current
      16 A
    Frequency
    • Frequency
      50 - 60 Hz
    Mater­ials
    • Colour
      Polar white
    • RAL code
      9010
    • Surface finish
      Glossy
    • Material
      Ther­mo­plastic
    • Treat­ment
      Untreated
    Dimen­sions
    • Height
      71 mm
    • Width
      71 mm
    • Depth
      48.90 mm
    • Number of units
      1
    • Built-in depth flush-­mounted boxes
      31 mm
    • Built-in depth
      31.30 mm
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    Connectivity
    • Type of connec­tion
      Screw terminal
    • Mounting type
      Screw mounting, Claw mounting
    Equip­ment
    • Connect­or/plug type socket outlet
      Earthing pin
    • Rotated central insert
      No
    • With hinged lid
      Yes
    • With round protective earth pin
      Yes
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      No
    Cover, door
    • Type of lid
      Self-closing hinged cover
    Capa­city
    • Number of modules
      1
    Safety
    • With enhanced contact protec­tion
      Yes
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP20
    Func­tions
    • With orient­a­tion lighting
      No
    • With func­tion lighting
      No
    • Related Systems
      R.x

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    Halogen free Yes

    Certifications and documents

    Socket-outlet 2-gang Wago plug/clamp technique C-Profile in traffic white
    PDF
    48,73 MB
    Hager REACH declaration 6765832089
    PDF
    Hager RoHS report 6765832089
    PDF

    Downloads

    • Image 6765832089 | Hager

      Product Image 6765832089

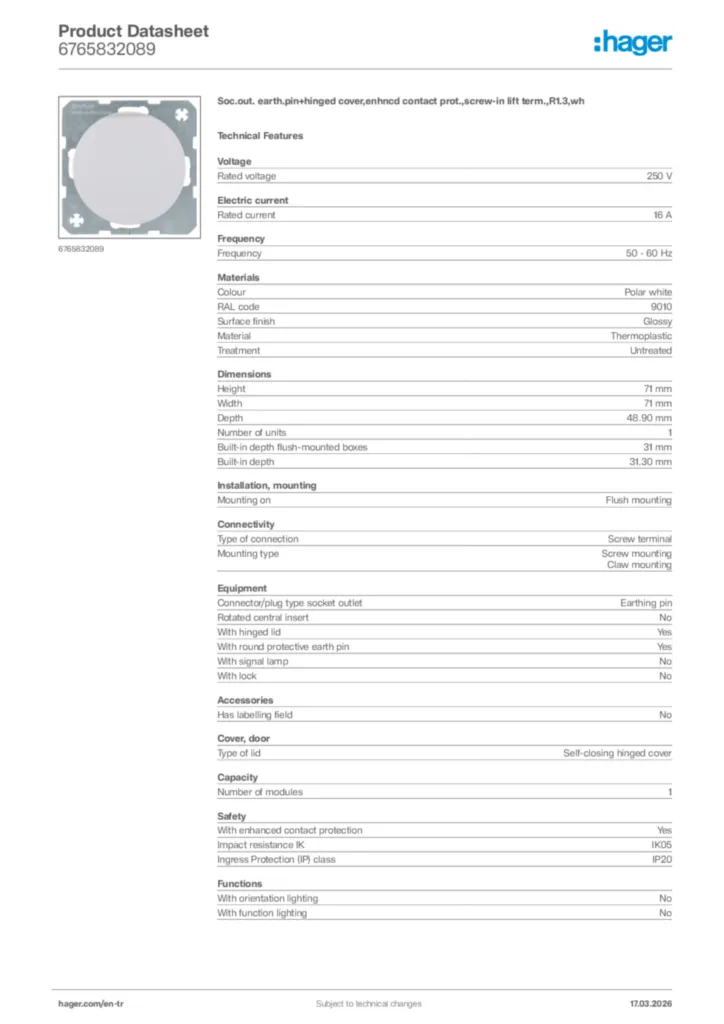

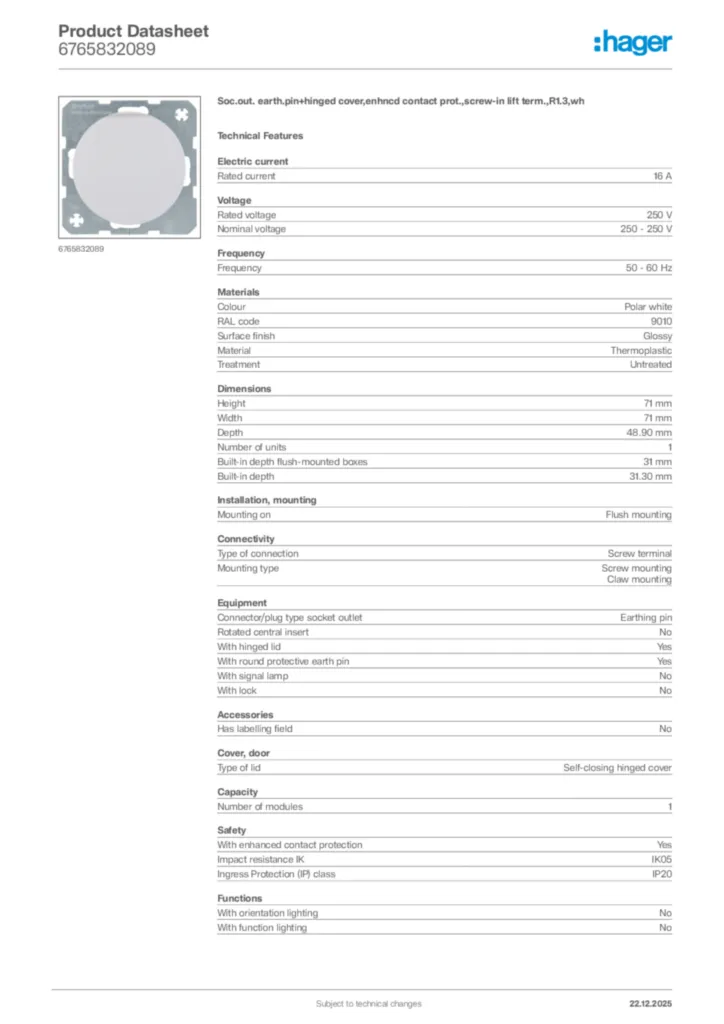

    • Product datasheet

      Image Hager Product data sheet 6765832089 | Hager

      Hager Product data sheet 6765832089

      Soc.out. earth.pin+hinged cover,enhncd contact prot.,screw-in lift term.,R1.3,wh

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-09-28

      PDF
      295,65 kB
