Soc.out. earth. pin, enhncd contact prot., screw-in lift term.,1930/glass,bl.gl. 67657901
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 16 products available
Referenced by
-
138169Frame 1gang, 1930 Porzellan, porcelain, p. white glossy
-
138165Frame 1gang, 1930 Porzellan, porcelain, black glossy
-
1091Glass frame 1gang, clear glossy
-
109300Glass centre frame, clear glossy
-
109200Glass end frame, clear glossy
-
138159Centre frame, 1930, p. white glossy
-
138151Centre frame, 1930, black glossy
-
138149Eend frame, 1930, p. white glossy
-
138141End frame, 1930, black glossy
-
138109Frame 1gang, 1930, p. white glossy
-
138101Frame 1gang, 1930, black glossy
-
138209Frame, 1gang for centre plate Ø 58 mm, 1930, p. white glossy
-
138201Frame, 1gang for centre plate Ø 58 mm, 1930, black glossy
-
138129Frame 2gang, 1930, p. white glossy
-
138121Frame 2gang, 1930, black glossy
-
138139Frame 3gang, 1930, p. white glossy
Technical properties
Voltage
-
Rated voltage250 V
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourBlack
-
RAL code9005
-
Surface finishGlossy
-
MaterialDuroplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth44.10 mm
-
Built-in depth flush-mounted boxes31 mm
-
Built-in depth31.30 mm
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletEarthing pin
-
Rotated central insertYes
-
With hinged lidNo
-
With round protective earth pinYes
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK02
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
Identification
-
With imprintNo
-
Related SystemsSerie 1930 / Serie Glas
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

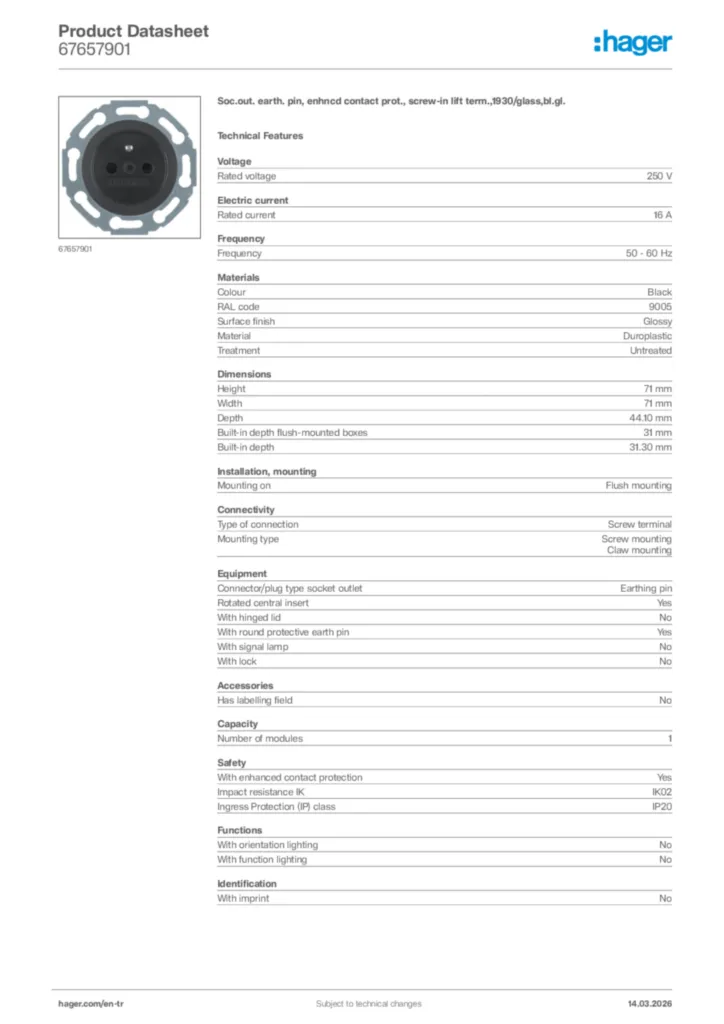

Product datasheet
Hager Product data sheet 67657901
Soc.out. earth. pin, enhncd contact prot., screw-in lift term.,1930/glass,bl.gl.
PDF -
Declaration of performance
Declaration of performance en-GB 2026-02-20
PDF569,83 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-09-28
PDF295,65 kB
