Soc.out. earth.pin+control LED,enhncd contact prot.,screw-in lift term.,R.1.3,wh 6765092089

EAN
4011334385134
Packaging
10 Pieces

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Soc.out. earth.pin+control LED,enhncd contact prot.,screw-in lift term.,R.1.3,wh

6765092089

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Cover frame for domestic switching devices 10 products available

Compatible products

  • Referenced by 142 products available

Complete your system

  • Cover frame for domestic switching devices
  • 10112189

    Frame 1gang, R.1, p. white glossy
    0.00 €  / *
  • 10122189

    Frame 2gang, R.1, p. white glossy
    0.00 €  / *
  • 10132189

    Frame 3gang, R.1, p. white glossy
    0.00 €  / *
  • 10142189

    Frame 4gang, R.1, p. white glossy
    0.00 €  / *
  • 10112289

    Frame 1gang, R.3, p. white glossy
    0.00 €  / *
  • 10122289

    Frame 2gang, R.3, p. white glossy
    0.00 €  / *
  • 10132289

    Frame 3gang, R.3, p. white glossy
    0.00 €  / *
  • 10142289

    Frame 4gang, R.3, p. white glossy
    0.00 €  / *
  • 10152189

    Frame 5gang, R.1, p. white glossy
    0.00 €  / *
  • 10152289

    Frame 5gang, R.3, p. white glossy
    0.00 €  / *

Referenced by

  • 10142114

    Frame 4gang, R.1, stainless steel/p. white
    0.00 €  / *
  • 10112216

    Frame 1gang, R.3, glass black
    0.00 €  / *
  • 10142209

    Frame 4gang, R.3, glass p. white
    0.00 €  / *
  • 10132209

    Frame 3gang, R.3, glass p. white
    0.00 €  / *
  • 10122209

    Frame 2gang, R.3, glass p. white
    0.00 €  / *
  • 10112209

    Frame 1gang, R.3, glass p. white
    0.00 €  / *
  • 10142245

    Frame 4gang, R.3, black glossy
    0.00 €  / *
  • 10132245

    Frame 3gang, R.3, black glossy
    0.00 €  / *
  • 10122245

    Frame 2gang, R.3, black glossy
    0.00 €  / *
  • 10112245

    Frame 1gang, R.3, black glossy
    0.00 €  / *
  • 10142289

    Frame 4gang, R.3, p. white glossy
    0.00 €  / *
  • 10132289

    Frame 3gang, R.3, p. white glossy
    0.00 €  / *
  • 10122289

    Frame 2gang, R.3, p. white glossy
    0.00 €  / *
  • 10112289

    Frame 1gang, R.3, p. white glossy
    0.00 €  / *
  • 10142104

    Frame 4gang, R.1, stainless steel/black
    0.00 €  / *
  • 10132104

    Frame 3gang, R.1, stainless steel/black
    0.00 €  / *
  • 10122104

    Frame 2gang, R.1, stainless steel/black
    0.00 €  / *
  • 10112104

    Frame 1gang, R.1, stainless steel/black
    0.00 €  / *
  • 10112174

    Frame 1gang, R.1, al./p. white
    0.00 €  / *
  • 10132116

    Frame 3gang, R.1, glass black
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    16 A
Voltage
  • Rated voltage
    250 V
  • Nominal voltage
    250 - 250 V
Frequency
  • Frequency
    50 - 60 Hz
Mater­ials
  • Colour
    Polar white
  • RAL code
    9010
  • Surface finish
    Glossy
  • Material
    Ther­mo­plastic
  • Treat­ment
    Untreated
Dimen­sions
  • Height
    71 mm
  • Width
    71 mm
  • Number of units
    1
  • Built-in depth
    32 mm
Install­a­tion, mounting
  • Mounting on
    Flush mounting
Connectivity
  • Type of connec­tion
    Screw terminal
  • Mounting type
    Screw mounting, Claw mounting
Equip­ment
  • Connect­or/plug type socket outlet
    Earthing pin
  • Rotated central insert
    No
  • With hinged lid
    No
  • With round protective earth pin
    Yes
  • With signal lamp
    No
  • With lock
    No
Accessories
  • Has labelling field
    No
Capa­city
  • Number of modules
    1
Controls and indic­ators
  • Type of lighting for the install­a­tion devices
    Integ­rated oper­ating control light
Safety
  • With enhanced contact protec­tion
    Yes
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP20
Func­tions
  • With orient­a­tion lighting
    No
  • With func­tion lighting
    Yes
  • Related Systems
    R.x

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Socket-outlet 2-gang Wago plug/clamp technique C-Profile in traffic white
PDF
48,73 MB
Hager REACH declaration 6765092089
PDF
Hager RoHS report 6765092089
PDF

Downloads

  • Image 6765092089 | Hager

    Product Image 6765092089

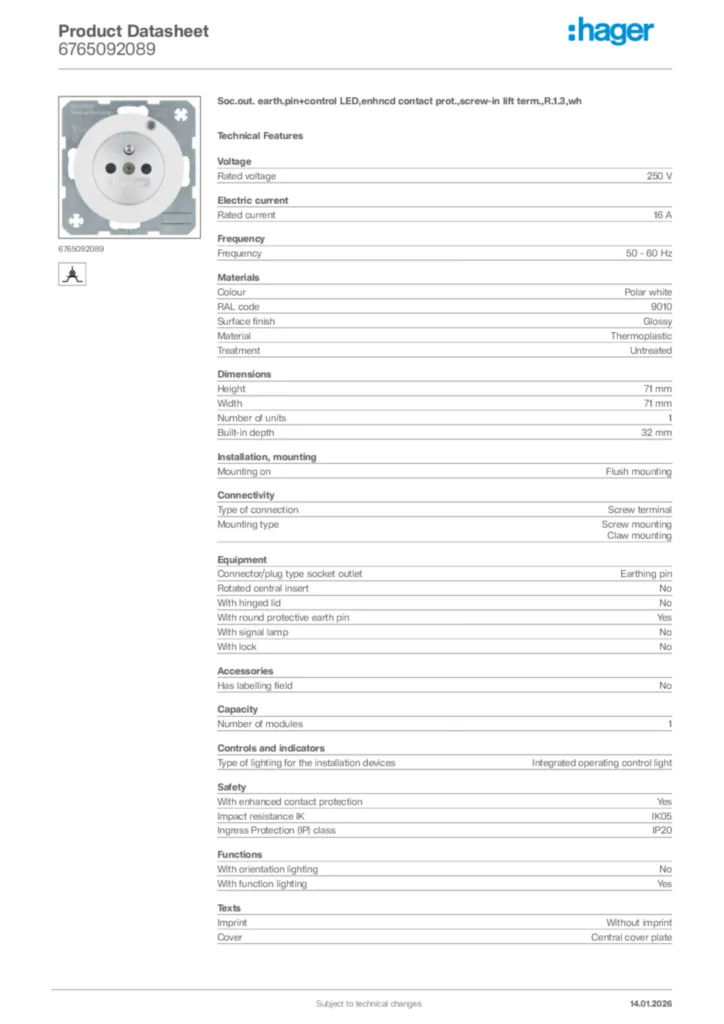

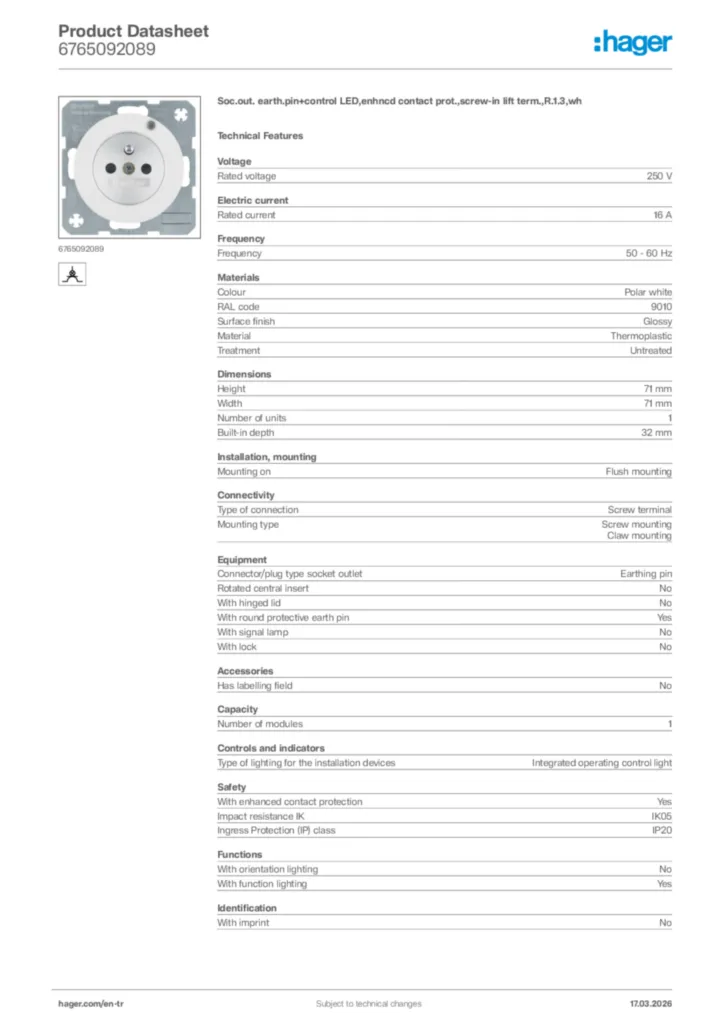

  • Product datasheet

    Image Hager Product data sheet 6765092089 | Hager

    Hager Product data sheet 6765092089

    Soc.out. earth.pin+control LED,enhncd contact prot.,screw-in lift term.,R.1.3,wh

    PDF
