3gang SCHUKO soc. out. cover plate, S.1, p. white, matt, plastic 47661909

EAN
4011334254294
Packaging
5 Pieces

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

3gang SCHUKO soc. out. cover plate, S.1, p. white, matt, plastic

47661909

  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Technical properties

Elec­tric current
  • Rated current
    16 A
Voltage
  • Rated voltage
    250 V
  • Nominal voltage
    250 - 250 V
Frequency
  • Frequency
    50 - 60 Hz
Mater­ials
  • Colour
    Polar white
  • RAL code
    9010
  • Surface finish
    Matt
  • Material
    Ther­mo­plastic
  • Treat­ment
    Untreated
Dimen­sions
  • Height
    80.50 mm
  • Width
    151.50 mm
  • Number of units
    3
Connec­tion
  • Connect­or/plug type
    Plug­able clamp
  • Conductor cross-sec­tion
    1.0 - 2.5 mm²
Install­a­tion, mounting
  • Mounting on
    Flush mounting
Connectivity
  • Type of connec­tion
    Plug-in connec­tion
  • Mounting type
    Screw mounting, Claw mounting
Equip­ment
  • Connect­or/plug type socket outlet
    SCHUKO
  • Rotated central insert
    No
  • With hinged lid
    No
  • With round protective earth pin
    No
  • With signal lamp
    No
  • With lock
    No
Accessories
  • Has labelling field
    No
Capa­city
  • Number of modules
    3
Safety
  • With enhanced contact protec­tion
    No
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP20
Func­tions
  • With orient­a­tion lighting
    No
  • With func­tion lighting
    No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration 47661909
PDF
Hager RoHS report 47661909
PDF

Downloads

  • Image 47661909 | Hager

    Product Image 47661909

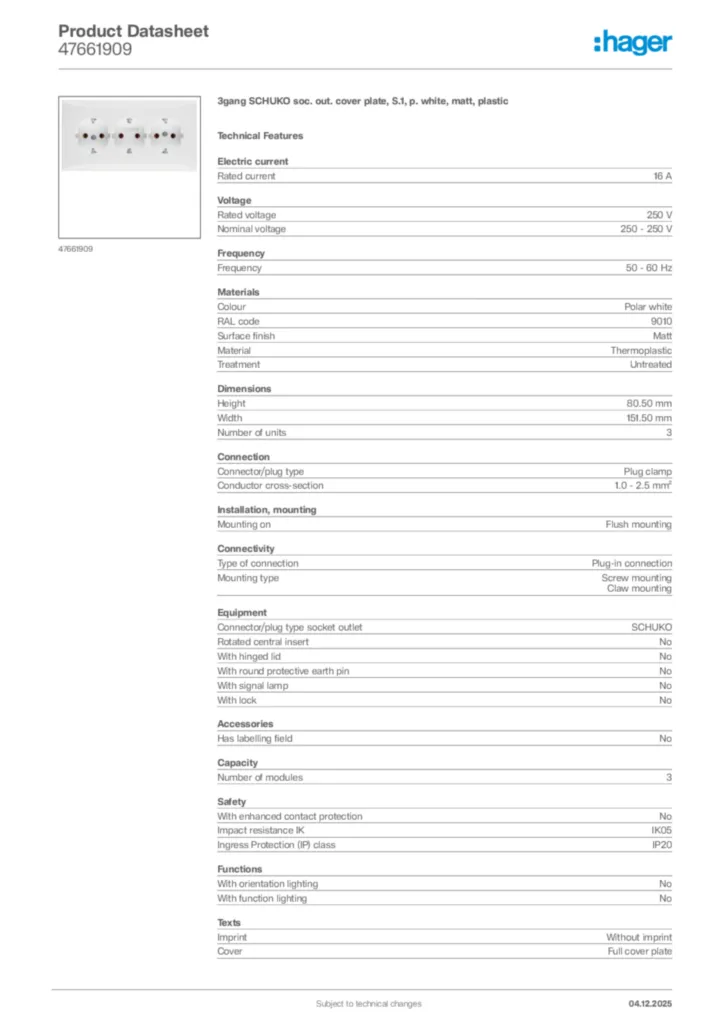

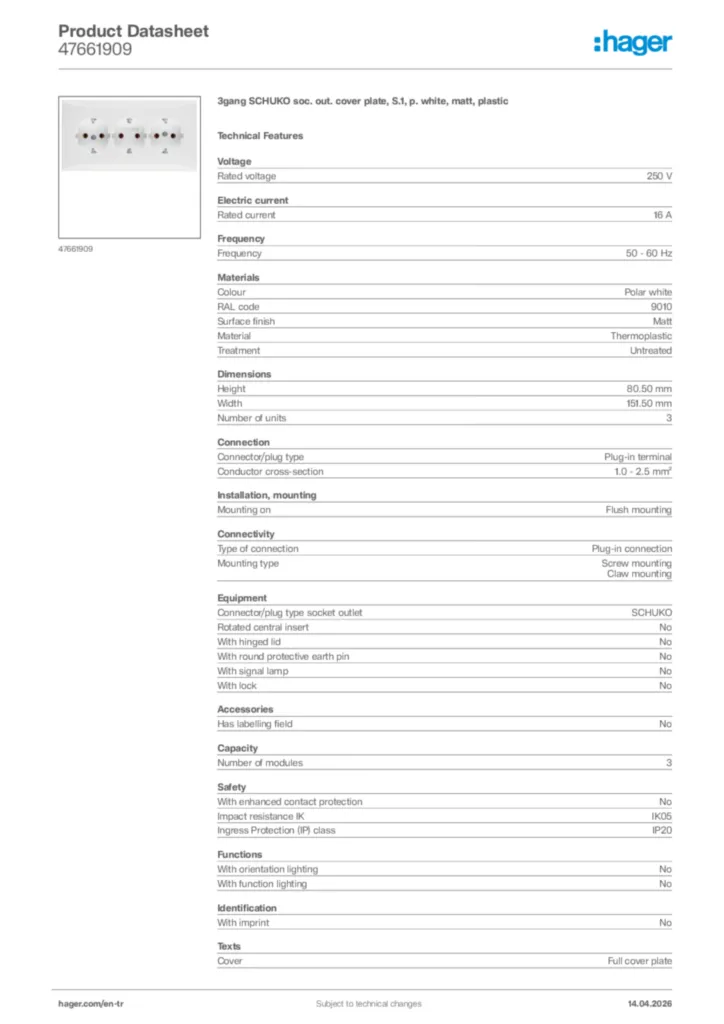

  • Product datasheet
