SCHUKO soc.out.,enhncd contact prot.,mounting orient. var. in 45°step,1930/glass 475501
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 16 products available
Referenced by
-
138169Frame 1gang, 1930 Porzellan, porcelain, p. white glossy
-
138165Frame 1gang, 1930 Porzellan, porcelain, black glossy
-
1091Glass frame 1gang, clear glossy
-
109300Glass centre frame, clear glossy
-
109200Glass end frame, clear glossy
-
138159Centre frame, 1930, p. white glossy
-
138151Centre frame, 1930, black glossy
-
138149Eend frame, 1930, p. white glossy
-
138141End frame, 1930, black glossy
-
138109Frame 1gang, 1930, p. white glossy
-
138101Frame 1gang, 1930, black glossy
-
138209Frame, 1gang for centre plate Ø 58 mm, 1930, p. white glossy
-
138201Frame, 1gang for centre plate Ø 58 mm, 1930, black glossy
-
138129Frame 2gang, 1930, p. white glossy
-
138121Frame 2gang, 1930, black glossy
-
138139Frame 3gang, 1930, p. white glossy
Technical properties
Voltage
-
Rated voltage250 V
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourBlack
-
RAL code9005
-
Surface finishGlossy
-
MaterialDuroplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth42 mm
-
Number of units1
-
Built-in depth flush-mounted boxes31 mm
-
Built-in depth32 mm
Connection
-
Connector/plug typePlug-in terminal
-
Conductor cross-section1.0 - 2.5 mm²
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertYes
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK02
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
Identification
-
With imprintNo
-
Related SystemsSerie 1930 / Serie Glas
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

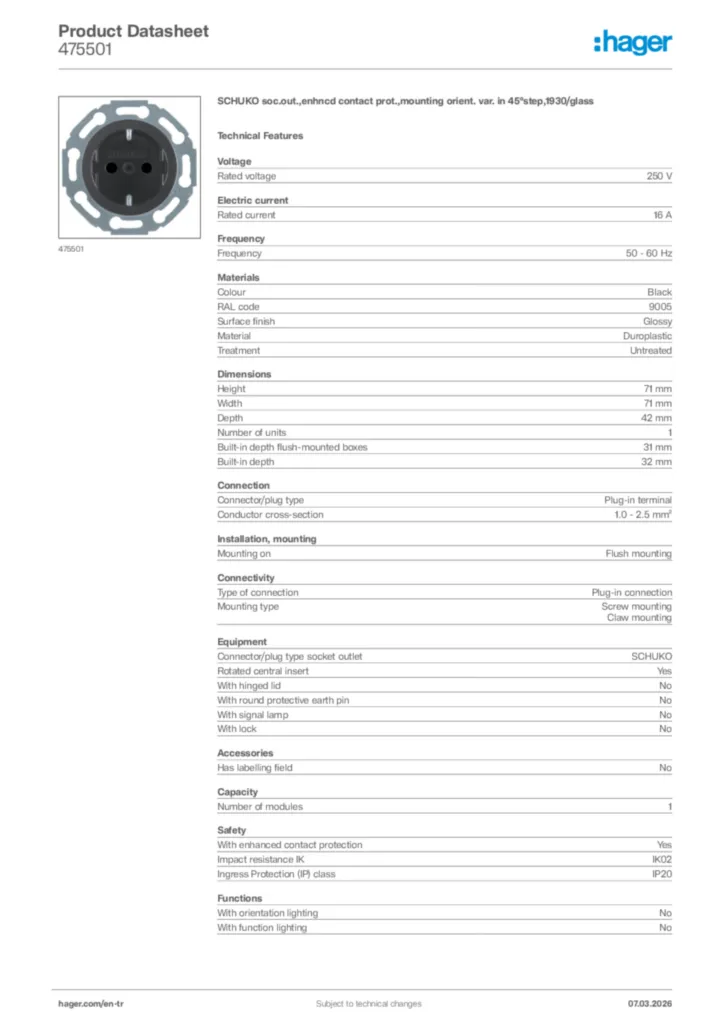

Product datasheet
Hager Product data sheet 475501
SCHUKO soc.out.,enhncd contact prot.,mounting orient. var. in 45°step,1930/glass
PDF -
Declaration of performance
Declaration of performance en-GB 2026-02-20
PDF630,03 kB -
Declaration of conformity
Declaration of conformity International 2023-05-02
PDF451,70 kB
More documentation
