    • Home
    • Catalog
    • Switch ranges - design
    • Berker S.1
    • Sockets - Berker S.1
    • 47438989
    EAN
    4011334277552
    Packaging
    10 Pieces
    • Sockets - Berker S.1

    SCHUKO soc. out., S.1/B.3/B.7, p. white glossy 47438989

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    SCHUKO soc. out., S.1/B.3/B.7, p. white glossy

    47438989

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Referenced by 7 products available

    Referenced by

    • 10238919

      Frame 3gang hor., lab. field, S.1, p. white glossy
      0.00 €  / *
    • 10228919

      Frame 2gang hor., lab. field, S.1, p. white glossy
      0.00 €  / *
    • 10138919

      Frame 3gang vert., lab. field, S.1, p. white glossy
      0.00 €  / *
    • 10128919

      Frame 2gang vert., lab. field, S.1, p. white glossy
      0.00 €  / *
    • 10148989

      Frame 4gang, S.1, p. white glossy
      0.00 €  / *
    • 10128989

      Frame 2gang, S.1, p. white glossy
      0.00 €  / *
    • 10158989

      Frame 5gang, S.1, p. white glossy
      0.00 €  / *

    Technical properties

    Voltage
    • Rated voltage
      250 V
    Elec­tric current
    • Rated current
      16 A
    Frequency
    • Frequency
      50 - 60 Hz
    Mater­ials
    • Colour
      Polar white
    • RAL code
      9010
    • Surface finish
      Glossy
    • Material
      Duro­plastic
    • Treat­ment
      Untreated
    Dimen­sions
    • Height
      71 mm
    • Width
      71 mm
    • Number of units
      1
    • Built-in depth flush-­mounted boxes
      31 mm
    • Built-in depth
      32 mm
    Connec­tion
    • Connect­or/plug type
      Plug-in terminal
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    Connectivity
    • Type of connec­tion
      Plug-in connec­tion
    • Mounting type
      Screw mounting, Claw mounting
    Equip­ment
    • Connect­or/plug type socket outlet
      SCHUKO
    • Rotated central insert
      No
    • With hinged lid
      No
    • With round protective earth pin
      No
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      No
    Capa­city
    • Number of modules
      1
    Safety
    • With enhanced contact protec­tion
      No
    • Impact resist­ance IK
      IK02
    • Ingress Protec­tion (IP) class
      IP20
    Func­tions
    • With orient­a­tion lighting
      No
    • With func­tion lighting
      No
    • Related Systems
      S.x/B.x

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    Certifications and documents

    Socket-outlet 2-gang Wago plug/clamp technique C-Profile in traffic white
    PDF
    48,73 MB

    Downloads

    • Image 47438989 | Hager

      Product Image 47438989

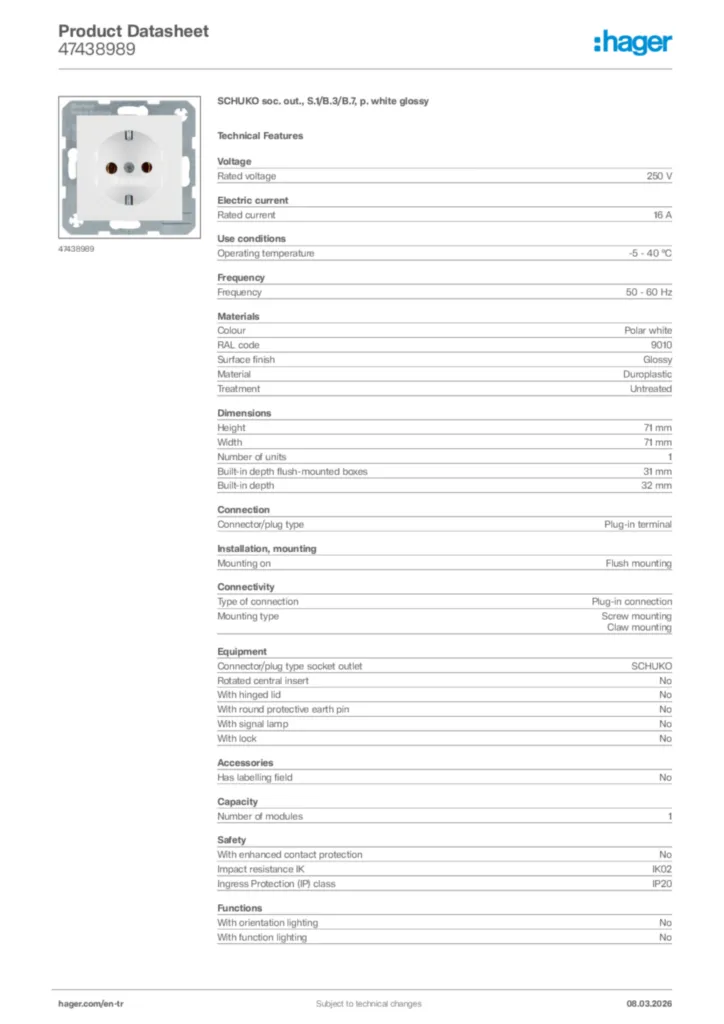

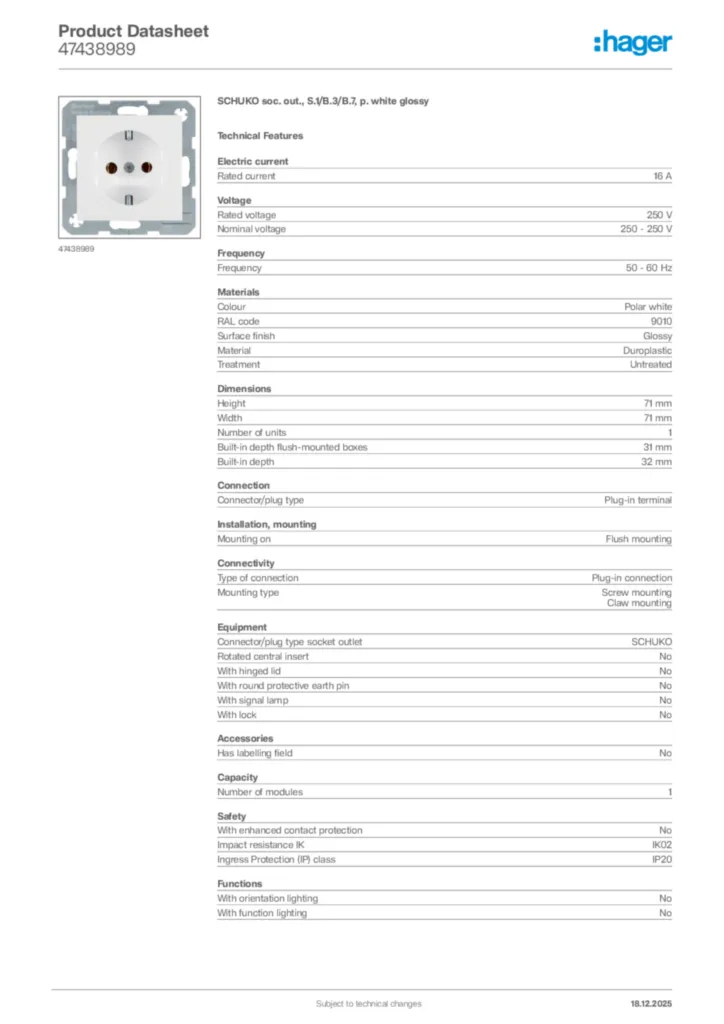

    • Product datasheet

      Image Hager Product data sheet 47438989 | Hager

      Hager Product data sheet 47438989

      SCHUKO soc. out., S.1/B.3/B.7, p. white glossy

      PDF

    • Declaration of performance

      Image Declaration of performance en-GB 2026-02-20 | Hager

      Declaration of performance en-GB 2026-02-20

      PDF
      630,03 kB

    • Declaration of conformity

      Image Declaration of conformity International 2023-05-02 | Hager

      Declaration of conformity International 2023-05-02

      PDF
      451,70 kB
