230 V USB charging socket outlet, 2gang, 3.0A, round supporting ring, anthr. 260215
EAN
4011334467861
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Compatible products
-
Referenced by 42 products available
Referenced by
-
10122009Frame 2gang, R.classic, glass p. white
-
138209Frame, 1gang for centre plate Ø 58 mm, 1930, p. white glossy
-
10112074Frame 1gang, R.classic, al./p. white, luminium anodised
-
10122016Frame 2gang, R.classic, glass black
-
10122074Frame 2gang, R.classic, al./p. white, luminium anodised
-
10112014Frame 1gang, R.classic, stainless steel/p. white, metal matt finish
-
10122014Frame 2gang, R.classic, stainless steel/p. white, metal matt finish
-
10112004Frame 1gang, R.classic, stainless steel/black, metal matt finish
-
10122004Frame 2gang, R.classic, stainless steel/black, metal matt finish
-
10122084Frame 2gang, R.classic, al./black, al. anodised
-
10112016Frame 1gang, R.classic, glass black
-
10112009Frame 1gang, R.classic, glass p. white
-
10122045Frame 2gang, R.classic, black glossy
-
10112045Frame 1gang, R.classic, black glossy
-
10122089Frame 2gang, R.classic, p. white glossy
-
10112089Frame 1gang, R.classic, p. white glossy
-
138139Frame 3gang, 1930, p. white glossy
-
138121Frame 2gang, 1930, black glossy
-
138129Frame 2gang, 1930, p. white glossy
-
138201Frame, 1gang for centre plate Ø 58 mm, 1930, black glossy
Technical properties
Connectivity
-
Type of connectionScrew terminal
Voltage
-
Input voltage230 - 230 V
-
Output voltage5 - 5 V
Dimensions
-
Built-in depth32 mm
-
Built-in depth flush-mounted boxes34 mm
Equipment
-
Number of outputs2
Accessories
-
Has labelling fieldNo
-
With miniature fuseNo
Materials
-
ColourAnthracite
-
RAL code7021
-
Surface finishMatt
Power
-
Output power15 W
-
Power consumption standby0.15 W
Electric current
-
Rated current0.20 A
-
Output current3,000 mA
Texts
-
Connectors jacksWith 2 USB sockets type A
-
FuseShort-circuit and overload-proof (electronic fuse)
-
Type of connectionWith screw terminals
-
ProtectionWithout enhanced contact protection
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

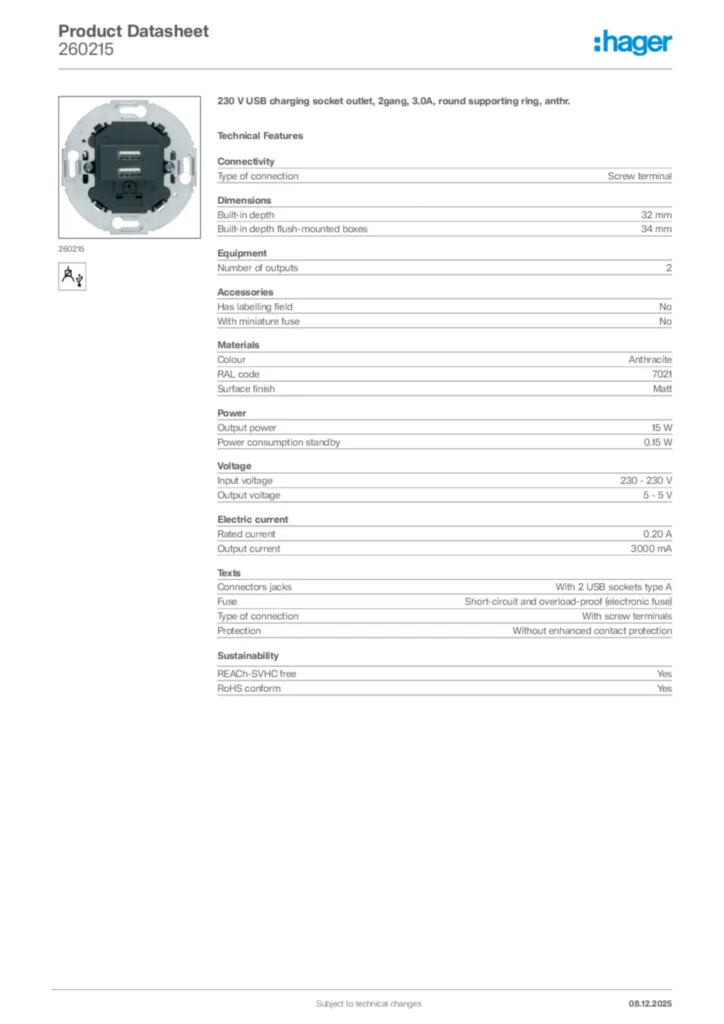

Hager Product data sheet 260215
230 V USB charging socket outlet, 2gang, 3.0A, round supporting ring, anthr.
PDF -
Installation manual
Manual for 2602xx-92610xx-92620xx - 230 V USB charging socket (DE-EN-NL, 2020-09)
Installation manual en-GB, de-DE, nl-NL 2015-02-02
PDF2,67 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-11-29
PDF178,20 kB
Declaration of conformity
Declaration of conformity International 2022-12-16
PDF182,67 kB
Declaration of conformity International 2021-06-16
PDF112,25 kB
