Thermostat, change-over contact, centre plate, Q.x, ant. velvety, lacq. 20266086
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 65 products available
Referenced by
-
10526099Frame 2gang vert., lab. field, Q.3, p. white velvety
-
10116045Contrast frame, 1gang Q.1 anthracite, velvety
-
10136084Frame 3gang Q.1 alu velvety, lacquered
-
10126084Frame 2gang Q.1 alu velvety, lacquered
-
10536094Frame 3gang with labelling field vertical Q.3 alu velvety, lacquered
-
10526094Frame 2gang with labelling field vertical Q.3 alu velvety, lacquered
-
10236094Frame 3gang with labelling field horizontal Q.3 alu velvety, lacquered
-
10226094Frame 2gang with labelling field horizontal Q.3 alu velvety, lacquered
-
10516094Frame 1gang with labelling field Q.3 alu velvety, lacquered
-
10536099Frame 3gang vert., lab. field, Q.3, p. white velvety
-
10116089Frame 1gang, Q.1, p. white velvety
-
10236099Frame 3gang hor., lab. field, Q.3, p. white velvety
-
10226099Frame 2gang hor., lab. field, Q.3, p. white velvety
-
10516099Frame 1gang, lab. field, Q.3, p. white velvety
-
10156094Frame 5gang Q.3 alu velvety, lacquered
-
10156096Frame 5gang, Q.3, ant. velvety, lacq.
-
10156099Frame 5gang, Q.3, p. white velvety
-
10256014Frame 5gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10246014Frame 4gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10236014Frame 3gang with labelling field horizontal Q.1 alu velvety, lacquered
Technical properties
Architecture
-
Control/operation elementRotative
Electric current
-
Rated current5 A
-
Max. switching current10 A
Voltage
-
Nominal voltage230-230 V
Power supply
-
Supply voltage230 V AC
Frequency
-
Frequency50 - 60 Hz
Settings
-
Comfort temperature setpoint5 - 30 °C
Materials
-
ColourAnthracite
-
RAL code7016
-
Surface finishVelvety
-
MaterialMetal, Plastic
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth47.50 mm
Screen
-
With displayNo
Equipment
-
Switching temperature difference0.50 K
-
Type of thermostatRoom thermostat
-
Type of probeBimetal
-
With heaterYes
Connection
-
Type of contacts1x changeover
Safety
-
Ingress Protection (IP) classIP20
Compatibility
-
Type of HVAC controlHeating, Cooling
Use conditions
-
Energy efficiency classI (1%)
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

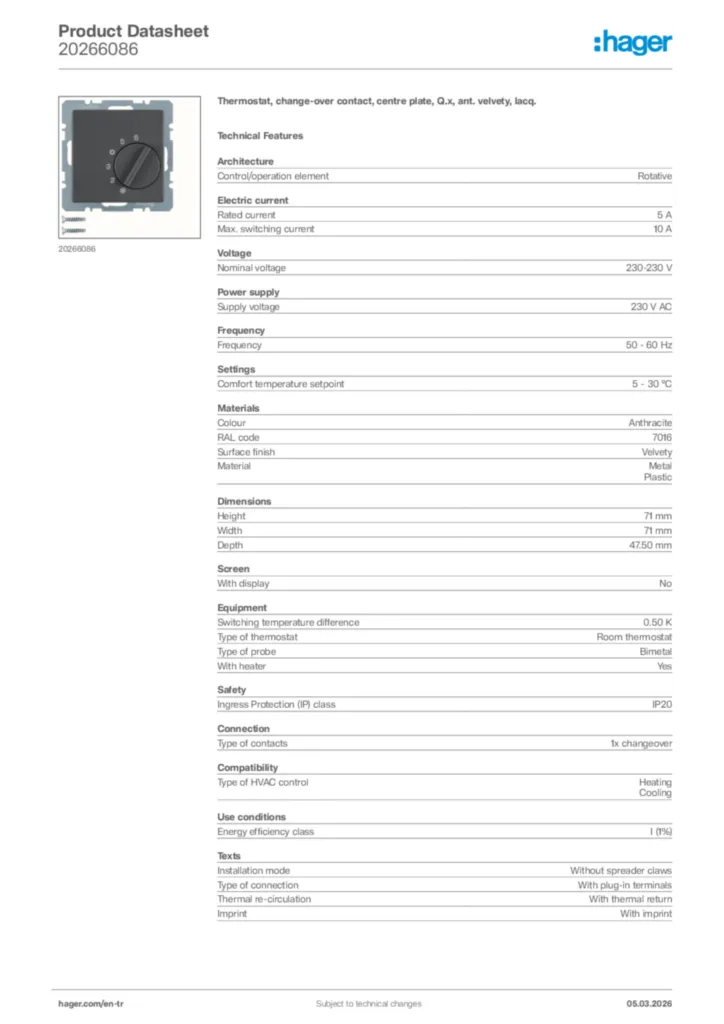

Hager Product data sheet 20266086
Thermostat, change-over contact, centre plate, Q.x, ant. velvety, lacq.
PDF -
Installation manual
Manual for 2026xx-2030xx-2031xx - Thermostat, with centre plate, change-over contact/NC contact, 24 V AC/DC (EN, 2014-08)
Installation manual en-GB 2015-08-27
PDF495,19 kB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2023-01-26
PDF279,70 kB
Declaration of Conformity
Declaration of conformity International 2021-09-15
PDF278,49 kB
