Relay switch centre plate for hotel card, K.1, p. white glossy 16417119
EAN
4011334404811
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
505102
Push-button insert for hotel card switch cover, Module inserts
Compatible products
-
Referenced by 20 products available
Referenced by
-
13337009Frame 3gang vert., K.1, p. white glossy
-
13537006Frame 5gang vert., K.1, ant. matt, lacq.
-
13437006Frame 4gang vert., K.1, ant. matt, lacq.
-
13337006Frame 3gang vert., K.1, ant. matt, lacq.
-
13937006Frame 5gang hor., K.1, ant. matt, lacq.
-
13837006Frame 4gang hor., K.1, ant. matt, lacq.
-
13737006Frame 3gang hor., K.1, ant. matt, lacq.
-
13637006Frame 2gang hor., K.1, ant. matt, lacq.
-
13537009Frame 5gang vert., K.1, p. white glossy
-
13437009Frame 4gang vert., K.1, p. white glossy
-
13097009Frame l. cut-out, K.1, p. white glossy
-
13937009Frame 5gang hor., K.1, p. white glossy
-
13837009Frame 4gang hor., K.1, p. white glossy
-
13737009Frame 3gang hor., K.1, p. white glossy
-
13237006Frame 2gang vert., K.1, ant. matt, lacq.
-
13137006Frame 1gang, K.1, ant. matt, lacq.
-
13237009Frame 2gang vert., K.1, p. white glossy
-
13097006Frame l. cut-out, K.1, ant. matt, lacq.
-
13137009Frame 1gang, K.1, p. white glossy
-
13637009Frame 2gang hor., K.1, p. white glossy
Technical properties
Electric current
-
Switching current10 A
-
Momentary contact current10 A
Voltage
-
Rated voltage230 V
Frequency
-
Frequency50 - 60 Hz
Architecture
-
Control/operation elementHotel card
-
Number of poles1
Power
-
230 V incandescent and halogen lamp1,500 W
-
Fluorescent lamps in duo circuit1,500 W
Materials
-
ColourPolar white
-
Surface finishGlossy
-
MaterialMetal, Plastic
-
TreatmentUntreated
-
TransparentNo
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth58.60 mm
-
Built-in depth32 mm
-
Built-in depth flush-mounted boxes35 mm
Installation, mounting
-
Mounting onFlush mounting
Controls and indicators
-
With feedback signal contactNo
Safety
-
Ingress Protection (IP) classIP20
Accessories
-
Has labelling fieldNo
-
Related SystemsK.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

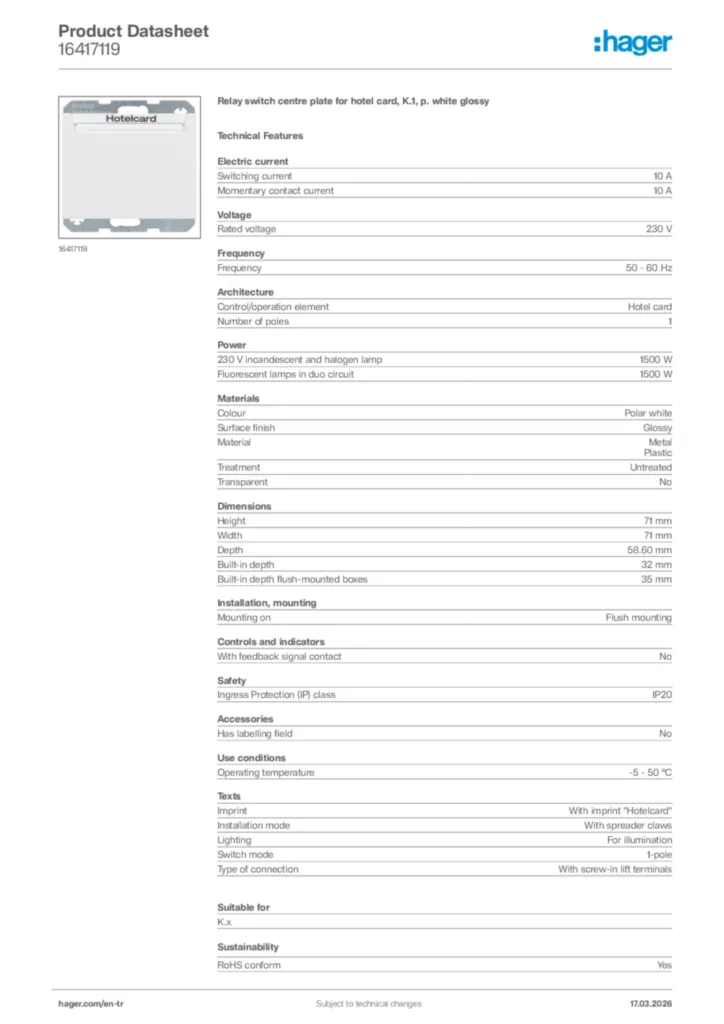

Hager Product data sheet 16417119
