Centre plate for cable out., K.1/K.5, al., matt, lacq. 10057003
EAN
4011334377429
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Compatible products
-
Referenced by 22 products available
Referenced by
-
13337003Frame 3gang vert., K.5, al., al. anodised
-
4468Cable out. low inst. depth, com-tech
-
13537004Frame 5gang vert., K.5, stainless steel, metal matt finish
-
13437004Frame 4gang vert., K.5, stainless steel, metal matt finish
-
13337004Frame 3gang vert., K.5, stainless steel, metal matt finish
-
13937004Frame 5gang hor., K.5, stainless steel, metal matt finish
-
13837004Frame 4gang hor., K.5, stainless steel, metal matt finish
-
13737004Frame 3gang hor., K.5, stainless steel, metal matt finish
-
13637004Frame 2gang hor., K.5, stainless steel, metal matt finish
-
13537003Frame 5gang vert., K.5, al., al. anodised
-
13437003Frame 4gang vert., K.5, al., al. anodised
-
13097003Frame l. cut-out, K.5, al., al. anodised
-
13937003Frame 5gang hor., K.5, al., al. anodised
-
13837003Frame 4gang hor., K.5, al., al. anodised
-
13737003Frame 3gang hor., K.5, al., al. anodised
-
13637003Frame 2gang hor., K.5, al., al. anodised
-
4470Cable out., com-tech
-
13237004Frame 2gang vert., K.5, stainless steel, metal matt finish
-
13237003Frame 2gang vert., K.5, al., al. anodised
-
13137004Frame 1gang, K.5, stainless steel, metal matt finish
Technical properties
Connection
-
Number of connections0
Materials
-
ColourAluminium
-
RAL code9006
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentVarnished
Dimensions
-
Height55.50 mm
-
Width70.50 mm
-
Depth18 mm
Connectivity
-
Mounting typeScrew mounting
Safety
-
Ingress Protection (IP) classIP20
-
Impact resistance IKIK05
-
Related SystemsK.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

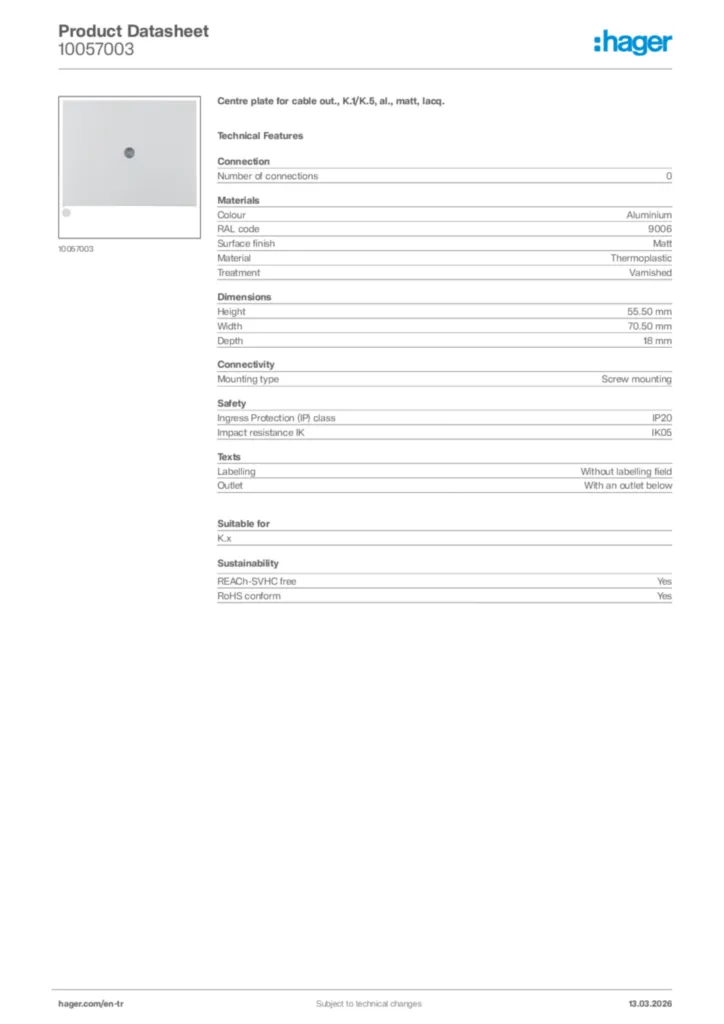

Product datasheet
Hager Product data sheet 10057003
Centre plate for cable out., K.1/K.5, al., matt, lacq.
PDF -
Declaration of conformity
EU Declaration of conformity
Declaration of conformity en-GB 2024-11-28
PDF277,73 kB
