FIN DGPO 10A WBQP2S
EAN
3250617003933
Packaging
10 PCEs
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Configuration
-
Number of modules2
Main electrical features
-
Nominal voltage250 V AC
-
Frequency50 Hz
Electric current
-
Rated current10 A
Materials
-
Colourwhite
-
Surface appearanceglossy
Installation, mounting
-
Entriescable entries bevelled
-
Mounting typeflush-mounted
-
Installation modefor screw fastening
Connection
-
Type of connectionwith screw terminals
Scope of delivery
-
Scope of deliverysupplied with standard tapered point 32 mm fixing screws
Equipment
-
Number of socket outlets switchable2
-
With transparent product label holderNo
Safety
-
IK protection code against mecanical impactsIK08
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeNo
-
ProtectionEnhanced contact protection
Identification
-
Main design lineFinesse
Downloads
-
Product image
-
User brochure
Make the Switch Brochure
PDF1 MB -
Flyer
Make The Switch DL Brochure
PDF677 KB -

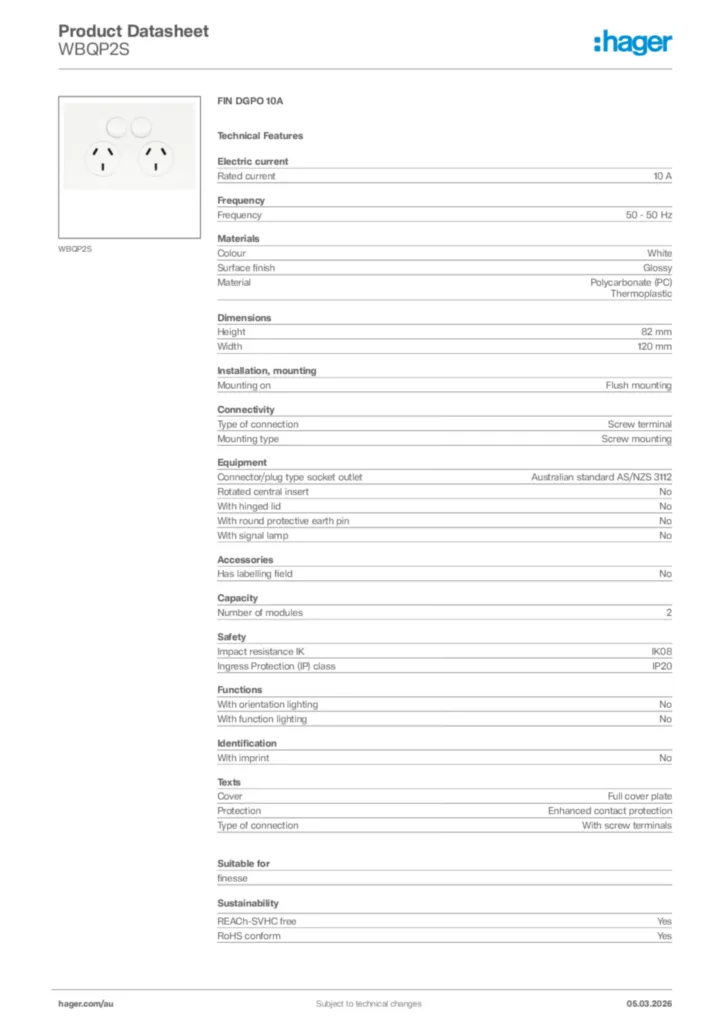

Product data sheet
Switches and Sockets Cutout Dimensions
PDF105 KB -
RoHS report
REACH-declaration 2023-10-20 (english)
PDF32 KB
RoHS-declaration 2023-10-20 (english)
PDF32 KB
More documentation
