    The Hager push dimmer trailing-edge mechanism delivers smooth phase cut-off control for 230 V LED loads from 3-250 W. A single push button offers intuitive on/off and dimming. Compact 1‑module design in white PC, with 0.10 W standby. Electronic fuse protects against overloads/shorts. Quick RotoLoc installation with screw terminals. Expandable via extension input for slave push-button WBMESL. Operates -5 to 45 °C. Designed for reliable installation in residential and commercial switchboards.
    EAN
    3250617009140
    Packaging
    5
    • Mech­an­isms
    • Mech­an­isms
    • Mech­an­isms
    • Mech­an­isms
    • See more

    Hager Push dimmer trailing-edge 3-250W LED 230V single button 1 module WBMDUPB

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Hager Push dimmer trailing-edge 3-250W LED 230V single button 1 module

    WBMDUPB

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Suitable with 8 products available

    Suitable with

    • WBSSP1-MW

      Silhouette 1G switch plate, no mech MW
      EUR 0.00  / *
    • WBSSP2-MW

      Silhouette 2G switch plate, no mech MW
      EUR 0.00  / *
    • WBSSP3-MW

      Silhouette 3G switch plate, no mech MW
      EUR 0.00  / *
    • WBQSP1-MW

      FIN 1 Gang Switch Plate MW
      EUR 0.00  / *
    • WBQSP2-MW

      FIN 2 Gang Switch Plate MW
      EUR 0.00  / *
    • WBSSP1

      Silhouette 1G switch plate, no mech
      EUR 0.00  / *
    • WBSSP2

      Silhouette 2G switch plate, no mech
      EUR 0.00  / *
    • WBSSP3

      Silhouette 3G switch plate, no mech
      EUR 0.00  / *

    Technical properties

    Frequency
    • Frequency
      50 - 50 Hz
    Mater­ials
    • Colour
      White
    • Material
      Polycar­bonate (PC)
    Dimen­sions
    • Height
      24 mm
    • Width
      24 mm
    • Depth
      51 mm
    Archi­tec­ture
    • Control/­op­er­a­tion element
      Single push button
    Power
    • Power consump­tion standby
      0,10 W
    Lighting
    • Dimmable 230 V LED lamp
      3 - 250 W
    • LED lamp power
      250 W
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 45 °C
    Capa­city
    • Number of modules
      1
    Texts
    • Dimming prin­ciple
      Phase cut-off
    • Fuse
      Short-­cir­cuit and over­load-­proof (elec­tronic fuse)
    • Install­a­tion mode
      Roto­Loc®
    • Type of connec­tion
      With screw terminals
    • Exten­sion unit input
      With exten­sion unit input for slave push-button WBMESL
    • Oper­a­tion and control
      No Bluetooth inter­face
    Equip­ment
    • Substa­tion input
      Yes

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    REACH declaration WBMDUPB
    PDF
    Hager RoHS report WBMDUPB
    PDF

    Downloads

    • Product image

      Image WBMDUPB | Hager Australia

      Product Image WBMDUPB

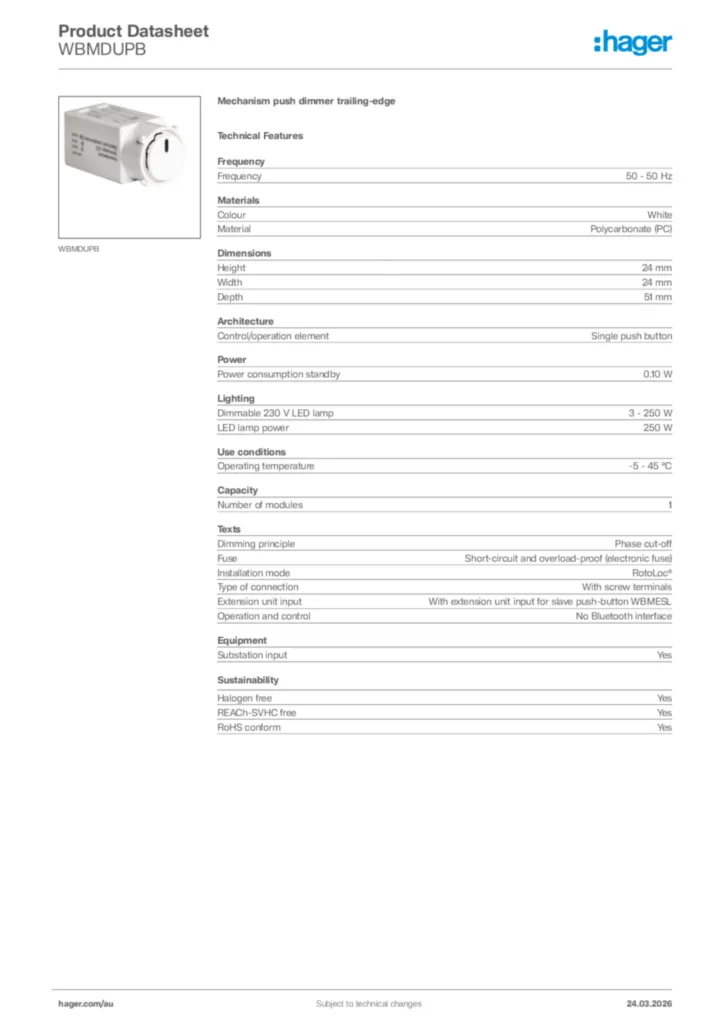

    • Product datasheet

      Image Hager Product data sheet WBMDUPB | Hager Australia

      Hager Product data sheet WBMDUPB

      Mechanism push dimmer trailing-edge

      PDF

    • Installation manual

      Image WBMDUPB Push Button Dimmer User Instructions | Hager Australia

      WBMDUPB Push Button Dimmer User Instructions

      Installation manual en-GB 2023-08-07

      PDF
      740,47 kB
