    Hager The Hager Mechanism 10A rotary AUTO/MAN provides reliable manual/automatic selection for lighting, ventilation, or control circuits. Rated 10A at 250 V, it fits flush mounting with a compact 45 mm depth. IP20 ensures indoor safety. The smooth rotative actuator offers clear AUTO/MAN positions. Quick, secure RotoLoc connection with screw terminals. White finish blends with standard décor.
    EAN
    3250617594400
    Packaging
    10
    • Mech­an­isms
    • Mech­an­isms
    • Mech­an­isms
    • Mech­an­isms
    • See more

    Rotary selector mechanism 10A 250V Auto/Man Flush RotoLoc IP20 White WBM10RAM

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Rotary selector mechanism 10A 250V Auto/Man Flush RotoLoc IP20 White

    WBM10RAM

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Suitable with 3 products available

    Suitable with

    • WBSSP1

      Silhouette 1G switch plate, no mech
      EUR 0.00  / *
    • WBSSP2

      Silhouette 2G switch plate, no mech
      EUR 0.00  / *
    • WBSSP3

      Silhouette 3G switch plate, no mech
      EUR 0.00  / *

    Technical properties

    Voltage
    • Nominal voltage
      250 - 250 V
    Elec­tric current
    • Rated current
      10 A
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Dimen­sions
    • Depth
      45 mm
    Mater­ials
    • Colour
      White
    Archi­tec­ture
    • Control/­op­er­a­tion element
      Rotative
    Connec­tion
    • Connect­or/plug type
      Roto­Loc®
    Texts
    • Type of connec­tion
      With screw terminals

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager RoHS report WBM10RAM
    PDF

    Downloads

    • Product image

      Image WBM10RAM | Hager Australia

      Product Image WBM10RAM

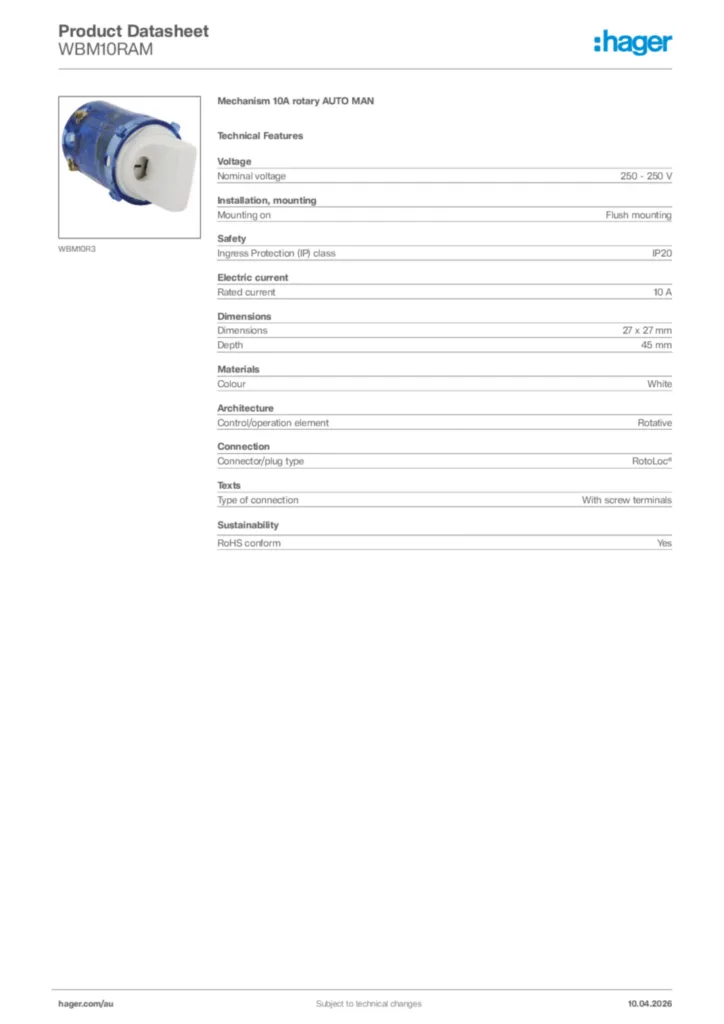

    • Product datasheet

      Image Hager Product data sheet WBM10RAM | Hager Australia

      Hager Product data sheet WBM10RAM

      Mechanism 10A rotary AUTO MAN

      PDF

    • Product data sheet

      Image WBM10RAM Auto / Manual Rotary Mechanism | Hager Australia

      WBM10RAM Auto / Manual Rotary Mechanism

      Product data sheet en-GB 2016-03-16

      PDF
      141,58 kB
